| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FLY, AIRWLOF or OEM |
| Certification: | CE |
| Model Number: | K5004 (Nitrile), K5000 (fluororubber) |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T in advance,Western Union,Paypal,Credit card |
| Supply Ability: | 2000 pcs |
| Order Code: | K5004(Nitrile),K5000(fluororubber) | Material: | NBR/fluororubber |
|---|---|---|---|
| Port Zide: | DN50 DN62 | Fit Valve: | CA50T RCA50T CA62T RCA62T |
| Diameter: | 186MM | Lifespan: | 1 Million Cycles |
| High Light: | K5004 FLY/AIRWOLF Repair Kits,K5000 FLY/AIRWOLF Repair Kits,186MM Air Pulse Valve Diaphragm |
||

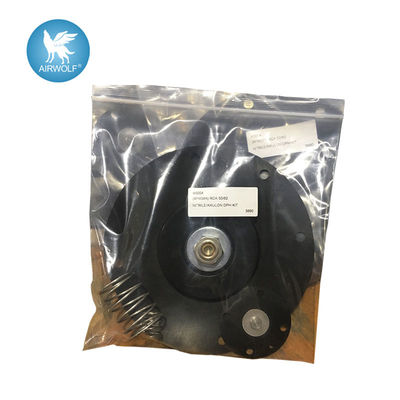

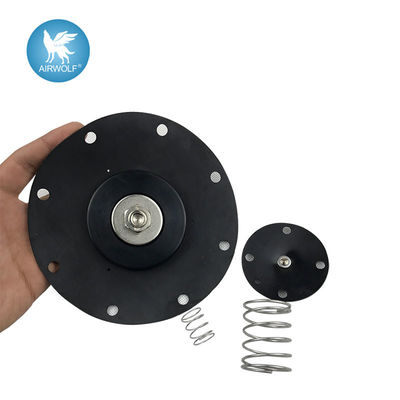

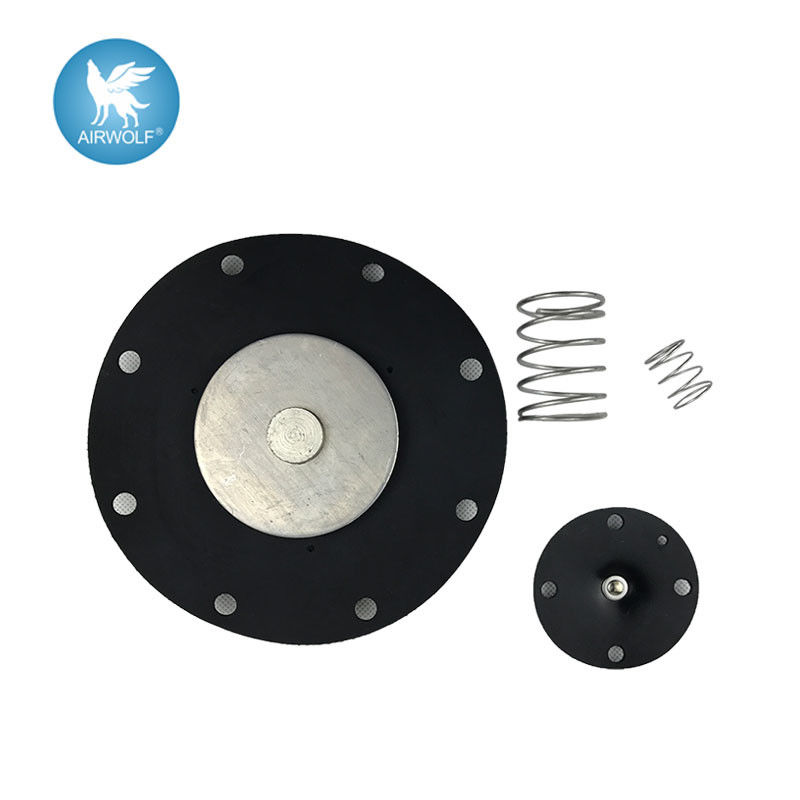

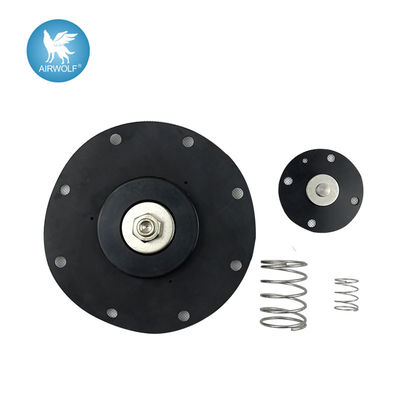

Ordering Code: K5004 (Nitrile), K5000 (fluororubber)
Fit for: CA-50T,RCA-50T, CA-62T,RCA-62T
Description:
1. The diaphragm repair kits is for pulse jet valves CA-50T,RCA-50T, CA-62T,RCA-62T
2. Material: NBR/fluororubber
3. This repair kit has large air - outlet , so the air can get throgh very smoothly.
4. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
5. K5004(Nitrile) K5000(fluororubber) repair kit has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.
6. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.
7. Its lifespan is about 1 million cycles.
Material:nitrile,FKM
Pressure:0.5-1Mpa
Size:2" and 2.5"
Temperature:-40℃ +100℃
Lifespan:1 million cycles
Warranty:1 year
Model:K5004(Nitrile),K5000(FKM)
1. First, Confirm the pulse valve in good condition and then installed
2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.
5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.
Drawings size:
1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping
2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
3 . Integral pilot operated valves satisfy all relevant EC directives
4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.
5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment |
5) Loading inspection, and send loading photos before shipment.
|
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
