17mm FESTO ISO Cylinder DSBC-32-30-PPVA-N3 2123070 Pneumatic Air Cylinders

Product Details:

Brand Name:	FESTO
Model Number:	DSBC-32-30-PPVA-N3

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD30-50
Packaging Details:	plastic bag, carton，OPP bag
Delivery Time:	8-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Type:	DSBC-32-30-PPVA-N3	Part No:	2123070
Brand:	FESTO	Corrosion Resistance Class CRC:	2 - Moderate Corrosion Stress
Cushioning Length:	17mm	Weight:	546 G
High Light:	17mm FESTO ISO Cylinder , 2123070 Pneumatic Air Cylinders , Pneumatic Cushioning FESTO ISO Cylinder

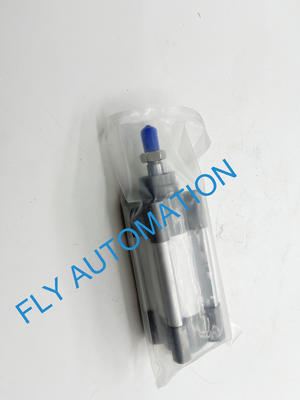

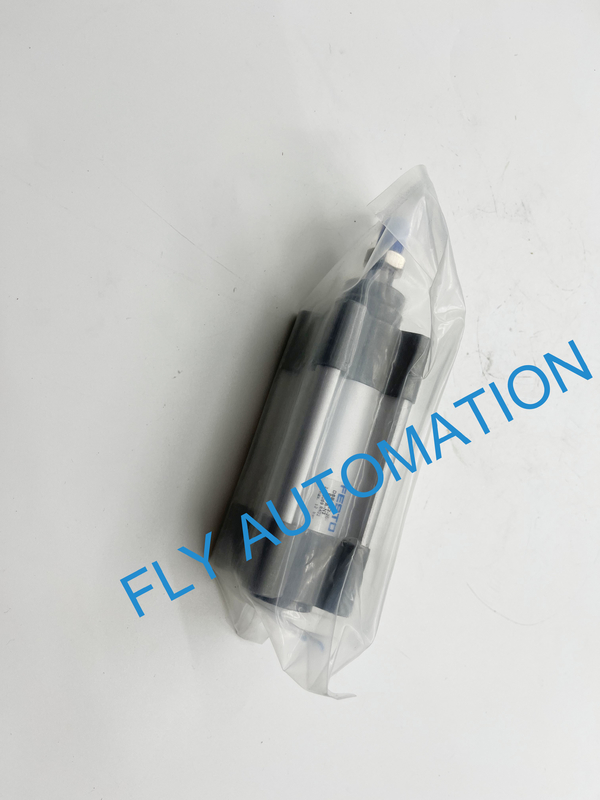

FESTO ISO cylinder DSBC-32-30-PPVA-N3 2123070 Pneumatic Air Cylinders

About product

Conforms to standard:ISO 15552

Position detection:Via proximity switch

Variants:Piston rod at one end

Ambient temperature: -20°C-80°C

Cushioning length:17 mm

Technical Data

Stroke	30 mm
Piston diameter	32 mm
Piston rod thread	M10x1.25
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Symbol	00991235
Variants	Piston rod at one end
Mode of operation	Double-acting
Corrosion resistance class CRC	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 6 according to ISO 14644-1
Ambient temperature	-20°C-80°C
Cushioning length	17 mm
Basic weight for 0 mm stroke	465 g
Additional weight per 10 mm stroke	27 g
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Die-cast aluminium, coated
Material piston seal	TPE-U(PU)
Material piston	Wrought aluminium alloy
Material piston rod	High-alloy steel
Material piston rod wiper	TPE-U(PU)
Buffer seal material	TPE-U(PU)
Cushioning piston material	POM
Material cylinder barrel	Smooth-anodised wrought aluminium alloy
Material nut	Galvanised steel
Material bearing	POM
Material collar screws	Galvanised steel

Dimensions – Variants
