| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | HEE-D-MIDI-24 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-100 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-12working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | HEE-D-MIDI-24 | Part No: | 172959 |
|---|---|---|---|
| Brand: | FESTO | Weight: | 500 G |
| Corrosion Resistance Class CRC: | 2 - Moderate Corrosion Stress | Pneumatic Connection, Port 3: | G1/4 |
| High Light: | HEE-D-MIDI-24 Pneumatic Valve,172959 Pneumatic Off Valve,G1/4 Pneumatic On Valve |
||
About product
1.Electric on/off valve for pressurising and exhausting pneumatic systems.
2.With solenoid coil, without plug socke.
3.Solenoid head can be repositioned by 4 x 90°.
Technical Data
| Design | Piston gate valve |
| Type of actuation | Electric |
| Sealing principle | Soft |
| Exhaust-air function | Without flow control option |
| Manual override | Detenting |
| Type of reset | Mechanical spring |
| Type of piloting | Pilot actuated |
| Symbol | 00991008 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant |
| Type of mounting | In-line installation With accessories |
| Mounting position | optional |
| Flow direction | Non-reversible |
| Product weight | 500 g |
| Pneumatic connection, port 3 | G1/4 |
| Electrical connection | Type C Plugs To DIN EN 175301-803 |
| Signal status display | With accessories |
| Material seals | NBR |
| Material housing | Die-cast aluminium |

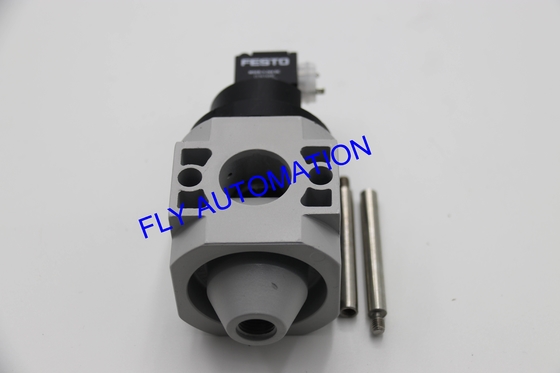

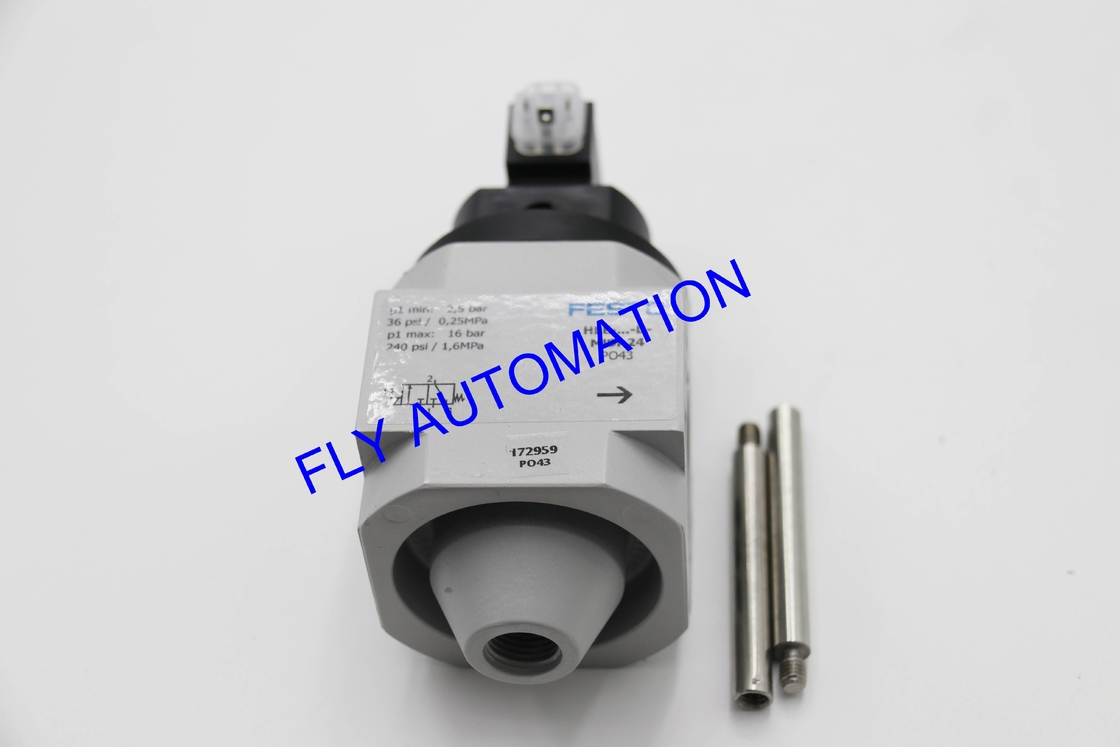

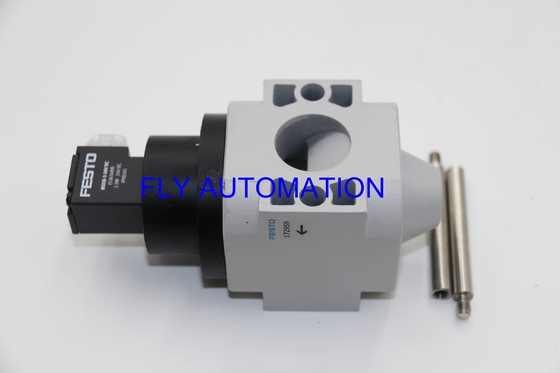

Picture about package
There are so many models . Please contact with me!
