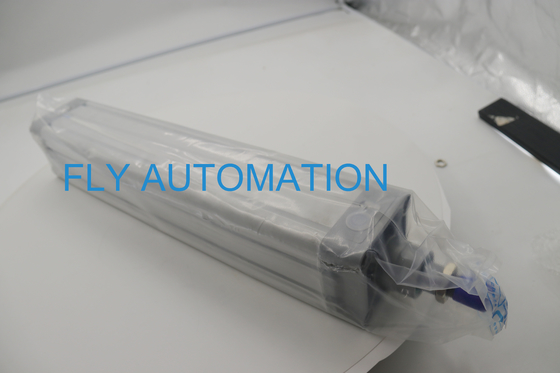

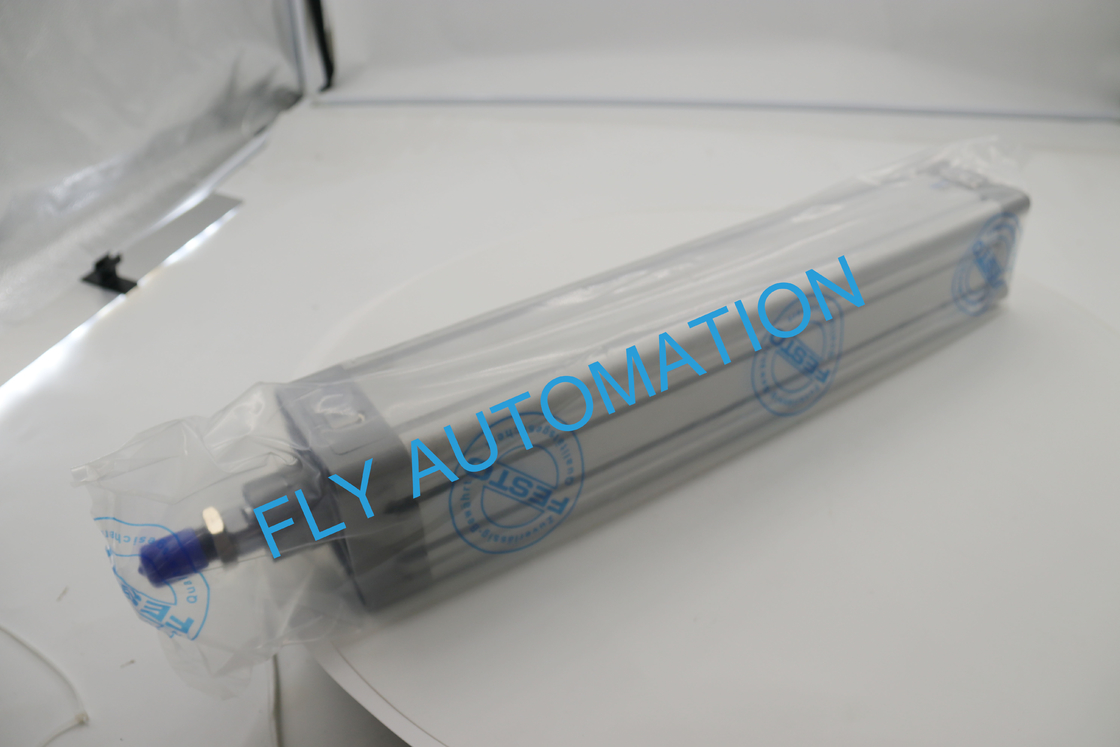

163442 Pneumatic Air Cylinders FESTO ISO Cylinder DNC-80-320-PPV-A

163442 Pneumatic Air Cylinders FESTO ISO Cylinder DNC-80-320-PPV-A

  • 163442 Pneumatic Air Cylinders FESTO ISO Cylinder DNC-80-320-PPV-A
  • 163442 Pneumatic Air Cylinders FESTO ISO Cylinder DNC-80-320-PPV-A
163442 Pneumatic Air Cylinders FESTO ISO Cylinder DNC-80-320-PPV-A
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-80-320-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD80-100
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 10-15working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Type: DNC-80-320-PPV-A Part No: 163442
Brand: FESTO Stroke: 320 Mm
Mode Of Operation: Double-acting Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
Highlight:

163442 Pneumatic Air Cylinders

,

Corrosion Resistant FESTO ISO Cylinder

,

FESTO ISO Cylinder 320mm

FESTO ISO cylinder DNC-80-320-PPV-A 163442 Pneumatic Air Cylinders

About product

Piston rod thread:M20x1.5

Mounting position:optional

Piston-rod end:Male thread

Mode of operation:Double-acting

LABS (PWIS) conformity:VDMA24364-B1/B2-L



Technical Data

Stroke 320mm
Piston diameter 80 mm
Piston rod thread M20x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 32 mm
Basic weight for 0 mm stroke 2790 g
Additional weight per 10 mm stroke 106 g
Pneumatic connection G3/8
Note on materials RoHS-compliant
Material cove rDie-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barrel Wrought aluminium alloy Smooth anodised





Attention

1.Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2.Any order is welcome. we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions.
please feel free to contact us.

There are so many kinds. Please contact with me!
