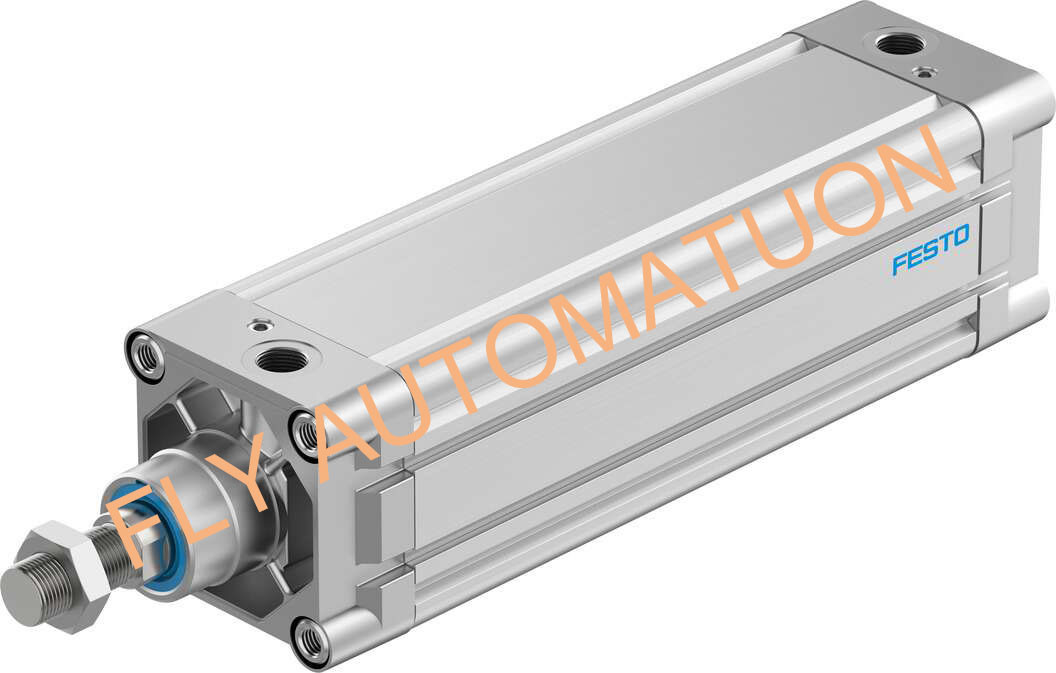

163403 ISO Pneumatic Air Cylinders DNC-63-50-PPV-A GTIN4052568134242

163403 ISO Pneumatic Air Cylinders DNC-63-50-PPV-A GTIN4052568134242

  • 163403 ISO Pneumatic Air Cylinders DNC-63-50-PPV-A GTIN4052568134242
163403 ISO Pneumatic Air Cylinders DNC-63-50-PPV-A GTIN4052568134242
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: DNC-63-50-PPV-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD60-80
Packaging Details: plastic bag, carton，OPP bag
Delivery Time: 7-10working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 pcs per month
Contact Now
Detailed Product Description
Part No: 163403 Brand: FESTO
Type: DNC-63-50-PPV-A GTIN: 4052568134242
Piston Diameter: 63 Mm Stroke: 50 Mm
Highlight:

63mm Pneumatic Air Cylinders

,

163403 Pneumatic Air Cylinders

,

Adjustable Compact Pneumatic Cylinder

FESTO ISO cylinder DNC-63-50-PPV-A 163403 GTIN4052568134242 Pneumatic Air Cylinders

About product

The standards-based cylinder DNC can be ordered either using a fixed part number and order reference or using the modular product system. The type codes listed above represent the standards-based cylinders DNC with fixed part number and order reference only. Variants can only be ordered using the modular product system.



Technical Data

Stroke 50 mm
Piston diameter 63 mm
Piston rod thread M16x1.5
Cushioning Pneumatic cushioning, adjustable at both ends
Mounting position optional
Conforms to standard ISO 15552
Piston-rod end Male thread
Design Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991235
Variants Piston rod at one end
Mode of operation Double-acting
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -20°C-80°C
Cushioning length 22 mm
Basic weight for 0 mm stroke 1709 g
Additional weight per 10 mm stroke 73 g
Type of mounting Via female thread With accessories
Pneumatic connection G3/8
Note on materials RoHS-compliant
Material cover Die-cast aluminium Coated
Material seals TPE-U(PU)
Material piston rod High-alloy steel
Material cylinder barre lWrought aluminium alloy Smooth anodised



Other size as below

Type Order no Weight(g) Price
DNC-63-20-PPV-A 1622635 1855 USD60-80
DNC-63-25-PPV-A 163401 1895 USD60-80
DNC-63-30-PPV-A 1922636 1928 USD60-80
DNC-63-40-PPV-A 163402 2001 USD60-80
DNC-63-50-PPV-A 163403 2074 USD60-80
DNC-63-60-PPV-A 1922637 2147 USD60-80
DNC-63-70-PPV-A 1922638 2220 USD60-80
DNC-63-80-PPV-A 163404 2293 USD60-80
DNC-63-100-PPV-A 163405 2439 USD60-80
DNC-63-125-PPV-A 163406 2622 USD60-80
DNC-63-150-PPV-A 1922639 2804 USD60-80
DNC-63-160-PPV-A 163407 2877 USD60-80
DNC-63-200-PPV-A 163408 3169 USD60-80
DNC-63-250-PPV-A 163409 3534 USD60-80
DNC-63-300-PPV-A 1922640 3899 USD60-80
DNC-63-320-PPV-A 163410 4045 USD60-80
DNC-63-400-PPV-A 163411 4629 USD60-80
DNC-63-500-PPV-A 163412 5359 USD60-80

Lateral force Fq as a function of stroke length l
163403 ISO Pneumatic Air Cylinders DNC-63-50-PPV-A GTIN4052568134242

Attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.

There are so many kinds. Hurry to call me!
