| Place of Origin: | China |
| Brand Name: | FESTO |

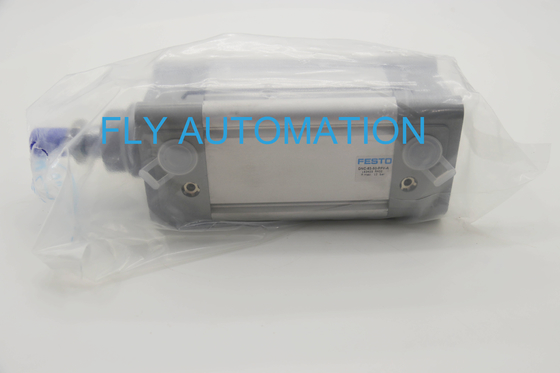

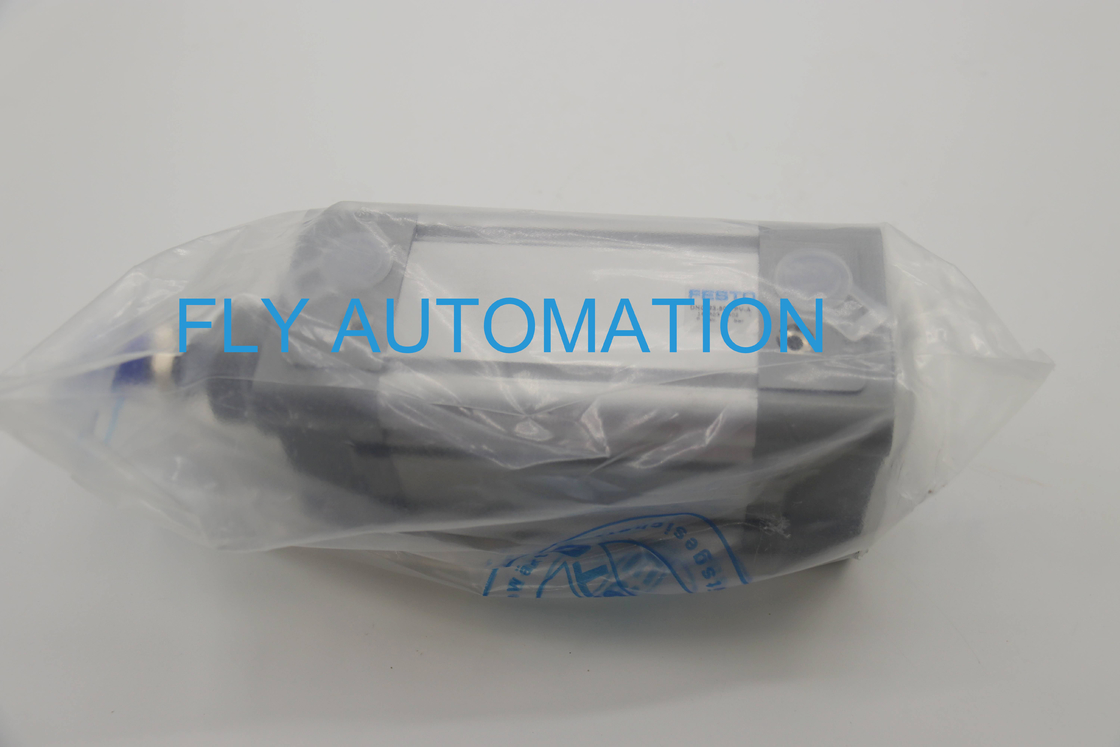

| Model Number: | DNC-63-40-PPV-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD40-50 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 500 pcs per month |
| Type: | DNC-63-40-PPV-A | Part No: | 163402 |
|---|---|---|---|
| Brand: | FESTO | Stroke: | 50 Mm |
| Piston Rod Thread: | M16x1.5 | Cushioning: | Pneumatic Cushioning, Adjustable At Both Ends |
| High Light: | 163402 Pneumatic Air Cylinders,DNC-63-40-PPV-A,50mm Pneumatic Air Cylinders |
||
About product
Color:Silver
Ambient temperature: -20°C-80°C
Conforms to standard:ISO 15552
Corrosion resistance class CRC:2 - Moderate corrosion stress
The modern, consistent design saves up to 11% more space compared to ordinary standards-based cylinders, providing a significantly more compact system structure
Technical Data
| Stroke | 40 mm |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Cushioning length | 22 mm |
| Basic weight for 0 mm stroke | 1709 g |
| Additional weight per 10 mm stroke | 73 g |
| Pneumatic connection | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium Coated |
| Material seals | TPE-U(PU) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Operating and environmental conditions
There are so many models. Hurry to call me!
