| Brand Name: | FESTO |
| Model Number: | ADVUL-32-40-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD50-80 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-13working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Brand: | FESTO | Type: | ADVUL-32-40-P-A |
|---|---|---|---|
| Part No: | 156880 | Ambient Temperature: | -20°C-80°C |
| Symbol: | '00991497 | Mode Of Operation: | Double-acting |

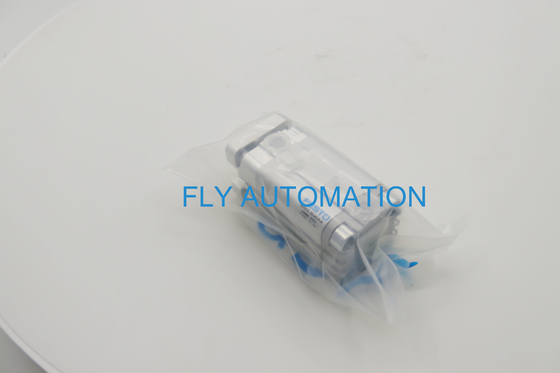

| High Light: | 156880 Pneumatic Air Cylinders,Double Acting Compact Cylinder 32mm |
||
About product
Cushioning:Elastic cushioning rings/plates at both ends
Position detection:Via proximity switch
Variants:Piston rod at one end
Technical Data
| Stroke | 40 mm |
| Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Design | Piston Piston rod |
| Position detection | Via proximity switch |
| Symbol | 00991737 |
| Variants | Piston rod at one end |
| Protection against torque/guide | Guide rod with yoke |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Pneumatic connection | G1/8 |
| Material collar screws | Galvanised steel |
| Material cover | Wrought aluminium alloy |
| Material dynamic seals | NBR TPE-U(PU) |
| Material piston rod | High-alloy stainless steel |
| Material cylinder barrel | Wrought aluminium alloy |
Sectional view
There are so many kinds. Please contact with me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
