Place of Origin: | CHINA |
Brand Name: | CAMOZZI |
Certification: | CE |
Model Number: | 1540 Series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-10 working days after payment |
Payment Terms: | T/T , Western Union, PayPal |
Supply Ability: | 1000 pcs /day |
Model: | 1540 Series | Tube: | 12/10 |
---|---|---|---|
Color: | Silvery | Application: | Heidelberg Ink Reel |
Material: | Nickel-plated Brass | ||
Highlight: | flexible tube fittings,pneumatic fittings and tubing |

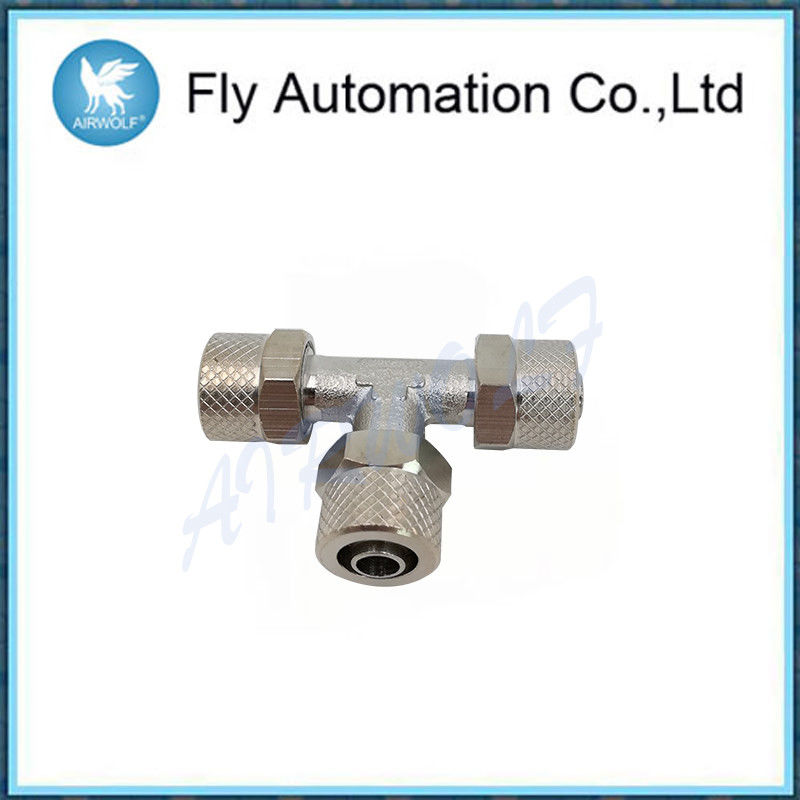

CAMOZZI Silvery 1540 Series Nickel-plated Brass Pneumatic Tube Fittings Three Connection Joint
Materials | body and nut: nickel-plated brass O-ring: NBR thread seals: PTFE, PA, AL |
Threads |
GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP) |
Pressure | the nominal pressure of the fittings is always higher than the pressure of the tube |
Tube to connect | PA polyethylene braided PVC rilsan PU, Hytrel Polyester |
Diameters | 5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm |
Fluid | compressed air low pressure fluid |
Temperature | -20°C ÷ 80°C NOTE: for a better use of the fitting we recommend to check the tubingspecifications |
DIMENSIONS | |||||||||||
Mod. | Tube | C1 | C2 | M1 | M2 | R1 | R2 | SW | SW1 | SW2 | Weight (g) |
1540 5/3 | 5/3 | 2 | 2 | 21,5 | 21,5 | 15 | 15 | 8 | 8 | 8 | 17 |
1540 6/4 | 6/4 | 3 | 3 | 22,5 | 22,5 | 15 | 15 | 8 | 12 | 12 | 31 |
1540 8/6 | 8/6 | 5 | 5 | 22,5 | 22,5 | 15 | 15 | 10 | 14 | 14 | 39 |
1540 10/8 | 10/8 | 6,5 | 65 | 25,5 | 25,5 | 17 | 17 | 12 | 16 | 16 | 58 |
1540 12/10 | 12/10 | 8,5 | 85 | 30 | 30 | 20 | 20 | 14 | 19 | 19 | 90 |
1540 15/12,5 | 15/12,5 | 11 | 11 | 34 | 34 | 22,5 | 22,5 | 16 | 22 | 22 | 128 |
1540 8/6-6/4 | 8/6-6/4 | 5 | 3 | 22,5 | 22,5 | 15 | 15 | 10 | 14 | 12 | 38 |
1540 10/8-6/4 | 10/8-6/4 | 6,5 | 3 | 25,5 | 23,5 | 17 | 165 | 12 | 16 | 12 | 50 |
1540 10/8-8/6 | 10/8-8/6 | 6,5 | 5 | 25,5 | 24 | 17 | 165 | 12 | 16 | 14 | 53 |
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Competitive Advantage
Our product features | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
