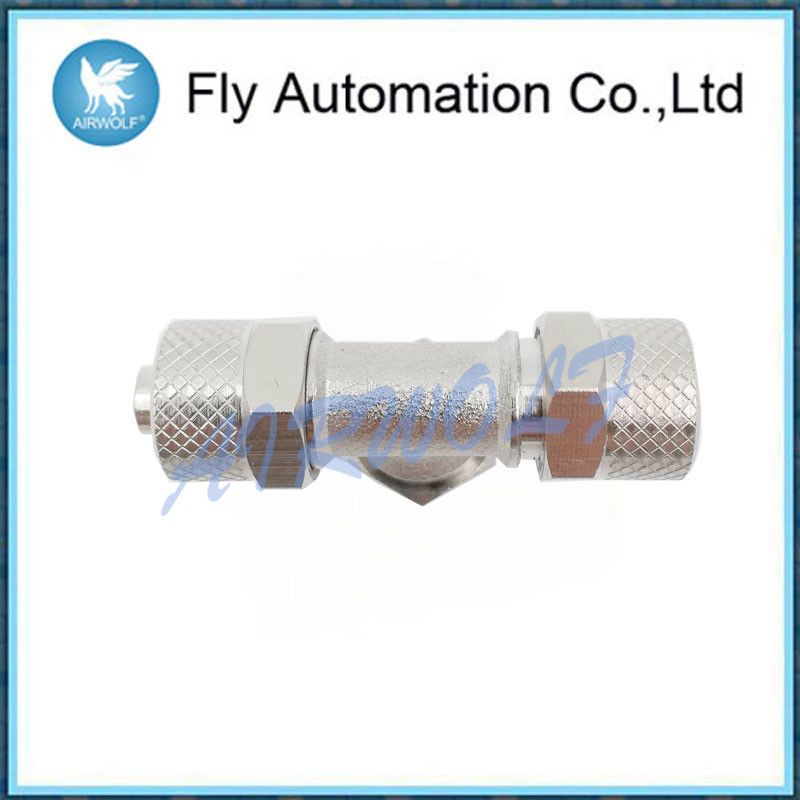

1431Series Three through middle thread Trilateral Vertical integration
| Materials |
body and nut: nickel-plated brass
O-ring: NBR
thread seals: PTFE, PA, AL |
| Threads |
GAS conical ISO 7 (BSPT)
GAS cylindrical ISO 228 (BSP)
M5 - M6 NPT and metric (available on request)
|
| Pressure |
the nominal pressure of the fittings is always higher
than the pressure of the tube |
| Tube to connect |
PA polyethylene braided PVC rilsan PU, Hytrel Polyester |
| Diameters |
5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm |
| Fluid |
compressed air low pressure fluid |
| Temperature |
-20°C ÷ 80°C
NOTE: for a better use of the fitting we recommend to
check the tubingspecifications |
1. Series 1000 rapid push-in fittings can be easily installed.
2. The push-in locking nuts can be tightened both manually and with a spanner even in case of stiff tubes like the PA or the Hytrel Polyester.
3. The special shape of the guiding cone ensures that the tube cannot be accidentally cut.
NingboFly Automation was founded in 2006. We have many years experience in producing pneumatic components. Pneumatic components includes pneumatic fittings, pulse valves, water valves, induction coil, solenoid valves, manual valves, air control valves, angle seat valve, air preparation units, cylinders, air gun, air brush, machinery parts, PU/PE pneumatic & hydraulic tubes and pneumatic accessories.
Our factory is in the national tourist resort---Xikou Town, Ningbo, China, adjoins the world-class deep water harbor------Beilun port, 2 hours driving to Shanghai, only 20kms away from Ningbo Lishe International Airport, whereby it enjoys great traffic convenience.
Our products quality is strictly controlled according to ISO quality standard. The perfect producing and testing equipments, advanced quality management system, professional manufacture and sales team guaranteed our forceful before-sale and after-sale service.
We keep the policy “Favorable price, on-time delivery, steady quality, ceaseless development heart-to-heart service and Win-win mode”.
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Serves time
0:00 - 23:59
From Monday to Sunday
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
