| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | QS-12 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | EXW USD1-2 |
| Packaging Details: | plastic bag, carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 800 pcs per week |
| Specifications: | QS-12 | Brand: | FESTO |
|---|---|---|---|
| Order No: | 153035 | Weight: | 22 G |
| Size: | Standard | Corrosion Resistance Class CRC: | 1 - Low Corrosion Stress |
| High Light: | 12mm Push In Connector,QS-12 Push In Connector,Pneumatic Tubing PBT Connector |
||

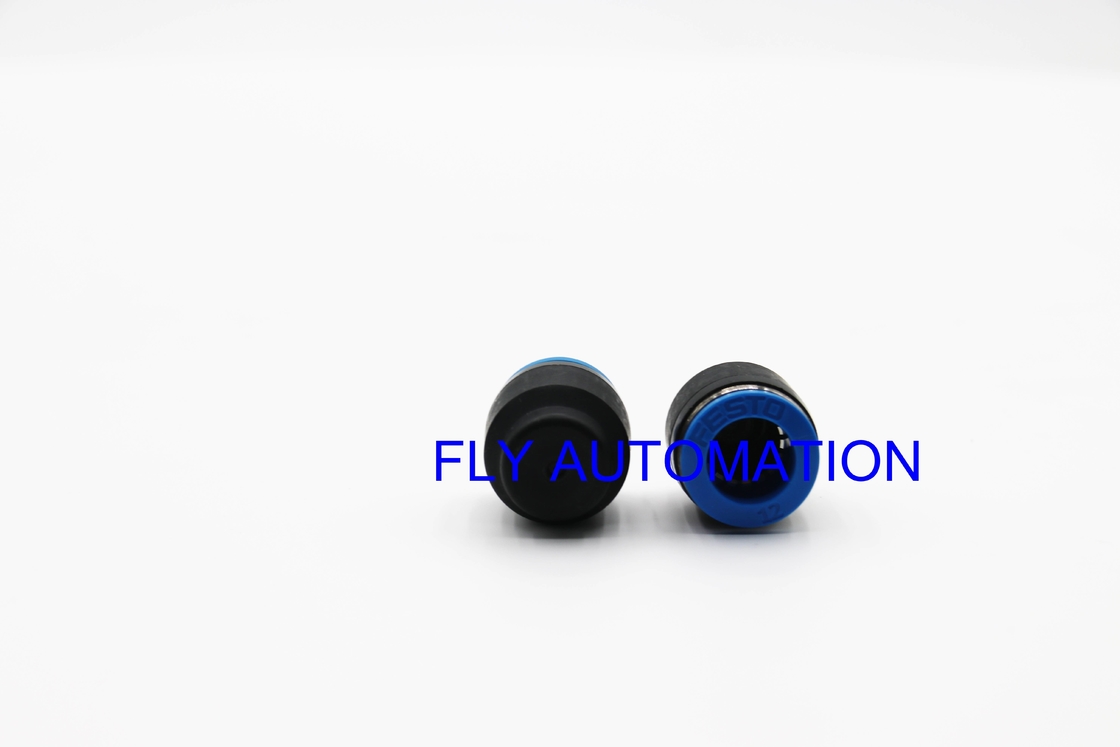

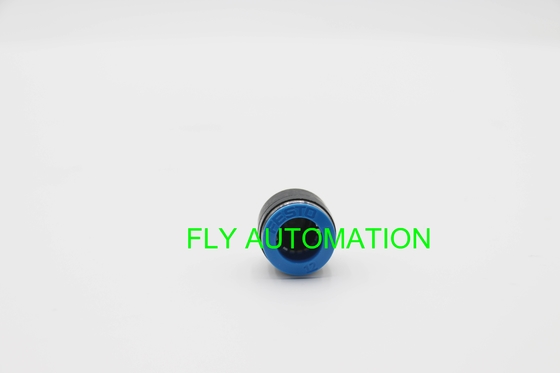

About product
1.The pipe connector has a series of advantages, such as advanced structure, good performance, convenient use, no welding, no need for pipe expanding, etc.
2.The pipe connector has been widely used in various mechanical hydraulic and pneumatic systems.
Product Technical Data
| Size | Standard |
| Nominal size | 11 mm |
| Mounting position | optional |
| Design | Push-pull principle |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 22 g |
| Pneumatic connection, port 1 | For tubing outer diameter of 12 mm |
| Pneumatic connection, port 2 | For tubing outer diameter of 12 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Overview of tubing/fitting combinations
There are many specifications of connectors, price and delivery time. Welcome to enquiry.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
