1268274 Norgren 8296800 700 G2" G2.5 Inch Pulse Jet Valves

1268274 TPE diaphragm repair kit Norgren 8296800 700 G2" G2.5inch Pulse Jet Valves

Series 82960
1. 2/2-way valves DN 20 to DN 65
2. For air
3. Indirectly solenoid actuated
4. Diaphragm valves
5. Internal thread G 3/4 to G 2 1/2 or 3/4" NPT to 2 1/2" NPT
6. Operating pressure: 0.4 to 8 bar

Ordering Code:  1268274

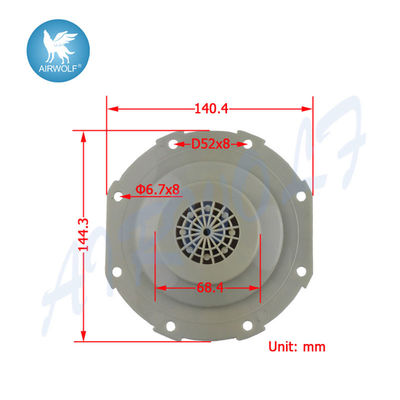

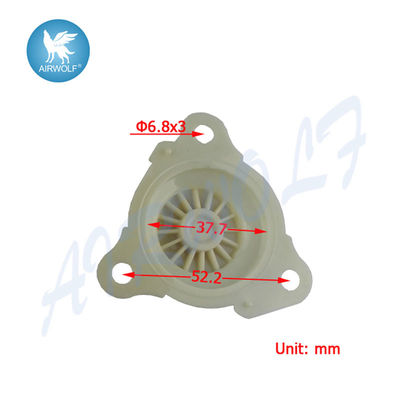

Drawing

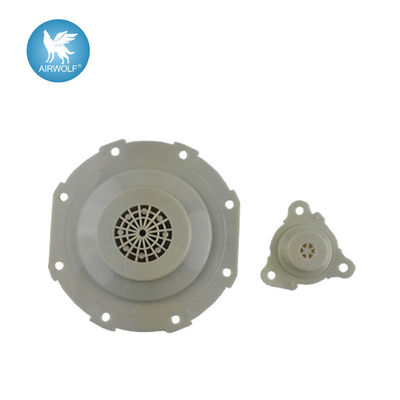

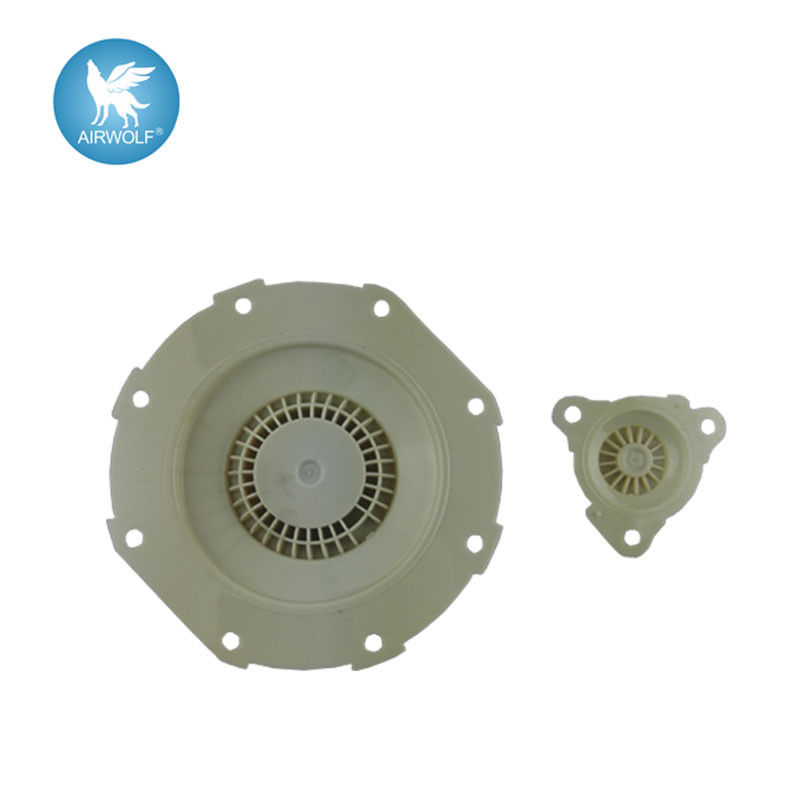

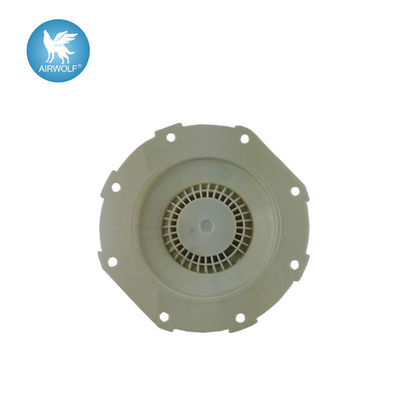

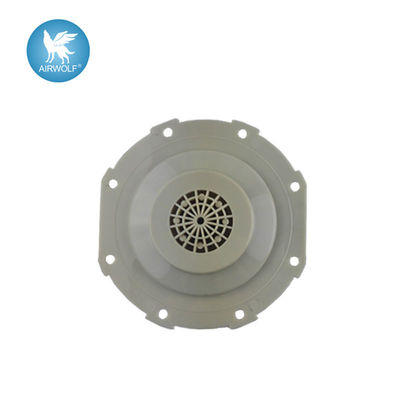

Photos Show:

Description (standard valve)
Switching function: normally closed
Flow direction: determined
Fluid temperature: -40 °C up to max. +85 °C
Ambient temperature: -20 °C up to max. +85 °C
Mounting position: as required, preferably with solenoid vertical on top

Material
Body: Aluminium
Seat seal: TPE
Internal parts: TPU

Features
1. High flow rate
2. All internal components captive
3. Functional compact design
4. Solenoid interchangeable without tools
5. Integrated silencer
6. One-piece diaphragm for longer life

Service kits

1 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

2 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

3 . Integral pilot operated valves satisfy all relevant EC directives

4 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

5 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

Competitive Advantage

Introduction
Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.

Working principle
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.
