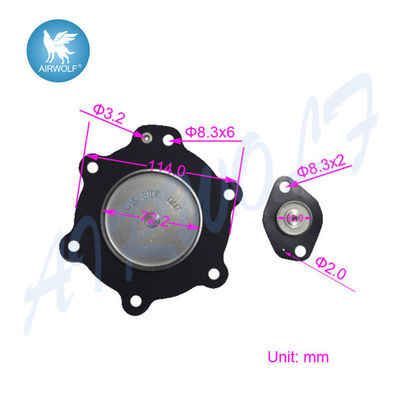

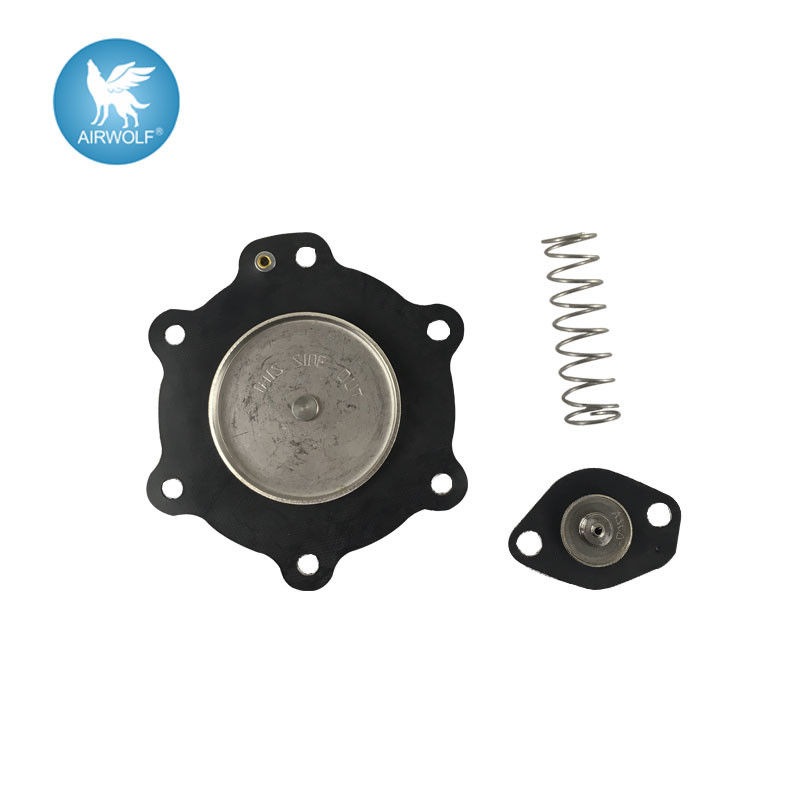

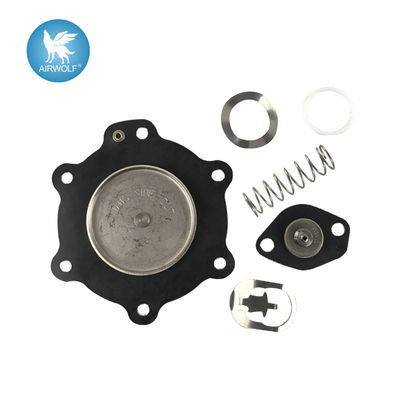

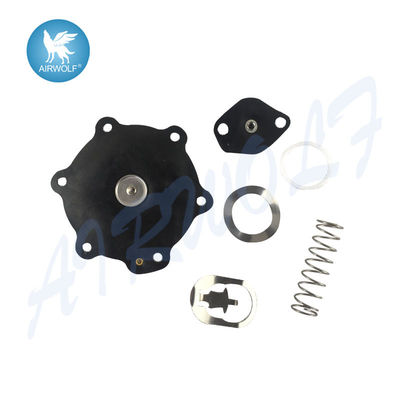

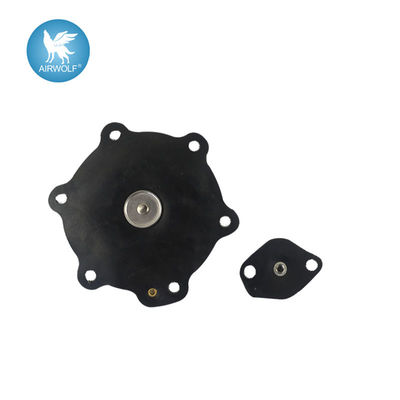

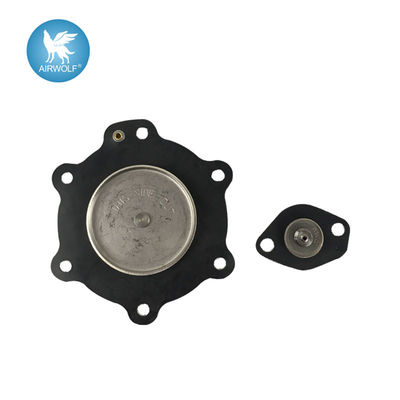

C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve

C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve

  • C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
  • C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
  • C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
  • C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
  • C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
  • C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
C113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve
Product Details:
Place of Origin: CHINA
Brand Name: or OEM
Certification: CE
Model Number: C113827
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: price negotiable
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T in advance,Western Union,Paypal,Credit card
Supply Ability: 2000 pcs
Contact Now
Detailed Product Description
Material: Nitrile Or Fluororubber Port Size: 1-1/2"
Fitted Valve Code: SCG353A047 Working Temperature: -20℃-80℃
Working Pressure: 0.05-1.0 Mpa
High Light:

C113827 Diaphragm Repair Kit


SCG353A047 Diaphragm Repair Kit


SCG353A047 Pulse Valve Diaphragm Kit

C113827 NBR/FKM diaphragm kit Stainless steel Spring for SCG353A047 pulse valve


Ordering Code: C113827

Repair kits for  SCG353A047
The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
Diaphragm Material: Buna(NBR)
Cover: SS304
Diaphragm kits for: pulse valves: SCG353A047,G353A065,G353A046,G353A045
Working pressure: 0.05-1.0 Mpa
Working Temperature: -20ºC- +82 ºC
Lifespan:1 million cycles


Ordering Code Fitted Valve Code Valve port size Material

G35A041, G353042

SCG353A043, SCG353A044

3/4'' , 1'' TPE / NBR
C113825 G353A045 1 1/2'' NBR / BUNA
C113826 G353A046 1 1/2'' NBR / BUNA
C113827 SCG353A047 1 1/2'' NBR / BUNA
SCG353A050, SCG353A051,
G353A048, G353A049
2'' , 2 1/2'' NBR / BUNA
C113686 NBR / BUNA
C113928 SCEX353.060 3'' NBR / BUNA


Reminder: * Diaphragm and pilot inspection should be conducted once a year. * Ensure that components are completely isolated from pressure and power before any maintenance activities are performed on the system. Do not reapply pressure and power until the valve is fully assembled


C113827 Diaphragm Repair Kit For SCG353A047 Pulse ValveC113827 Diaphragm Repair Kit For SCG353A047 Pulse Valve


• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
• The design with integral compression fittings will facilitate installation because there is no need for threaded piping
• Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve
• The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explo- sive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52)
• /JOUCOMATIC components satisfy all relevant EC directives


High purity Aluminum Alloy casting body, the top of NBR diaphragm, make the diaphragm has high tensile strength, ageing resistance and low wear, the electromagnetic pulse valve injection is longer than that of 1 million or three to five years with no damage.
All high-quality imported finished diaphragm, diaphragm assembly in the manufacturing process all checks, qualified and then into the assembly line. Each finished valve is tested by ventilation.


Electromagnetic pulse valve coil is higher than the national standard grade insulation injection in the protection class is IP65 full filling, full copper enameled wire, coil number higher than the national standard, ensure the electromagnetic pulse valve 6 million is energized is not damaged, the electromagnetic coil can rotate 360 DEG in the pulse valve, the junction box can rotate 90 degrees to 4 x can be installed to prevent exposure in the open when rain enters, greatly facilitate the installation of different angles.


Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.
