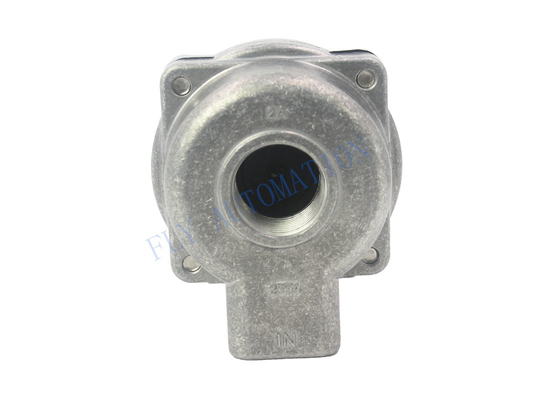

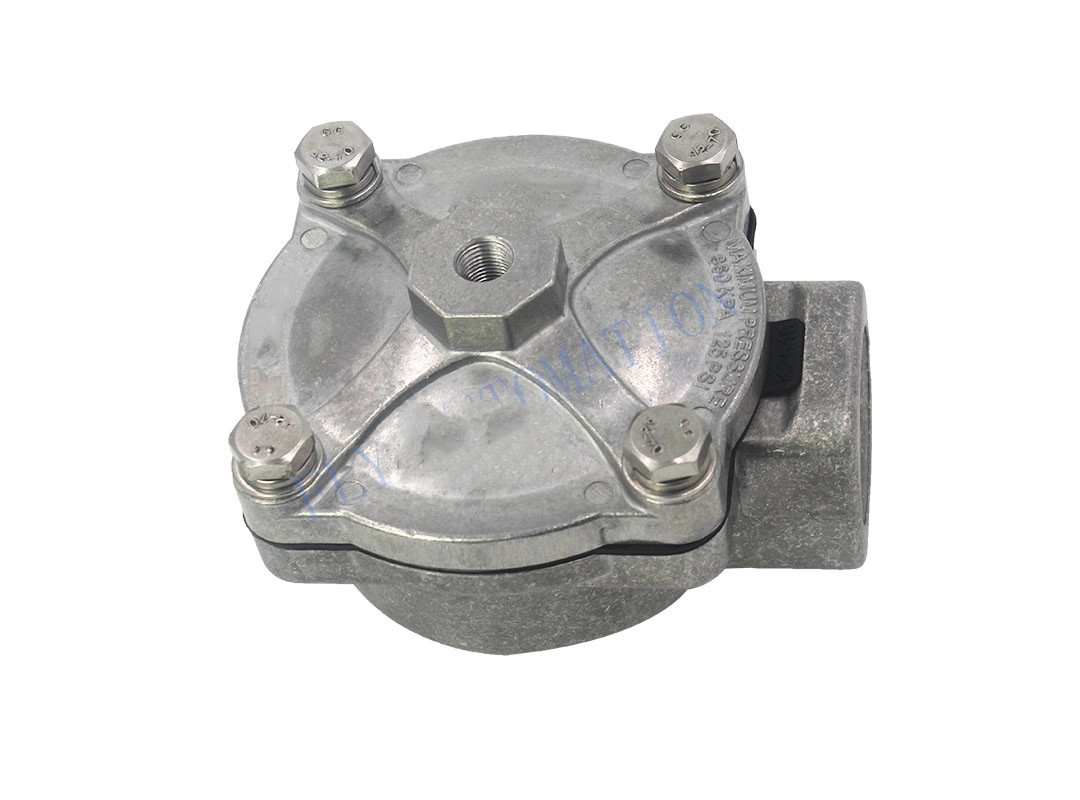

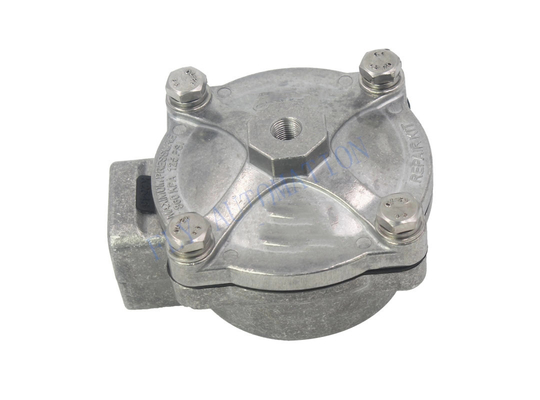

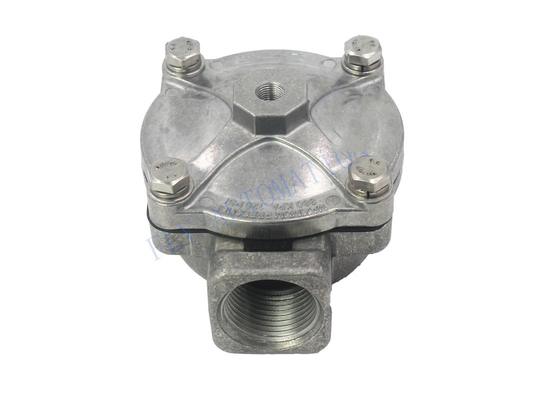

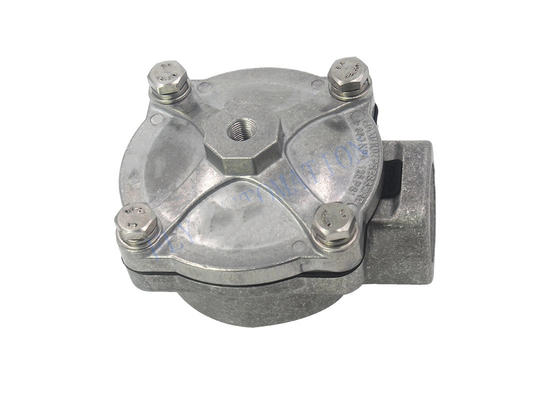

FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves

FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves

  • FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves
  • FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves
  • FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves
  • FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves
FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves
Product Details:
Place of Origin: CHINA
Brand Name: FLY/AIRWOLF
Certification: CE, ISO9001
Model Number: RCAC25T4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Model:: RCAC25T4 Body Material: Aluminium Alloy
Seal Material: Shockwave Protection Class: IP65 With Cable Plug
High Light:

pulse solenoid valve

,

pulse jet valve

FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valve



OPERATION
Recommended time between pulses: 1 minute or greater

Recommended on-time range: 50 to 500 ms



CONSTRUCTION
Body: Aluminium (diecast)
Screws: 304 Stainless steel
Diaphragm: Proprietary highperformance engineering thermoplastic Elastomer or fluororubber



SUITABLE FOR
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.



Introduction
Electromagnetic pulse valve refers to the gas through the valve in instantaneous once a electrical signal received. Just like pulse phenomena, it has the change of the short fluctuation. Therefore it is calls the pulse valve. The Industry standard definition of electromagnetic pulse valve for electromagnetic pilot valve and pulse valve together, diaphragm valve controlled by electrical signals.

Working principle
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.

The submerged pulse valve installment and structure



APPROVALS
The RCAC25T4 meets the requirements of the European Low Voltage Directive 2006/95/EC, when fitted with the RCA3PV pilot.

Please Note: We recommend using Schedule 40 pipe. Thickness OD is as shown below.



Dimension

FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves



Product show

FLY/AIRWOLF RCAC25T4 K2546 AG8113901 Shockwave 4 Series New type 1" Pulse jet Valves



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.


Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


Warranty


All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
