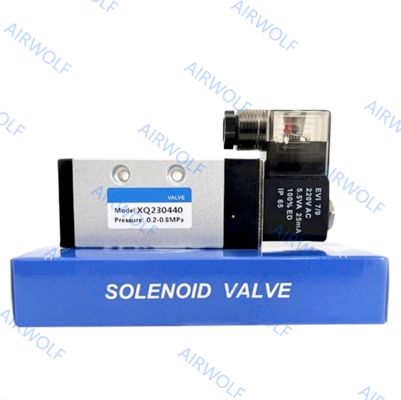

Name: XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
Brand: Airwolf Automation
SKU: XQ230440 XQ230640 XQ250440 XQ250640
Price: 7.00 USD
Availability: InStock

Home Products Pneumatic Solenoid Valves

XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V

Product Details:

Place of Origin:	CHINA
Brand Name:	SXPC AIRWOLF or OEM
Model Number:	XQ230440 XQ230640 XQ250440 XQ250640

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	5-10USD
Packaging Details:	plastic bags, carton, pallet
Delivery Time:	1-3 work days
Payment Terms:	T/T, Paypal, Western Union, Alibaba
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Body Material:	Aluminum	Seal Material:	NBR
Operating Pressure:	0.2-1.0MPa	Working Temperature Range:	-10~+60 ℃
Operating Voltage:	DC12V DC24V AC110V AC220V	Port Size:	1/8", 1/4"
Position:	3/2way, 5/2way	Working Medium:	Dry Compressed Air Filtered By 40μm
Highlight:	0.2-1.0MPa Operating Pressure Pneumatic Solenoid Valve , 5~50℃ Temperature Range Pilot Solenoid Valve , Multi-Voltage DC12V DC24V AC110V AC220V Direction Control Valve

XQ Series Aluminum XQ230440 XQ230640 XQ250440 XQ250640 3/2 way 5/2 way Pilot Solenoid Valve 1/4" 1/8"

Order Code:

Item Code	Port Size	Positions
XQ230440	1/8"	3/2 way
XQ230640	1/4"	3/2 way
XQ250440	1/8"	5/2 way
XQ250640	1/4"	5/2 way

The series is solenoid pilot operated valves with spool construction, reliable direction control and long service life. The double solenoid valve has memory function.

The valve is equipped with manual operator(s) to facilitate the equipment calibration and maintenance.

The series contains a variety of valve models.

The valves are extensively used in controlling cylinders and other pneumatic components.

Dimensions:
