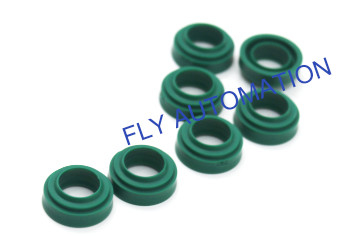

WIFC4-12X19X4 Polyurethane Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338265

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	FESTO,WIFC4-12X19X4,8-TPE-U,338265

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD12-20
Packaging Details:	carton，OPP bag
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1500 pcs per week

Contact Now

Detailed Product Description

Material:	Polyurethane With Shore A Hardness Of 93	Specifications:	12194.8
Color:	Green	Order:	338265
Working Pressure:	≤16Bar	Working Temperature:	-35-+80℃
Highlight:	WIFC4-12X19X4 Cylinder Wiper Seal , 8-TPE-U Cylinder Wiper Seal , Polyurethane Wiper Ring Seal

FESTO,WIFC4-12X19X4,8-TPE-U,338265 Wiper seal for Pneumatic Air cylinder

Name: WIFC4-12X19X4 Polyurethane Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338265
Brand: FLY AUTOMATION
SKU: FESTO,WIFC4-12X19X4,8-TPE-U,338265
Price: 16.00 USD
Availability: InStock

Material:Polyurethane with Shore A hardness of 93,green,338265

Scope of application:working pressure:≤16Bar,working temperature:-35-+80℃

Surface velocity:≤1m/s

medium:Oily lubricated air and dry air and oil-free air (after initial lubrication assembly).

The piston seals commonly used for this product are ADVU-32 and ADVU-40.

The FESTO material number of this product is338265,there is another seal oil scraper AS02-12-PU with the same material number, Please pay attention

Another size data as bellow:

Specifications	Order no	Size	Coler	EXW price	Delivery date
FESTO,WIFC4-10X16,2X6,2-TPE-U	386133	10X16,2X6,2	green	USD5-15	3-5 working days
FESTO,WIFC4-20X29X6,8-TPE-U	338267	20X29X6,8	green	USD30-40	3-5 working days
FESTO,WIFC4-12X19X4,8-TPE-U	338265	12X19X4,8	green	USD12-20	3-5 working days
FESTO,WIFC4-16X23X4,8-TPE-U	338266	16X23X4,8	green	USD15-25	3-5 working days
FESTO,WIFC4-8X14,2X5,2-TPE-U	386132	8X14,2X5,2	green	USD6-15	3-5 working days

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

Installation steps:

1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely.

2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position.

3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring.

4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted.

5.Insert the piston rod and fix the cylinder head.

Hurry to call me and waiting for you!!!!!
