Wear Resistance Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338266 FESTO WIFC4-16X23X4

Wear Resistance Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338266 FESTO WIFC4-16X23X4

  • Wear Resistance Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338266 FESTO WIFC4-16X23X4
  • Wear Resistance Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338266 FESTO WIFC4-16X23X4
Wear Resistance Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338266 FESTO WIFC4-16X23X4
Product Details:
Place of Origin: China
Brand Name: FESTO
Model Number: FESTO,WIFC4-16X23X4,8-TPE-U,338266,Wiper seal for Pneumatic Air cylinder
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: EXW USD15-25
Packaging Details: carton，OPP bag
Delivery Time: 2-3 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1600 pcs per week
Contact Now
Detailed Product Description
Material: Polyurethane Color: Green
Specifications: 16*23*4.8 Order No: 338266
Brand: FESTO Model: WIFC4-16*23*4.8-TPE-U
Highlight:

8-TPE-U Wiper Seal

,

Wear Resistance Cylinder Wiper Seal

,

Polyurethane Wiper Ring

FESTO,WIFC4-16X23X4,8-TPE-U,338266,Wiper seal for Pneumatic Air cylinder

Material:Polyurethane with Shore A hardness of 93

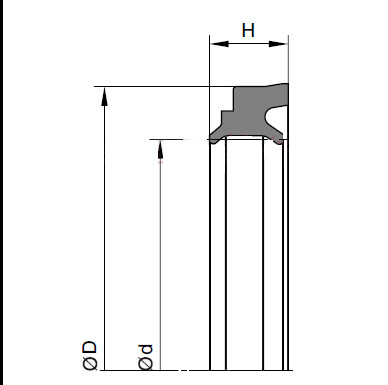

Specifications: 16*23*4.8

Model:WIFC4-16*23*4.8-TPE-U

Color:Green

Order no:338266

Brand:FESTO

Green polyurethane material, with good dry friction resistance, weather resistance and wear resistance.

The FESTO material number of this product is 338266,However, there is another seal oil scraper AS02-16-PU with the same material number, different sizes .Please pay attention to identification. Comparison chart:

Wear Resistance Pneumatic Air Cylinder Wiper Seal 8-TPE-U 338266 FESTO WIFC4-16X23X4





Installation steps:

1.Please align the side with words in the groove with the inside of the cylinder, and do not install it reversely.

2.Push the sealing ring into the cylinder head. An audible click indicates that it has entered the installation position.

3.Apply a proper amount of grease on the inner diameter of the seal ring to improve the service life of the seal ring.

4.Wrap a proper amount of adhesive tape around the piston rod thread to avoid scratching the seals when the piston rod is inserted.

5.Insert the piston rod and fix the cylinder head.



 Be attention

1,Before you endorse the parcel, please do open the package, and check out whether the items are damaged during the shipping process.
If so, please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this...
2,Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions,
please feel free to contact us.



waiting for you !!!
