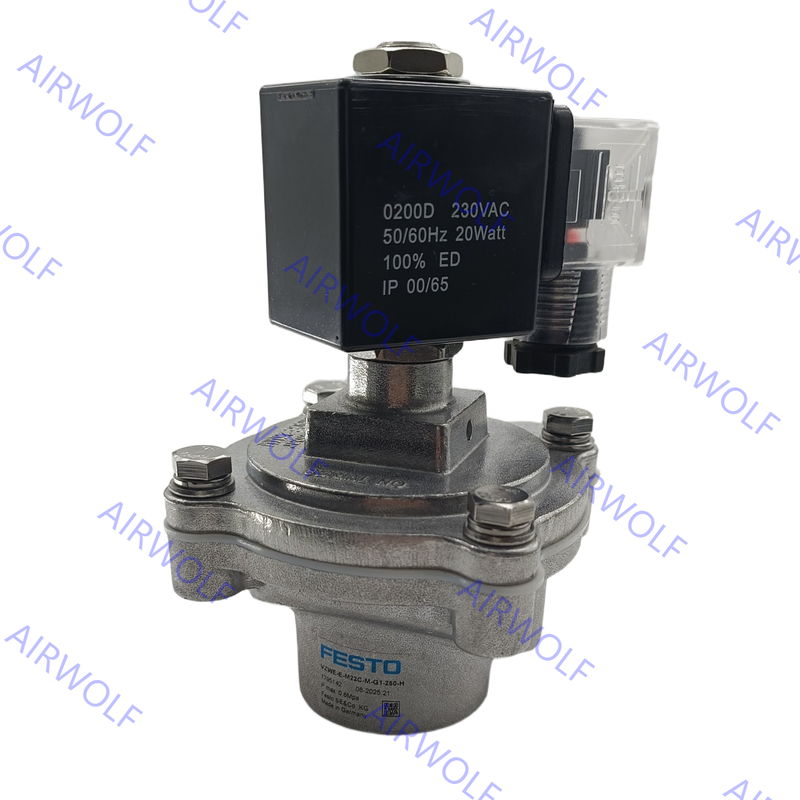

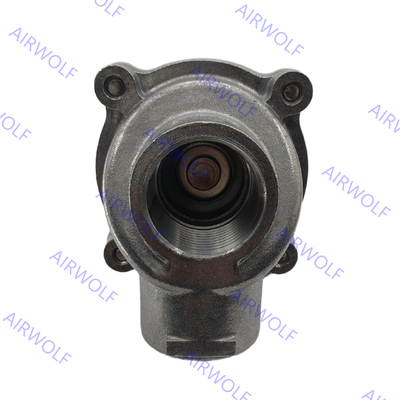

VZWE-F-M22C-M-G1-250-H VZWE-F-M22C-M-G112-250-H Festo Reverse jet pulse valves

Product Details:

Place of Origin:	Germany, China
Brand Name:	Festo, AIRWOLF or OEM
Certification:	IP65
Model Number:	VZWE-F-M22C-M-G1-250-H, VZWE-F-M22C-M-G112-250-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	40-70USD
Packaging Details:	Boxes, Cartons, Pallets, Plastic bags
Delivery Time:	1-7 work days
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Item Code:	VZWE-F-M22C-M-G1-250-H, VZWE-F-M22C-M-G112-250-H	Housing Material:	Die-cast Aluminium
Seal Material:	NBR	Operating Pressure:	0.35~8bar
Working Temperature Range:	-20~60℃	Port Size:	G1, G1 1/2
Position:	2/2 Way	Function:	Reverse-pulse Filter Cleaning
Highlight:	Festo reverse jet pulse valves , Pneumatic solenoid valves with warranty , M22C-M-G1 solenoid valve

VZWE-F-M22C-M-G1-250-H VZWE-F-M22C-M-G112-250-H Festo Reverse jet pulse valves

Reverse jet pulse valves VZWE are piloted 2/2-way valves. They generate pulses of compressed air using a suitable solenoid coil for mechanically cleaning filters and dust filter systems. The valves are actuated using short electrical pulses. These pulses generate short pulses of compressed air at the output of the valve, which travel through the filter against the normal direction of flow of the filter system to release adhering particles from the filter.

Order Codes:

Item Code	Process valve connection	Type	Part no.
VZWE-F-M22C-M-G1-250-H	G1	Flanged valve	1795190
VZWE-F-M22C-M-G112-250-H	G1 1/2	Flanged valve	1804475

General technical data:

Nominal size [mm]	25	40	50	62	76
Valve function	2/2-way, single solenoid, closed
Manual override	None
Design	Diaphragm valve, straight design with flange
Reset method	Mechanical spring
Type of control	Piloted
Actuation type	Electric
Type of mounting	Via thread, screwed in
Mounting position	Any
Direction of flow	Non-reversible
Switching time on [ms]	≤30
Switching time off [ms]	≤100
Flow rate Kv [m³/h]	22	48	78	95	210
Process valve connection 1	G 1	G 1 1/2	60	75	89
Process valve connection 2	59	74	145.5	145.5	162

1) Corrosion resistance class 3 according to Festo standard 940 070 Components subject to high corrosion stress. Externally visible parts with primarily functional surface requirements which are in direct contact with a normal industrial environment or media such as solvents and cleaning agents.

Operating and environmental conditions:

Medium	Compressed air according to ISO 8573-1:2010 [7:4:4]
Note about the operating/pilot medium	Lubricated operation not possible
Medium pressure [bar]	0.35 ... 8
Differential pressure [bar]	0.35
Ambient temperature [°C]	-20 ... 60
Protection class	IP65
Corrosion resistance class CRC1)	3

Materials:

Reverse jet pulse valves		Material number
① Housing	Die-cast aluminium	EN AC-47100D
② Screws	High-alloy steel	1.4301
③ Armature tube	High-alloy steel	-
- Seal	Nitrile rubber	-
- Diaphragm	Nitrile rubber/polyamide	-
- Note on materials	Contains PWS (paint-wetting impairment substances), RoHS-compliant	-

Dimensions:

VZWE-F-M22C-M-G1-250-H VZWE-F-M22C-M-G112-250-H Festo Reverse jet pulse valves
