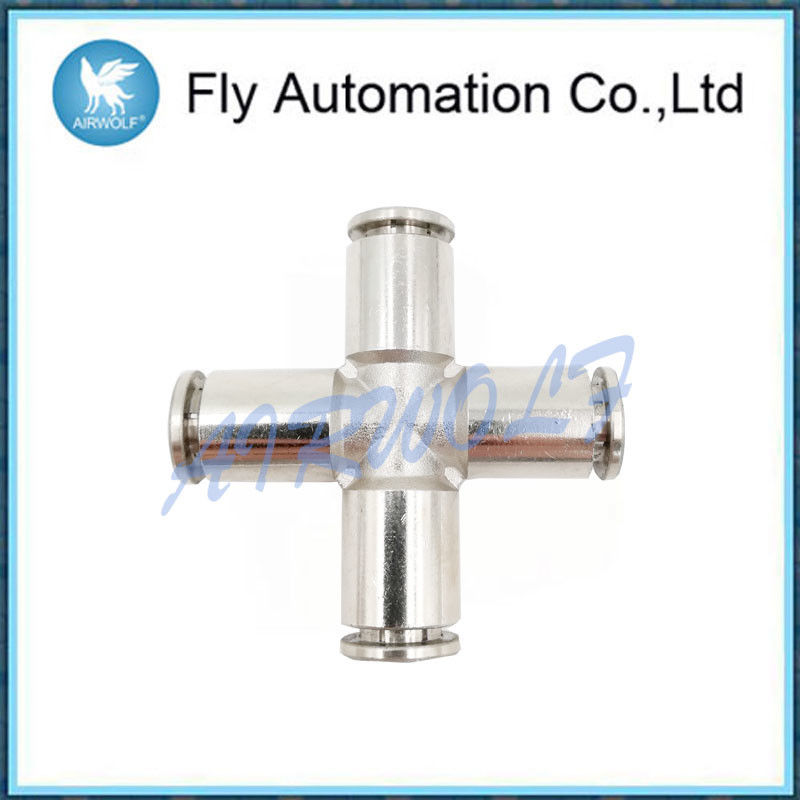

Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel

Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel

  • Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel
  • Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel
  • Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel
Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel
Product Details:
Place of Origin: CHINA
Brand Name: CAMOZZI
Certification: CE
Model Number: 6600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-10 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 2000 pcs /day
Contact Now
Detailed Product Description
Model: 6600 Port Size: G1/4"
Material: Stainless Steel Structure: Union Cross
High Light:

pneumatic fittings and tubing

,

brass tube fittings

Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel



Diameters ø 4 - 5 -6 - 8 - 10 - 12 - 14 - 16 mm
Micro models: ø 3 - 4 - 6 - 8 - 10 mm
Threads GAS conical ISO 7 (BSPT) GAS cylindrical ISO 228 (BSP); M5-M6 and other
metric threads available on request; NPT on request
Micro models: M3 - M5 - M7 - G1/8 - G1/4
Temperature -20°C to 80°C (see the technical data of tubing used)
Micro models: -10°C to 80°C (see the technical data of tubing used)
Tube to connect Rilsan, PA 6-11-12, Polyethylene, PU, Hytrel Polyester
Fluid compressed air (for other types of fluid, contact our engineers)
Materials standard models: body and collet in nickel-plated brass, O-Ring in NBR,
thread seals in PTFE - NBR - PA
models with self-retaining device: body and collet in nickel-plated brass,
poppet valve in brass, spring in stainless steel,
O-Ring in NBR, thread seals in PTFE
Pressure standard models: min -0,9 bar - max 16 bar (see tubing)
models with self-retaining device: 0 to 16 bar

1.Series 6000 super-rapid fittings have been designed with a special collet which provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and a long service life, also after connections and disconnections of the tube are repeated several times.
2.The wide range of these fittings includes many types of threads: metric, BSP and BSPT.
3.Sprint models are characterized by great reliability of female threads, both BSP and BSPT, with non-flat surfaces.
4.This is possible thanks to a Teflon ring on the male thread, which guarantees a perfect seal between the two threads.
Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steelUnion Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel
Union Cross Shape Pneumatic Tube Fittings Series 6600 Port Size G1/4" Stainless steel
NingboFly Automation was founded in 2006.

We have many years experience in producing pneumatic components.

Pneumatic components includes pneumatic fittings, pulse valves, water valves, induction coil,

solenoid valves, manual valves, air control valves, angle seat valve, air preparation units,

cylinders, air gun, air brush, machinery parts, PU/PE pneumatic & hydraulic tubes and pneumatic

accessories.

Our factory is in the national tourist resort---Xikou Town, Ningbo, China, adjoins the world-class

deep water harbor------Beilun port, 2 hours driving to Shanghai, only 20kms away from Ningbo

Lishe International Airport, whereby it enjoys great traffic convenience.

Our products quality is strictly controlled according to ISO quality standard. The perfect producing

and testing equipments, advanced quality management system, professional manufacture and

sales team guaranteed our forceful before-sale and after-sale service.

We keep the policy “Favorable price, on-time delivery, steady quality, ceaseless development

heart-to-heart service and Win-win mode”.



Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.



After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.



Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
