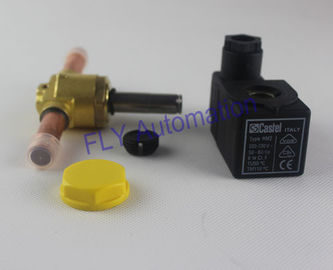

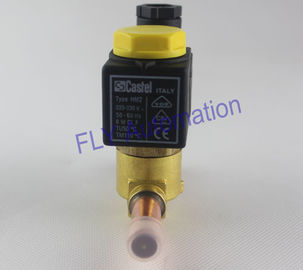

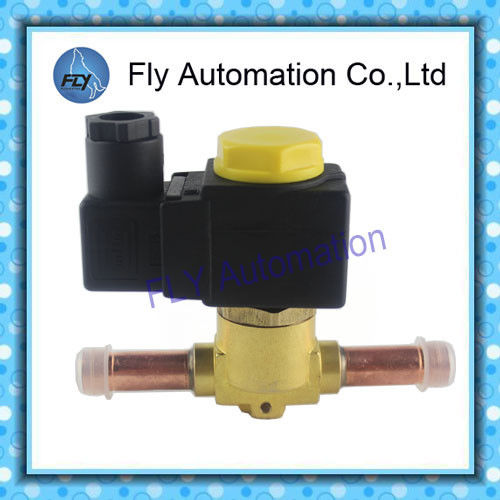

Name: Two-Channel Pneumatic Solenoid Valves SV For Refrigerater / Air Conditioners
Brand: FLY AUTOMATION
SKU: SV1028,SV1068,SV1078,SV1098,SV1079
Price: 23.00 USD
Availability: InStock

Home Products Pneumatic Solenoid Valves

Two-Channel Pneumatic Solenoid Valves SV For Refrigerater / Air Conditioners

Product Details:

Place of Origin:	China
Brand Name:	FLY,Castel
Certification:	CE
Model Number:	SV1028,SV1068,SV1078,SV1098,SV1079

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	USD 20-26
Packaging Details:	Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time:	within 1-30 working days after payment
Payment Terms:	T/T , paypal, Western Union
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Highlight:

pulse solenoid valve

pneumatic diaphragm valves

Two-Channel Pneumatic Solenoid Valves SV For Refrigerater / Air Conditioners

Description:

SV series Solenoid Valve is a kind of normally closed, two-channel trait ,acted as a pilot valve, it usually is applied in the liquid refrigerant or exhausting air and water or compressing air, with the features as below:

1.Nut system with O ring ensures watertight performance and strengthens the watertight performance of the coil.

2.The elaborately designed coil winding conforms to CE161-lstandard and able to remain functioning under extreme conditions.

3.The coil winding can be fitted with plug-in connector, which is configured with three wires and can be connected very easily.

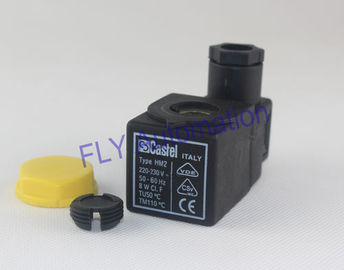

4.Electromagnetic coil employ moisture-proof resin windings, which possesses water-proof and shock resistant characteristics.

5.There is no need to shut systematic pipe line when replacing the electromagnetic coils.

6.The valve can evaporate normally, be opening or closing, under the condition that there is no pressure differential of the refrigerant media.

7.Working Temp.:-40℃ ~ +110℃；

8.24V, 110V, 220V and 380v electromagnetic coil are available and please inform us of that when placing order

Specifications:

Type	Connection size		Port φ(mm)	M.O.P.D(bar)	Max.Working Pressure (bar)	KV Factor(bar)	Nominal Capacity (KW)
	Solder						R134a	R22	R407C	R404A
	Φ[in.]	Φ[mm]
SV1028/2	1/4”	-	2.2	21	32	0.15	2.53	2.70	2.81	1.79
SV1028/2E	1/4”	-	3.0			0.23	3.88	4.14	4.31	2.74
SV1028/3	3/8”	-
SV1028/M10		10
SV1068/3	3/8”		7.0			0.8	6.8	9.4	9.3	8.0
SV1068/M10	-
SV1068/M12	-	12
SV1068/4	1/2”	-
SV1078/M12	-	12	12.5			2.2	18.7	25.7	25.6	22.0
SV1078/4	1/2”	-
SV1078/5	5/8”	16				2.61	22.2	30.5	30.3	26.1
SV1078/6	3/4	-
SV1079/7	7/8”	22
SV1058/5	5/8”	16	16.5			3.8	32.3	44.5	44.2	38.0
SV1058/6	3/4”	-				4.8	40.8	56.2	55.8	48.0
SV1058/7	7/8”	22				5.7	48.5	66.7	66.2	57.0
SV1059/9	1.1/8”	-
SV1098/5	5/8”	16				3.8	32.3	44.5	44.2	38.0
SV1098/6	3/4”	-				4.8	40.8	56.2	55.8	48.0
SV1098/7	7/8”	22				5.7	48.5	66.7	66.2	57.0
SV1099/9	1.1/8”	-
SV1078/9	1.1/8”	-	25.5			10	85.0	117.0	116.2	100.0
SV1079/11	1.3/8”	35
SV1098/9	1.1/8”	-	25.0			10	85.0	117.0	116.2	100.0
SV1099/11	1.3/8”	35
SV1078/11	1.3/8”	35	27.0			16	136.0	187.2	185.9	160.0
SV1079/13	1.5/8”	-
SV1079/M42	-	42

Dimension:

Type	Dimension(mm)
	H1	H2	H3	L1	L2	Q
SV1028/2	75	62.5	34	125	50	-
SV1028/2E				125
SV1028/3				125
SV1028/M10				125
SV1068/3	82	69.5	40	111		-
SV1068/M10				111
SV1068/4				127
SV1068/M12				127
SV1078/M12	91	75	47	127		45
SV1078/4				127
SV1078/5				175
SV1078/6				175
SV1079/7				190
SV1058/5	121	93	65	175		57
SV1058/6				175
SV1058/7				180
SV1059/9				216
SV1098/5	106	78	50	175
SV1098/6				175
SV1098/7				180
SV1099/9				216
SV1078/9	115	96	72	250		80
SV1079/11				292
SV1098/9	157	127	99	235		68
SV1099/11				277
SV1078/11	172	138	110	278		68
SV1079/13
SV1079/M42
