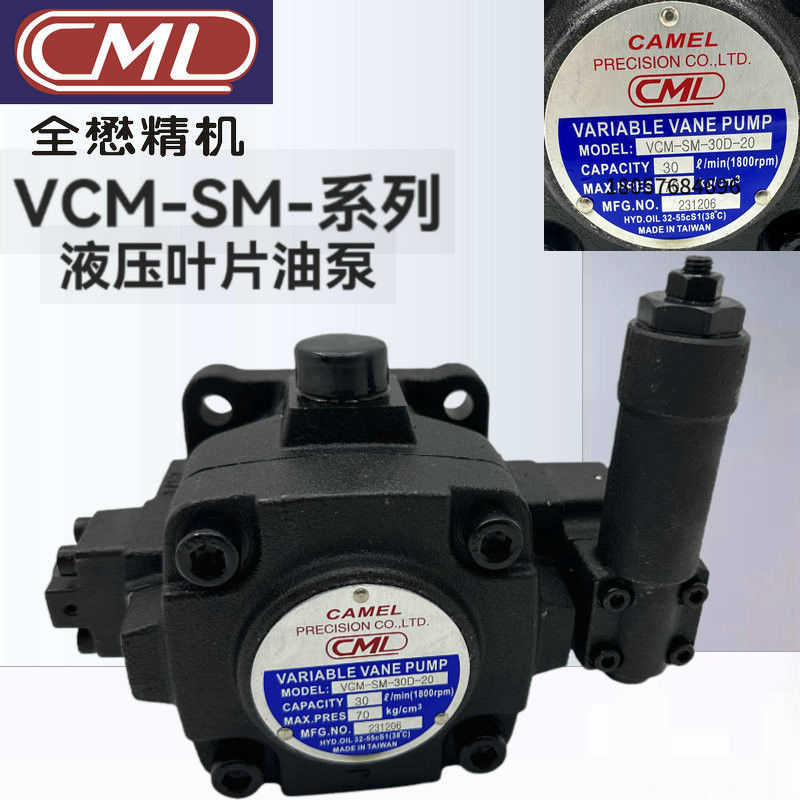

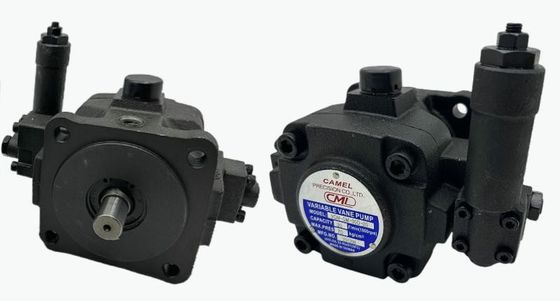

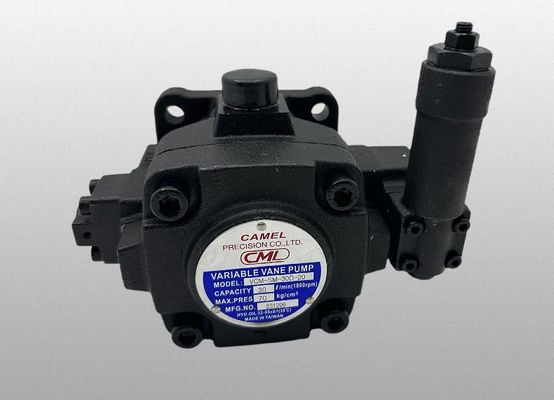

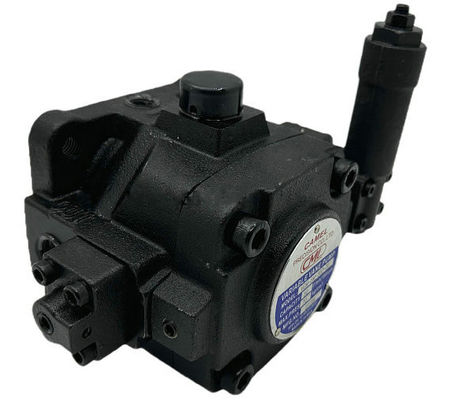

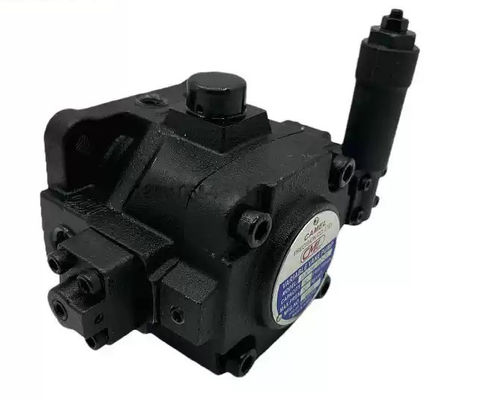

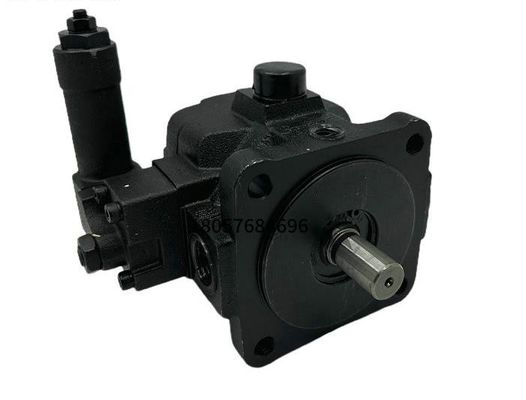

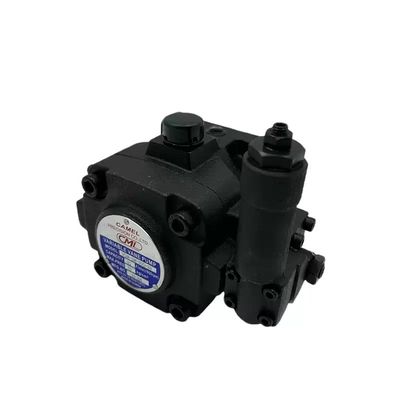

TAIWAN CML Medium Pressure Variable Vane Pump VCM-SM-40C-21 VCM-SM-30D-20

TAIWAN CML Medium Pressure Variable Vane Pump VCM-SM-40C-21 VCM-SM-30D-20

Variable Displacement Vane Pump, Variable Volume Vane Pump

The SM series with pressure-compensated adjustment devices that provide stable operating characteristics. The design of the pressure regulating valve is the same as the Piston pump, but the noise value is much lower. Compared with the standard SF variable pump, the SM series Medium Pressure Variable Displacement Vane Pump provides a higher pressure output, the maximum pressure can reach 140 bar.

CML Medium Pressure Variable Vane Pump pressure can be adjusted in the range of 15 - 140 bar, and the flow adjust range is 30 - 40 L/min. Before inquiring, you can inform the working pressure and flow, as well as the working conditions of the machine, and we will select the most suitable model for you.

CML (Camel Precision Co., Ltd.) is one of the leading manufacturers in Taiwan, as a hydraulic total solution provider, dedicated to the manufacture and sales of hydraulic products, assisting customers in building their customized power units and hydraulic systems.

Feature
Applicable system pressure is higher than 70 bar - 140 bar.
It has better pressure compensation characteristics and is suitable for hydraulic systems with frequent actions.
Application
Suitable for CNC machine tools, such as CNC lathes, CNC milling machines, CNC grinders, fixtures, etc.
Applicable to many types of dedicated hydraulic machinery, circular saw machine, fan processing machines, inner and outer diameter grinding machines, etc.
Application of leading brands of hydraulics shoemaking machinery, toe lasting machine, heel lasting machine, side and heel lasting machine, sole attaching machine.
Remark: The oil return volume of the medium-pressure variable pump is relatively large, please remind the piping design.

Hydraulic Oil: ISO VG46
Oil temperature: 40℃±5℃

Technical Data:

Model No.
VCM-SM-40C-21
VCM-SM-30D-20
VCM-SM-40B-20
VCM-SM-40B-21
VCM-SM-40D-20
VCM-SM-40D-21
VCM-SM-30C-21
