|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Delivery Time:||1-5 working days|
|Supply Ability:||1000 pcs/month|
|Valve Body:||Die-Cast Aluminum||Diaphragm Seat:||Elastomer|
|Media:||Air Or Insert Gas||Mounting:||Manifold|
|Max.Operating Pressure:||7.5kg F/cm³||Outlet Pipe:||3“|
pulse solenoid valve,
pulse jet valve
|Pipe Size(Inlet)||PT 3"|
|Pipe Size(Outlet)||PT 3"|
|Cv Flow Factor||142|
|Valve Body||Die-cast Aluminum|
|Media||Air or Inert Gas|
|Fluid Temperature||110℃ Max|
|Amblent Temperature||100℃ Max|
|Design Pressure||7.5kg f/cm³|
|Max. Operating Pressure||7.5kg f/cm³|

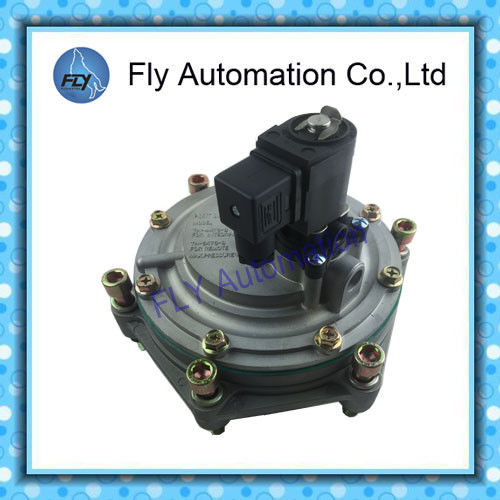

1. TAEHA TH-4475-M Pulse jet valve 3" are installed through the tank, refer to the appropriate template listed above.
2. To avoid any potential operational problems it is preferable that the valves are not mounted underneath the tank where condensation may collect. All o-rings should be coated with a silicone based lubricant or similar.
3. Dresser nut seals where used are a pressure seal only, not a structural component. Do not rely on dresser seals to retain either the tanks or blowtubes. Tanks and blowtubes must be independently restrained.
4. Tighten dresser nuts to 20Nm (15 ftlbs) max.
5. Tighten pipe outlets to 20 Nm (15 ftlbs).
6. Connect to Goyen pilot valve, if remotely actuated.
7. Ensure compressed air supply is dry and free from oil and dirt.
8. Check all cleaning system components are secure before applying pressure.
9. Apply moderate pressure and check for leaks.
10.Fully pressurise system.
11.Test fire and listen for proper actuation and crisp pulse noises.
Competitive Advantage :
Our product features
Our Services Guarantee
1) Good quality
1) Free Samples (Customer pay for the delivery cost)
2) Produce according to Customers’ instruction
2) Registration support
3) Competitive price
3) Prompt respond (Reply with 24 hours)
4) Professional Packaging
4) Photos/videos are available during production
5) None delay shipment
5) Loading inspection , and send loading photos
1, Before you endorse the parcel , please do open the package , and check out whether the items are damaged during the shipping process . If so , please do refuse to sign for the parcel, the courier will send back the package to our company. Otherwise we are not responsible for this
2, Any order is welcome; we will give discounts and combined shipping costs for you if you order more or mix order. If you have any questions, please feel free to contact us.
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
