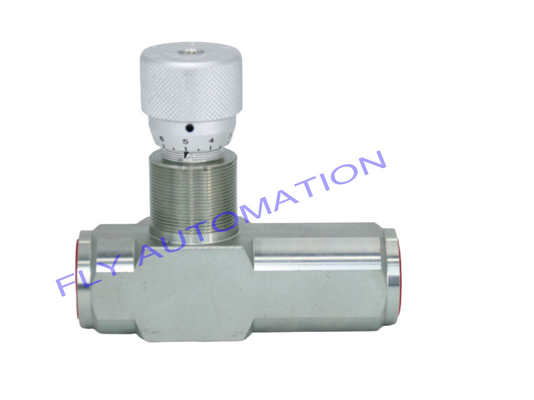

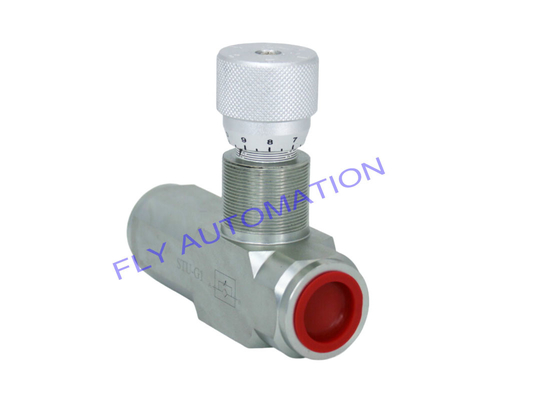

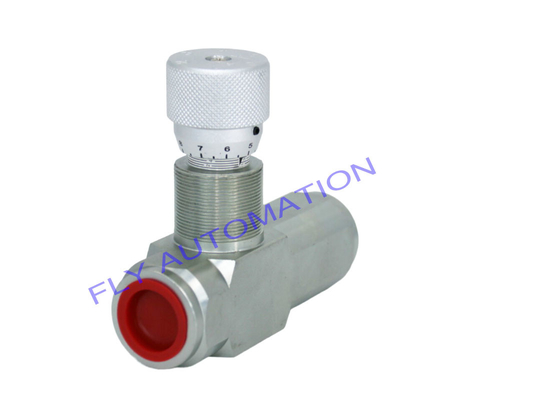

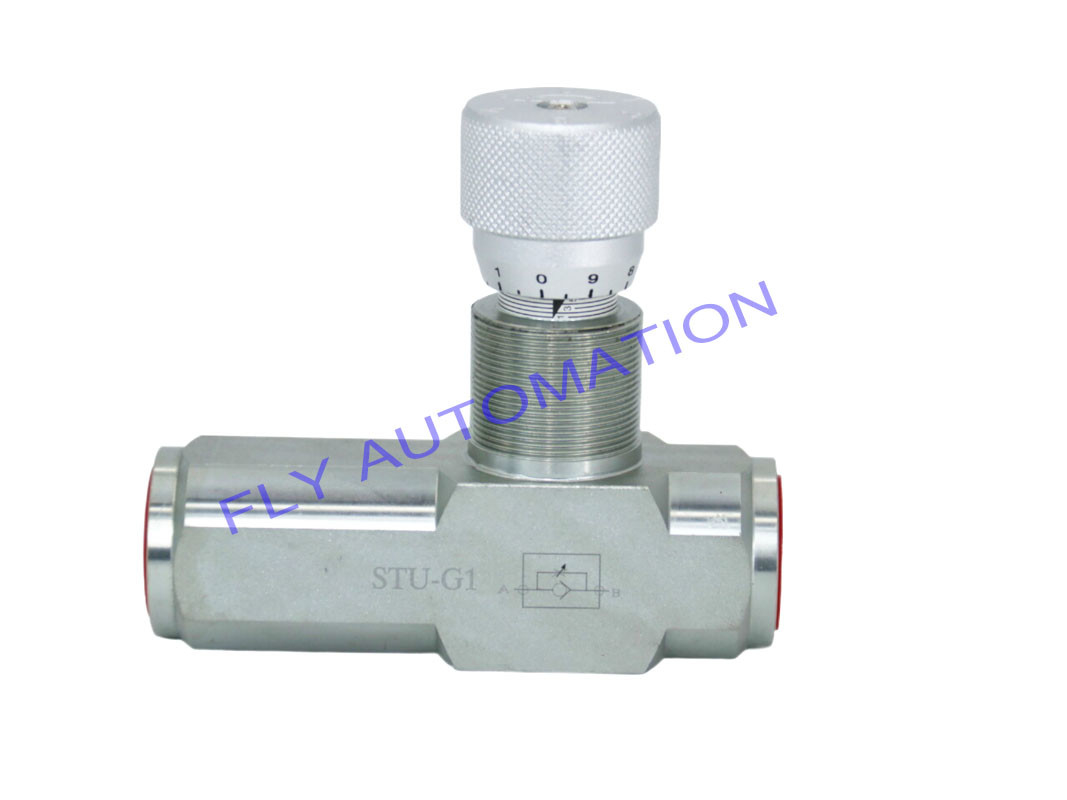

STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel

STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel

  • STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel
  • STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel
  • STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel
  • STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel
STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel
Product Details:
Place of Origin: China
Brand Name: FLY
Certification: ISO Standand
Model Number: STU-G1
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 500 PCS Per Week
Contact Now
Detailed Product Description
Model: STU-G1 Connection Thread: 1"
Max Flow L/min: 150 Max Pressure Bar: 320
Applicable Medium: Hydraulic Oil Max Pressure:: 40 Mpa
High Light:

1'' Throttle Check Speed Regulating Valve

,

STU-G1 Hydraulic Oil Regulating Valve

,

Restrictor Air Flow Control Valves

Oleoweb STU-G1'' Throttle Check Speed Regulating Valve 1 inch flow Restrictor Carbon Steel



Specification
Model Connection Thread Max flow L/min Max pressure bar
STU-G1/4 1/4" 12 400
STU-G3/8 3/8" 30 400
STU-G1/2 1/2" 50 400
STU-G3/4 3/4" 85 400
STU-G1 1" 150 320

STU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon SteelSTU-G1'' Throttle Check Speed Regulating Valve Flow Restrictor Carbon Steel

Description
Non-return valve, also called check valve, is used in hydraulic system to control the flow and cutoff of oil.
If the oil inlet and outlet of a straight through non-return valve are in a axial direction, the valve may be connected directly to the system pipe via threaded pipe fittings.
The opening pressure of non-return valve may be either 0.04MPa or 0.4MPa. The former is normally used in pressure pipes to prevent oil from flowing in reverse direction, while the latter may be normally used as a back pressure valve.
A non-return valve may be used in parallel with overflow valve, relief valve, sequence valve, throttle valve and speed control valve and so to form non-return overflow valve, non-return relief valve, non-return sequence valve, non-return throttle valve, non-return speed control valve and so on.



1.Series Code:STU Throttle Check Valve 2.Thread Code:G, NPT 3.Nominal Diameter:1/4.3/8. 1/2. 3/4. 1 inch 4.Structure:L-with impacted nut blank-without impacted nut 5.Valve body material:1 -carbon steel 6.Stem material:1-carbon steel 7.Valve core material:1- 400Cr 8.Spring material:1-SWP-B 9.Surface Treatment:1-SILVER ZINC PLATED

Throttle valve, also called check valve, is used in hydraulic system to control the flow and cutoff of oil.
If the oil inlet and outlet of a straight through check valve are in a axial direction, the valve may be connected directly to the system pipe via threaded pipe fittings.
Throttle valve may be used in parallel with overflow valve, relief valve, sequence valve, throttle valve and speed control valve and so to form non-return overflow valve, non-return relief valve, non-return sequence valve, non-return throttle valve, non-return speed control valve and so on.



Application

The flow restrictor valves are able to produce a pressure drop between inlet and outlet. They are not pressure compensated so the regulated flow can change infunction of the pressure and of the viscosity.





FAQ:

Q: Where is your factory ? Can we visit your factory?

A: Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.

Q: Could you add our logo on your products?

A: Yes,if your quantity more than 50pcs. we could add your logo on the products.


Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.



Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance.

Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.



Q. What’s the shipping way?

A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.



Warranty

All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.

If item Defective after 3 Months, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
