| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | Techno |
| Certification: | CE |
| Model Number: | RB2015 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
| Delivery Time: | within 1-30 working days after payment |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 1000 pcs |
| Model Code: | RB2015 | Color: | Black |
|---|---|---|---|
| Collision Speed: | 0.05 To 5.0 M/s | Name: | Shock Absorber |
| Stroke: | 15 Mm | ||
| Highlight: | pneumatic actuator cylinder,smc pneumatic cylinder |
||

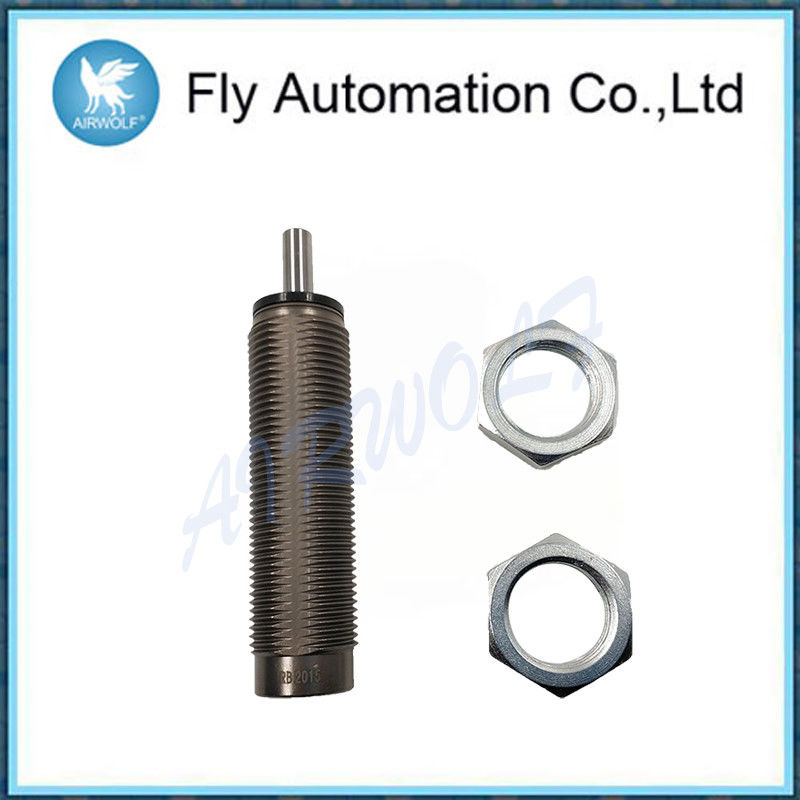

Steel Buffer RB2015 RB2725 Hydraulic Shock Absorber Steady Speed Damper
Specifications
Shock absorber is a device for accelerating vibration attenuation of frame and body to improve ride comfort of automobiles. Shock absorbers are installed in most suspension systems of automobiles.
Order code
| Model | Basic type | RB0805 | RB0806 | RB1006 | RB1007 | RB1411 | RB1412 | RB2015 | RB2725 |
| With cap | RBC0805 | RBC0806 | RBC1006 | RBC1007 | RBC1411 | RBC1412 | RBC2015 | RBC2725 | |
| Max. energy absorption (J) | 0.98 | 2.94 | 3.92 | 5.88 | 14.7 | 19.6 | 58.8 | 147 | |
| Stroke absorption (mm) | 5 | 6 | 6 | 7 | 11 | 12 | 15 | 25 | |
| Collision speed (m/s) | 0.05 to 5.0 | ||||||||
| Max. operating frequency ∗ (cycle/min) |
80 | 80 | 70 | 70 | 45 | 45 | 25 | 10 | |
| Max. allowable thrust (N) | 245 | 245 | 422 | 422 | 814 | 814 | 1961 | 2942 | |
| Ambient temperature range (°C) | –10 to 80 (No freezing) | ||||||||
| Spring force (N) |
Extended | 1.96 | 1.96 | 4.22 | 4.22 | 6.86 | 6.86 | 8.34 | 8.83 |
| Retracted | 3.83 | 4.22 | 6.18 | 6.86 | 15.3 | 15.98 | 20.5 | 20.01 | |
| Weight (g) | Basic type | 15 | 15 | 23 | 23 | 65 | 65 | 150 | 350 |
| With cap | 16 | 16 | 25 | 25 | 70 | 70 | 165 | 400 | |
| ∗ It denotes the values at the maximum energy absorption per one cycle. Max. operation cycle/min can increase in proportion to energy absorption. |
|||||||||
◈ Anti vaporization
◈ Antioxidant
◈ It does not corrode all kinds of metal and non-metal parts.
Selection Caution
1. Maximum operating frequency
2. Stroke
3. Work surface of an impact object.
4. Be aware of the return force of the impact object.
5. Selection of size
6. Drag characteristics
Maintenance
1. Check the mounting nut is not loosen.
2. Pay attention to any abnormal impact sounds or vibrations.
3. Confirm that abnormality, oil leakage, etc. in the outward surface.
4. Inspect the cap for any cracks or wear.
Caution on Selection
In order for the shock absorbers to operate accurately for long hours, it is necessary to select a model that is well-suited to your operating conditions. If the impact energy is smaller than 5% of the maximum energy absorption, select a model that is one class smaller.
Mounting Warning
1. Before performing installation, removal, or stroke adjustment, make sure to cut the power supply to the equipment and verify that the equipment has stopped.
2. Installation of protective cover
We recommend the protective cover should be installed in the case workers might be getting close during the operation.
3. The rigidity of the mounting frame must be taken into consideration
If the mounting frame lacks strength, the shock absorber will vibrate after an impact, causing bearing wear and damage. Load on mounting plate can be calculated as follows.
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Serves time
0:00 - 23:59
From Monday to Sunday
