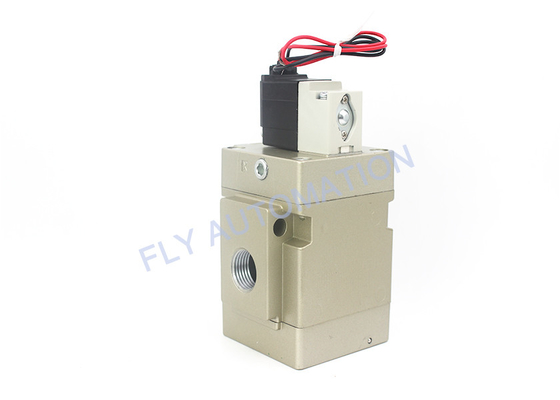

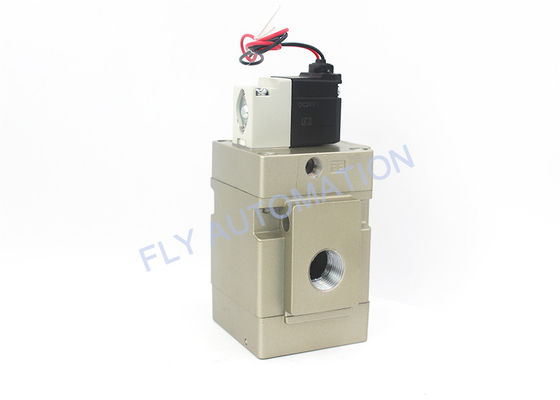

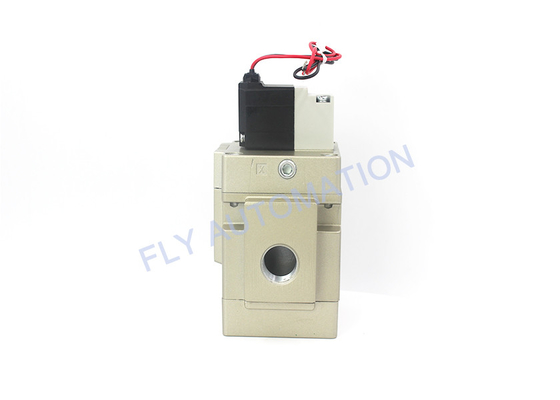

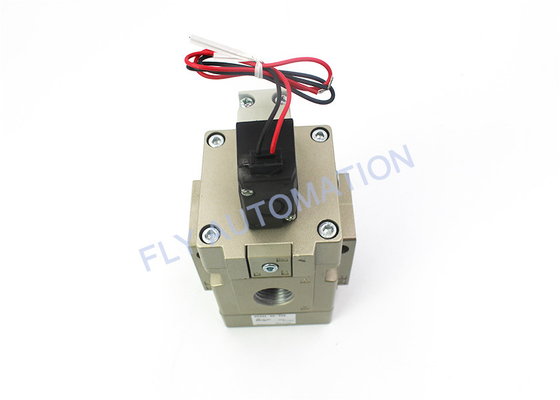

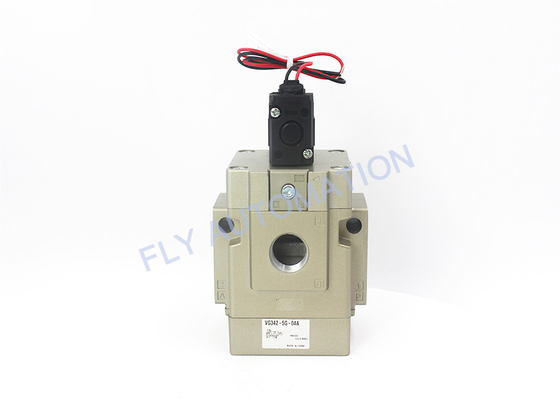

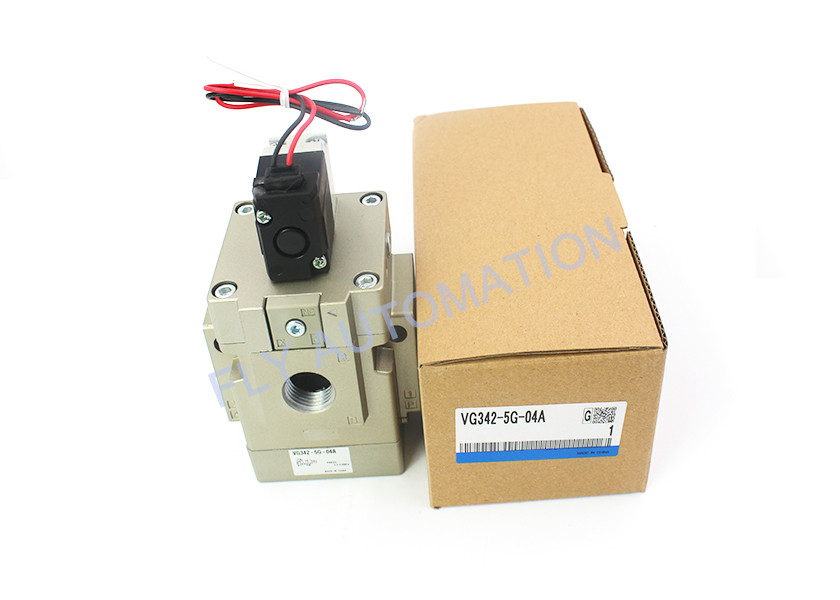

SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type

SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type

  • SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
  • SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
  • SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
  • SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
  • SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
  • SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
Product Details:
Place of Origin: Japan
Brand Name: SMC
Certification: ISO Standand
Model Number: VG342-5-G-04A
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD90 Per Each
Packaging Details: Box, Carton 18.5*9.5*8 cm
Delivery Time: 7-10 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 50 PCS Per Week
Contact Now
Detailed Product Description
Fluid: Air Lubrication: Not Required (Use Turbine Oil Class 1 ISO VG32, If Lubricated.)
ImpactVibration Resistance (m/s2): 150/50 Low Pressure: 0 To 0.2 MPa
Weight: 1.0kg Vacuum: Up To -101.2 KPa
Mounting Orientation: Unrestricted Manual Override: Push Type (Non-locking)
High Light:

3 Way Pneumatic Solenoid Valve DC24V

,

VG342-5-G-04A 3 Way Pneumatic Solenoid Valve

,

SMC VG342-5-G-04A



 SMC 3 Way VG342-5-G-04A DC24V Aluminum Alloy Solenoid Valve Pilot Operated Poppet Type







1. Low power consumption
2. No lubrication required
3. Can be used under vacuum or low pressure
4. Easy conversion to N.C., N.O., or external pilot
5. Can be used as either a selector or divider valve (External pilot type)



Low power consumption4 w DC (Standard type)
1.8 w DC(Energy-saving type)
No lubrication required
Possible to use in vacuumor under low pressures
External pilot
Vacuum: Up to -101.2 kPa
Low pressure: 0 to 0.2 MPa
Changeable actuation:N.C., N.O., or external pilot
Can be used as a selectoror divider valve (External pilot)

SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type



Precautions
1.Since PE port is the exhaust port of the pilot valve,do not attach a plug orreduce the port diameter.
2.X port is the pressure supply port of the pilot valve and PE port is the exhaustportofthepilot valve.Avoidmismatching when piping.
Continuous Duty
lf energizing the valve for a long time, use"VG342口-口口口-口口口-E”(Pilot valveassembly: "VO307E-口口口1-X84”).
1. This model is for continuous duty,not for high cycle rates. But even in lowcycle rates,if energizing the valvemore than once a day,please consultwith SMC.
2.Make sure to cycle valve at least once every 30 days.

How to Calculate the Flow Rate :
For obtaining the flow rate,refer to frontmatter.

How to Use DIN Terminal
1. Disassembly
1) After loosening the screw ①, then if the housing is pulled in the direction ofthe screw,the connector will beremoved from the body of equipment(solenoid, etc.).
2)Pull the screw ① out of the housing ②.
3) On the bottom part of the terminal block ③,there's a cut-off part g. lf a small flat head screwdriver is insertedbetween the opening in the bottom,terminal block 3 will be removed fromthe cover ②.(Refer to Figure ①.)
4) Remove the cable gland 4 and plain washer ⑤ and rubber seal ⑥.

2.Wiring
1) Pass them through the cable ⑦ in the order of cable ground ④,washer ⑤,rubber seal 6,and then insert into thehousing ②.
2) From the terminal block ③,loosen the screw , then pass the lead wire 10through,then again tighten the screw⑪.

Note 1) Tighten within the tightening torque of 0.5 N·m士15%.
Note 2) Cable outside diameter: Φ6 to Φ8 mm

3.Assembly
1)Passing through the cable ⑦, the cable gland ④, plain washer ⑤, and rubber seal ⑥,housing 2in thisorder,and then connect with the terminal block ③. After that,set the terminal block 3 on the housing 2.(Push it down until you hear the click sound.)

2) Putting rubber seal ⑥, plain washer ⑤, in this order into the cable introducingslit on the housing ,then furthertighten the cable gland 4 securely.
3) Insert the gasket 8 or between the bottom part of terminal block 3 and aplug attached to equipment,and then screw 1in from the top of the housing 2to tighten it.

Note 1) Tighten within the tightening torque of 0.5 N.m +20%.
Note 2) Connector orientation can be changed by 180 degrees dependingon how to assemble the housing ②and the terminal block ③.

SMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet TypeSMC VG342-5-G-04A 3 Way Pneumatic Solenoid Valve DC24V Aluminum Alloy Pilot Operated Poppet Type
