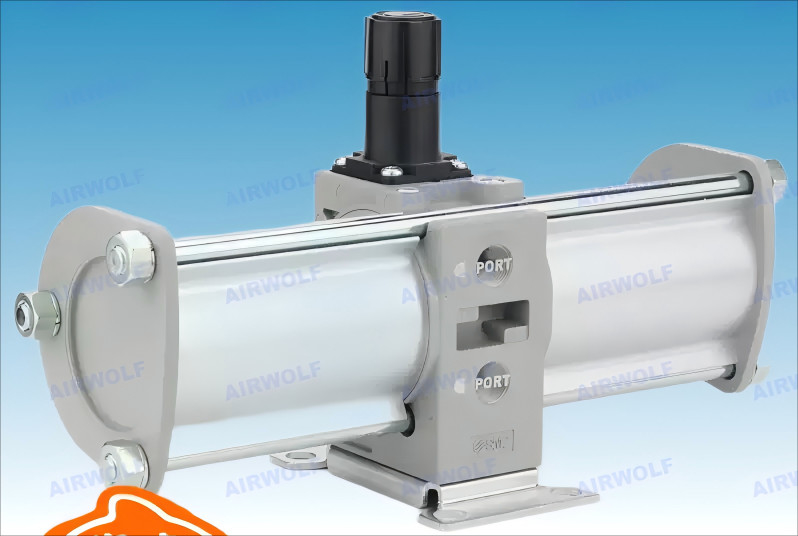

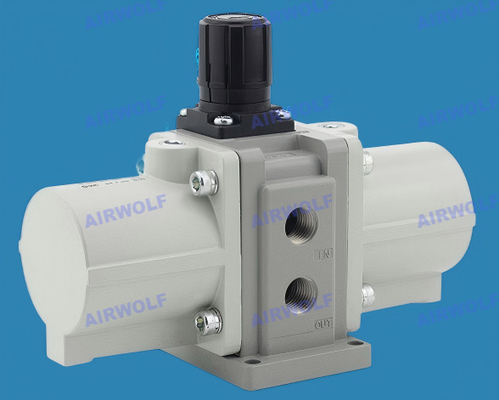

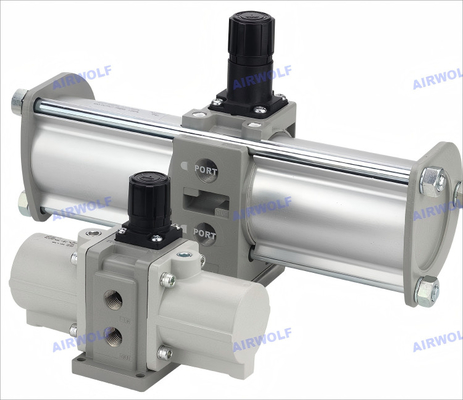

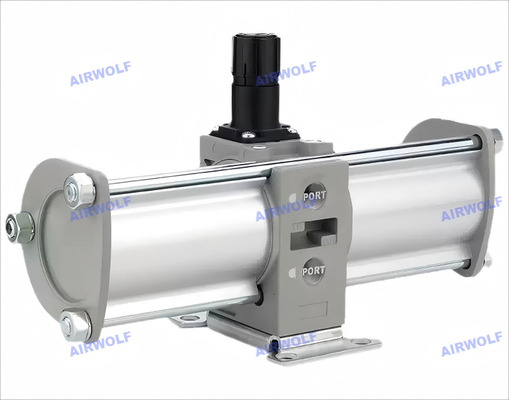

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator
video
SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator
Product Details:
Place of Origin: CHINA JAPAN
Brand Name: SMC ,OEM
Model Number: VBA10A-02 VBA20A-03 VBA40A-04 VBA10A-02 VBA20A-03 VBA40A-04 VBA22A-03 VBA42A-04 VBA43A-04 VBA10A-02GN VBA20A-03GN VBA40A-04GN VBA10A-02GN VBA20A-03GN VBA40A-04GN VBA22A-03GN VBA42A-04GN VBA43A-04GN
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 35-225USD
Packaging Details: Cartons, Pallets
Delivery Time: 2-5 workin days
Payment Terms: T/T, Western Union,Paypal, Alipay
Supply Ability: 20 Pcs per day
Contact Now
Detailed Product Description
FLuid: Compressed Air Pressure Increase Ratio: 2 To 4 Times(11A)
Max Flow Rate(L/MIN): 10A: 230 20A:1000 40A:1900 22A:1000 42A:1900 43A: 1600 11A:70 Set Pressure Range(Mpa): 10A: 0.2 To 2.0 20A And 40A: 0.2 To 1.0 22A And 42A: 0.2 To 1.0 43A: 0.2 To 1.6 11A: 0.4 To 2.0
Proof Pressure (MPa): 10A: 3 20A And 40A: 1.5 Ambient And Fluid Temperature: 2 To 50°C (No Freezing)
Installation: Horizontal Lubrication: Grease (Non-lube)
Highlight:

SMC Pneumatic Booster Regulator

,

1.6Mpa Pneumatic Booster Regulator

,

VBA10A-02 Pneumatic Booster Regulator

SMC VBA 2 times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator

Increase factory air pressure by up to 4 times!
Air-only operation requires no power supply,
reduces heat generation,and allows easy installation.



Order Codes:
VBA10A-02
VBA20A-03
VBA40A-04
VBA10A-02
VBA20A-03
VBA40A-04
VBA22A-03
VBA42A-04
VBA43A-04
VBA10A-02GN
VBA20A-03GN
VBA40A-04GN
VBA10A-02GN
VBA20A-03GN
VBA40A-04GN
VBA22A-03GN
VBA42A-04GN
VBA43A-04GN
VBAT05A1
VBAT10A1
VBAT20A1
VBAT38A1



How to order:

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator



Standard Specifications :

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator

Options/Part No:
Pressure Gauge, Silencer (When thread type is Rc or G.)

Description Model VBA10A-02 VBA10A-F02 VBA20A-03 VBA20A-F03 VBA40A-04 VBA40A-F04 VBA22A-03 VBA22A-F03 VBA42A-04 VBA42A-F04 VBA43A-04 VBA43A-F04 VBA11 A-02 VBA11A-F02
Pressure gauge G G27-20-01 G36-10-01 KT-VBA22A-7 G36-10-01 G27-20-01 G27-20-01
Silencer N AN20-02 AN30-03 AN40-04 AN30-03 AN40-04 AN40-04 AN20-02
High-noise reduction silencer S ANA1 -02 ANA1 -03 ANA1 -04 ANA1 -03 ANA1 -04 ANA1 -04 ANA1 -02
Elbow for silencer L KT-VBA10A-18

KT-VBA10A-18

Construction/Replacement Parts:

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator

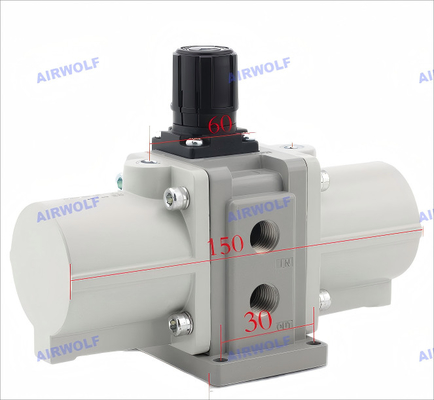

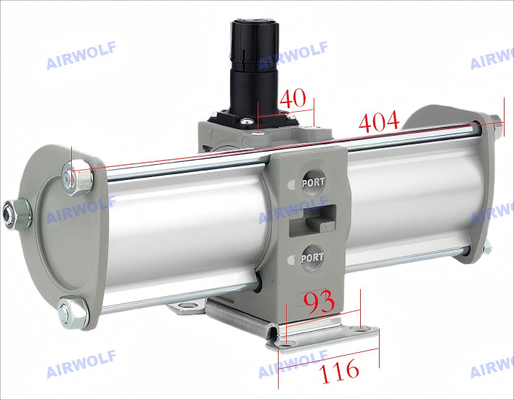

Dimesnions:

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator

SMC VBA 2 Times VBA10A-02 VBA40A-04GN Pneumatic 1.6Mpa Booster Regulator
