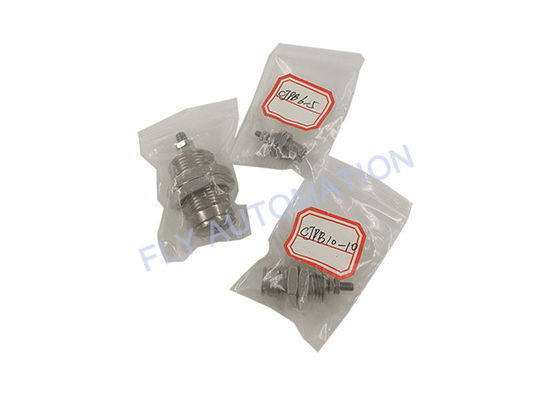

| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 1-7 work days |
| Payment Terms: | Western Union, T/T, L/C, Paypal, Credit card |
| Supply Ability: | 1000 pieces per 10 working days |
| Action: | Single Acting Spring Return | Max. Operating Pressure: | 0.7MPa |
|---|---|---|---|
| Proof Pressure: | 1.05MPa | Ambient And Fluid Temperature: | -10 To 70 ℃(Non-freezing) |
| Lubrication: | Not Required | Operating Piston Speed: | 50 To 500mm/sCushion |
| Cushion: | None | Rod End Thread: | With Thread/Without Thread |

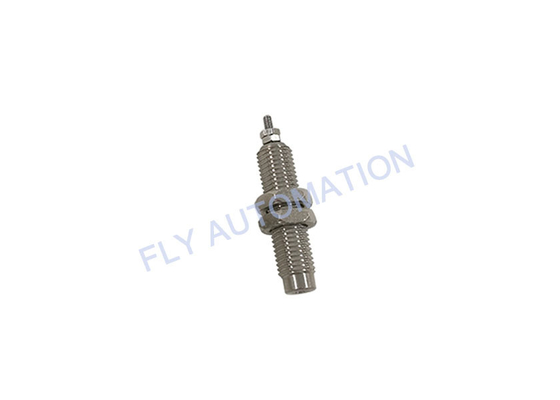

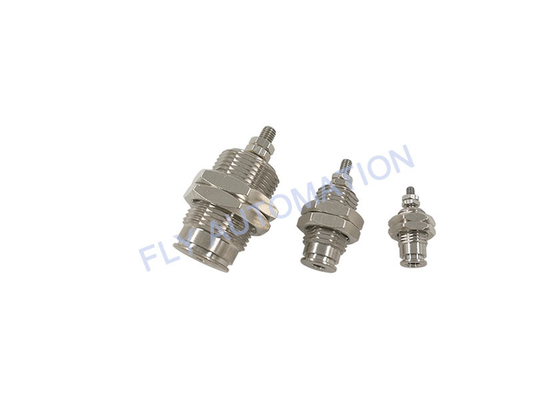

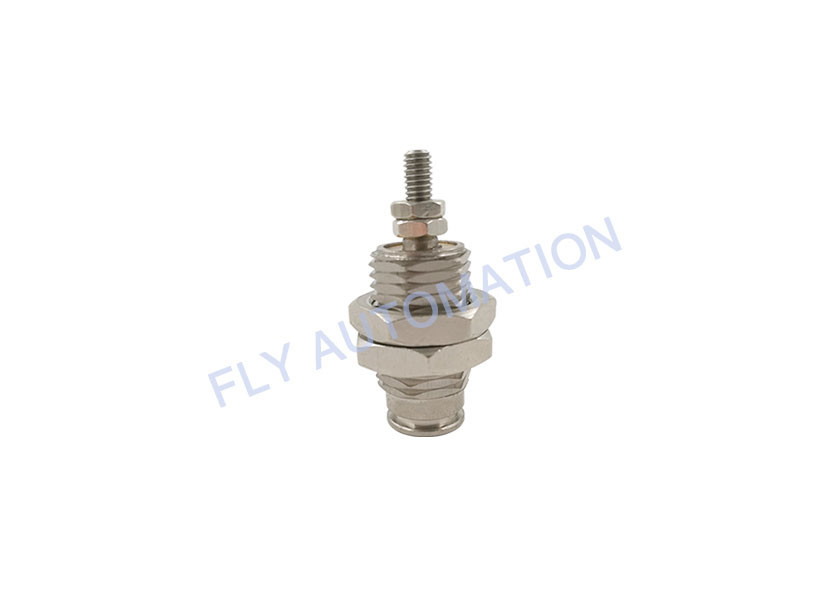

A short stroke miniature cylinder with a shorter overall length.

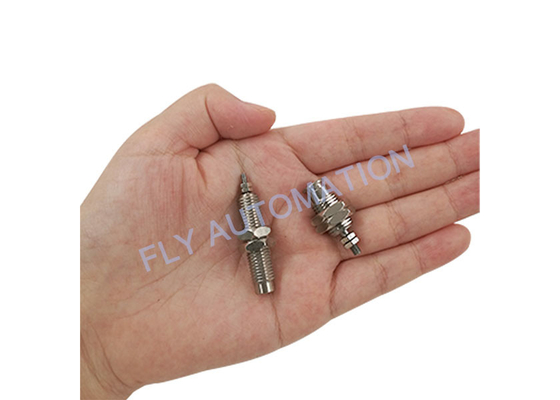

The installation space can be significantly reduced because this cylinder can be recessed directly into a machine body or installed on a panel. Thus, the machines can be made more compact.
Specifications
| Action | Single acting spring return | ||
| Max. operating pressure | 0.7MPa | ||
| Min. operating pressure | Φ6 | 0.2MPa | |
| Φ10, Φ15 | 0.15MPa | ||
| Proof pressure | 1.05MPa | ||
| Ambient and fluid temperature | -10 to 70 ℃(Non-freezing) | ||
| Lubrication | Not required | ||
| Operating piston speed | 50 to 500mm/s | ||
| Cushion | None | ||
| Stroke tolerance | +1.0 0 |
||
| Thread tolerance | JIS 2 class | ||
| Rod end thread | With thread/Without thread | ||
| Mouting method | Panel mounting | Plug mounting | |
| Standard accessories | Mouting nut(2) Hose nipple(1) Rod end nut(2)* |
Mouting nut(1) Gasket(1) Rod end out(2)* |
|
| Weight | Spring Retracting Force (N) | ||||||
| Model | Stroke(mm) | Bore size (mm) |
Stroke (mm) |
O stroke | Stroke end |
||
| 5 | 10 | 15 | |||||
| CJP( )6 | 10.6 | 13.1 | 15.6 | 6 | 5, 10, 15 | 3.92 | 1.42 |
| CJP( )10 | 28 | 33 | 38 | 10 | 5, 10, 15 | 5.98 | 2.45 |
| CJP( )15 | 72 | 82 | 92 | 15 | 5, 10, 15 | 10.8 | 4.41 |
| Component Parts | |||
| No. | Description | Material | Note |
| 1 | Cover | Brass | Electroless nickel plated |
| 2 | Piston | Stainless Steel | |
| 3 | Collar | Brass | |
| 4 | Return spring | Piano wire | Zinc chromate |
| 5 | Piston seal | NBR | |
| 6 | Gasket | NBR | special product(O ring) plug mouting only |
| 7 | Mounting nut | Brass | Electroless nickel plated |
| 8 | Rod end nut | Steel | Nickel plated |
