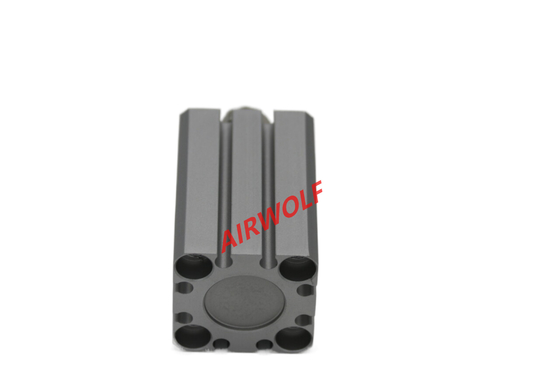

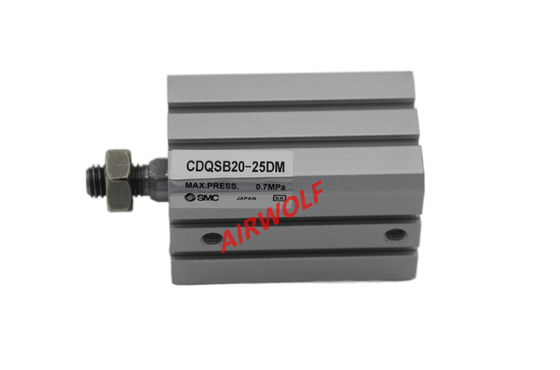

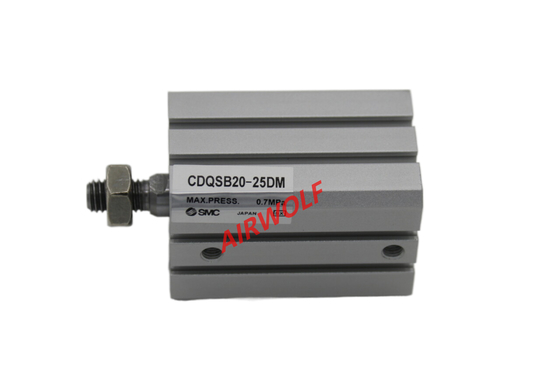

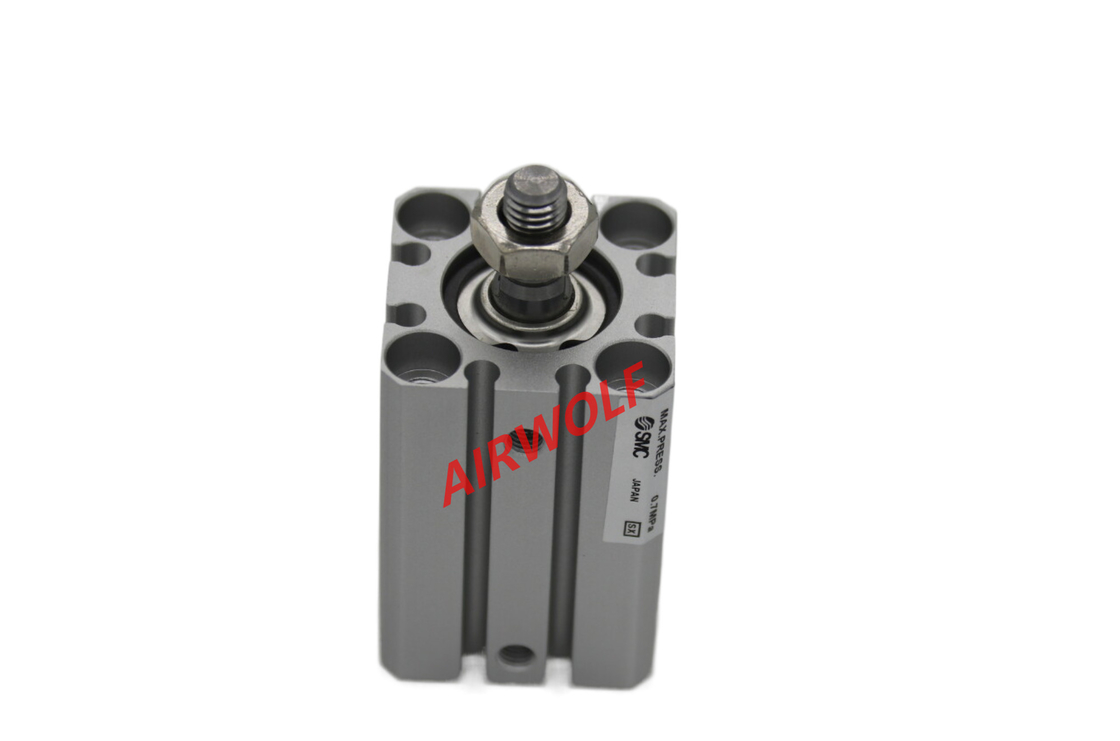

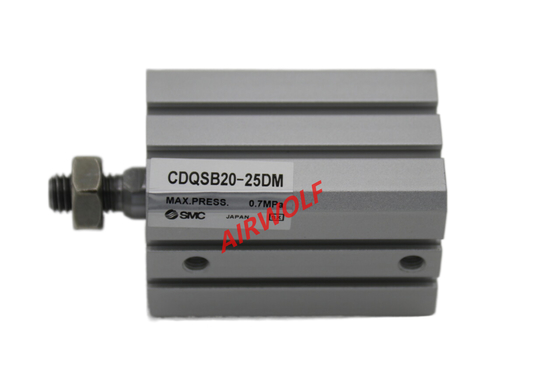

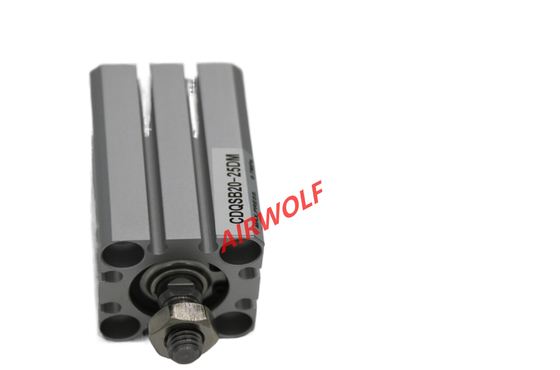

SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa

SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa

  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
  • SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa
Product Details:
Place of Origin: China
Brand Name: SMC
Model Number: CDQSB20-25DM
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD8-15 per unit
Packaging Details: Plastic bags, Carton, Wooden case, Pallets
Delivery Time: 1-7 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: Aluminum Acting: Double Acting
Working Pressure: 0.15-0.8Mpa Fluid: Air (to Be Filtered By 40μm Filter Element)
Cushion Type: Bumper Stroke: +1.0 -0
Temperature: -20- 70 ℃ Speed Range: Double Acting :30-500 Mm/s
High Light:

Double Acting Pneumatic Air Cylinders

,

0.8Mpa Compact Pneumatic Cylinder

,

Aluminum Compact Pneumatic Cylinder

SMC CDQSB20-25DM Double acting Compact pneumatic cylinder 0.15-0.8Mpa



Related item codes as below:

CQSB-12*5DM CQSB-16*5DM CQSB-20*5DM CQSB-25*5DM
CQSB-12*10DM CQSB-16*10DM CQSB-20*10DM CQSB-25*10DM
CQSB-12*15DM CQSB-16*15DM CQSB-20*15DM CQSB-25*15DM
CQSB-12*20DM CQSB-16*20DM CQSB-20*20DM CQSB-25*25DM
CQSB-12*25DM CQSB-16*25DM CQSB-20*25DM CQSB-25*25DM
CQSB-12*30DM CQSB-16*30DM CQSB-20*30DM CQSB-25*30DM
CQSB-20*35DM CQSB-25*35DM
CQSB-20*40DM CQSB-25*40DM
CQSB-20*45DM CQSB-25*45DM
CQSB-20*50DM CQSB-25*50DM
CDQSB-12*5DM CDQSB-16*5DM CDQSB-20*5DM CDQSB-25*5DM
CDQSB-12*10DM CDQSB-16*10DM CDQSB-20*10DM CDQSB-25*10DM
CDQSB-12*15DM CDQSB-16*15DM CDQSB-20*15DM CDQSB-25*15DM
CDQSB-12*20DM CDQSB-16*20DM CDQSB-20*20DM CDQSB-25*25DM
CDQSB-12*25DM CDQSB-16*25DM CDQSB-20*25DM CDQSB-25*25DM
CDQSB-12*30DM CDQSB-16*30DM CDQSB-20*30DM CDQSB-25*30DM


SMC CDQSB20-25DM Double Acting Compact Pneumatic Cylinder 0.15 - 0.8Mpa













1.When load changes in the work, the cylinder with abundant output capacity shall be ed.2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosenunder the condition of high temperature or corrosion;
3.Necessary protection measure shall be taken in the environment with higher humidity, muchdust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be cleared away before cylinder is connected withpipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40um or below.
6.As both of the front cover and piston of the cylinder are short, typically too large stroke cannot be ed.
7.Anti-freezing measure shall be adopted under low temperature environment to preventmoisture freezing.
8.The cylinder shall avoid the influence of side load in operation maintain the normal work ofcylinder and extend the service life.
9.lf the cylinder is dismantled and stored for a long time, pay attention to conduct anti-rusttreatment to the surface.Anti-dust caps shall be added in air inlet and outlet ports.













Airwolf Automation Provide all kinds of Airtac Multi mount,free mounting pneumatic cylinder, bore size from 6mm to 32 mm. Stroke from 5mm to 60mm. All the cylinders are with high quality , resonable prices and fast delivery , we can supply door to door service to all over the world,Mini order is 1 unit, You are welcome to send enquiries anytime and anywhere.
