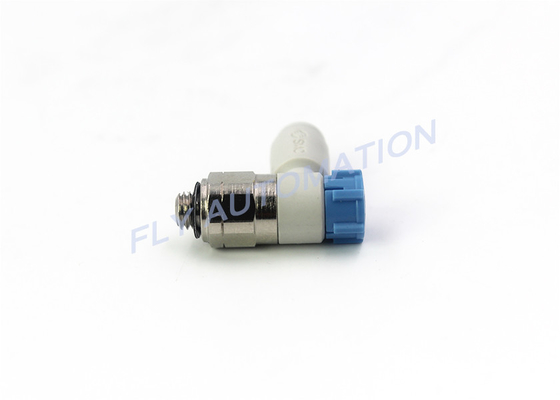

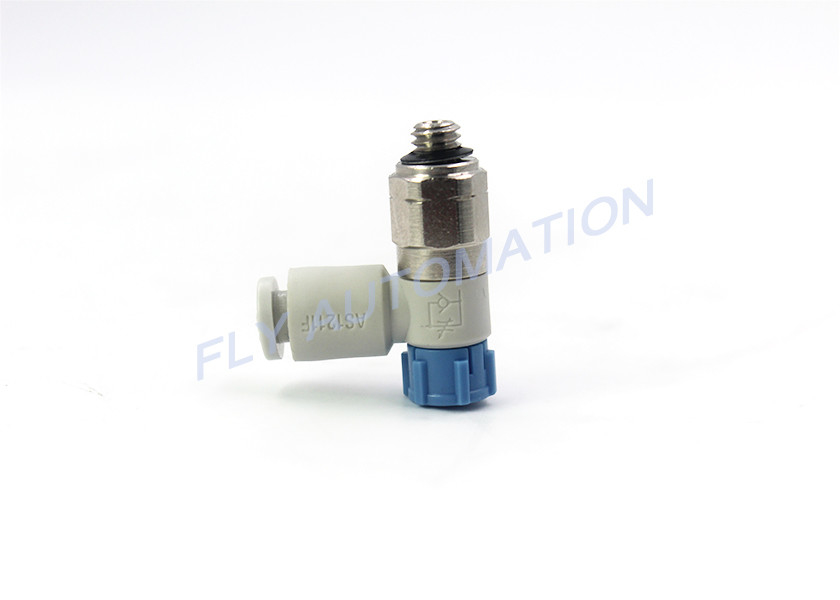

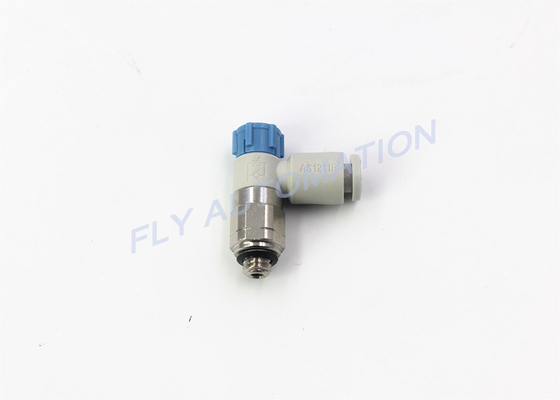

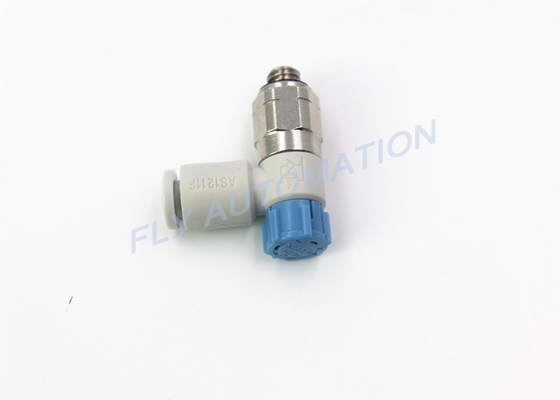

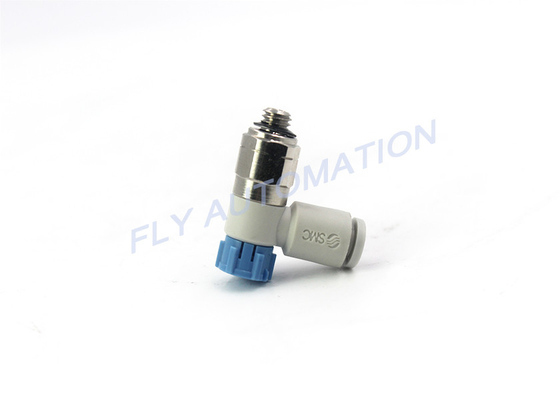

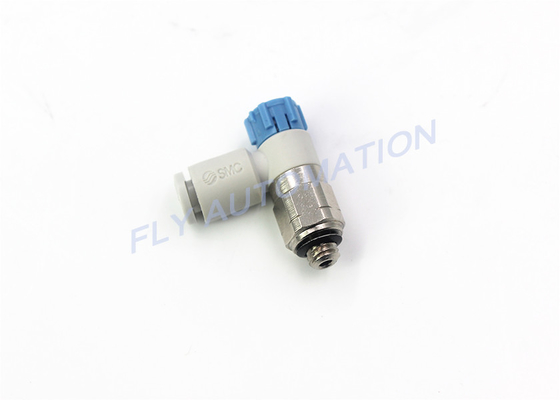

SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve

SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve

  • SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
  • SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
  • SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
  • SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
  • SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
  • SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
Product Details:
Place of Origin: Japan
Brand Name: SMC
Certification: ISO Standand
Model Number: AS1211F
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 10000 PCS Per Week
Contact Now
Detailed Product Description
Fluid: Air Proof Pressure: 1.5 MPa
Max. Operating Pressure: 1 MPa Min. Operating Pressure: 0.1 MPa
Ambient And Fluid Temperature: – 5 To 60°C (No Freezing) Applicable Tubing Material: FR Double Layer, FR Three-layer, FR Soft Nylon, Nylon, Soft Nylon, Polyurethane
High Light:

SMC AS1211F

,

Pneumatic Speed Regulating Connector AS1211F

,

AS1211F Series

FR double layer, FR Three-layer, FR soft nylon, Nylon, Soft nylon, Polyurethane





Uses flame resistant resin as standard.(UL standard V-O)
Available with a restrictor (Made to order: -X214, -X21)
Made to Order
1. Lubricant: Vaseline
Ex.)AS1201-M5-F04-X12

2. Grease-free (Seal: Fluorine Coating)+Throttle Valve (without Check Valve)
Ex.)AS1201-M5-F04-X21
Note 1) Not particle-free
Note 2) This product is a restrictor without a check valve (no control direction).Be
aware that all part numbers are for a meter-out type; there is no part number for a meter-in type.


3. Throttle Valve (Without Check Valve)X214
Ex.) AS1201-M5-F04-X214
Note ) This product is a restrictor without a check valve (no control direction).
Be aware that all part numbers are for a meter-out type; there is no part number for a meter-in type.

Component Parts
No. Description Material Note
1 Body A Zinc alloy Chromate plated
2 Body B Brass Electroless nickel plated
3 Needle Brass Electroless nickel plated
4 Needle guide Brass (1)
5 Seat ring Brass (2)
6 Lock nut Steel (3) Meter-out Zinc chromate plated Note 4)
Meter-in Black zinc chromate plated
7 Handle Brass Electroless nickel plated
8 Bushing PBT
9 Cassette PBT/Stainless steel
10 U-packing HNBR
11 Seal NBR
12 O-ring NBR
13 O-ring NBR
14 O-ring NBR
15 O-ring NBR
16 Gasket NBR/Stainless steel M5 port only



Model Port size Applicable tubing O.D.
4 6 8 10 12
AS12▢ 1-M5 M5 x 0.8
AS22▢ 1-01 R 1/8
AS22▢ 1-02 R 1/4
AS32▢ 1-02 R 1/4
AS32▢ 1-03 R 3/8
AS42▢ 1-04 R 1/2
Note 1) : Brass parts are electroless nickel plated, provided as standard. (N specifications)
Specifications
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature – 5 to 60°C (No freezing)
Applicable tubing material FR double layer, FR Three-layer, FR soft nylon, Nylon, Soft nylon, Polyurethane
Option Round lock nut, Electroless nickel plated Note)

Meter-out and meter-in types can be visually differentiated by the lock nut.

The lock nut on the meter-out type is zinc chromated (the round lock nut is electroless nickel plated) while the meter-in type is black zinc chromate plated.

Note) Brass parts are all electroless nickel plated.




SMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control ValveSMC AS1211F Pneumatic Speed Regulating Connector With Lock Control Valve
