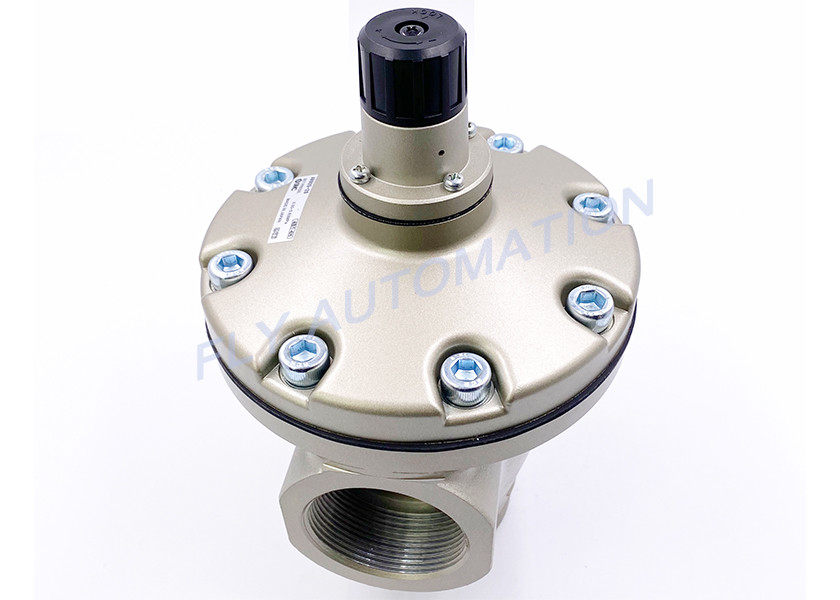

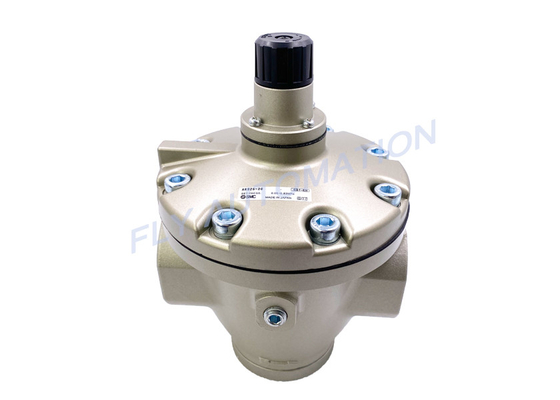

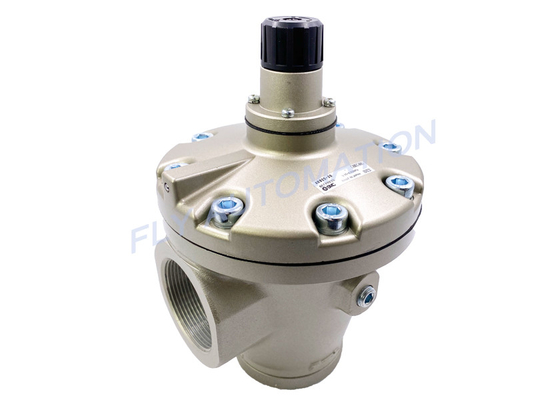

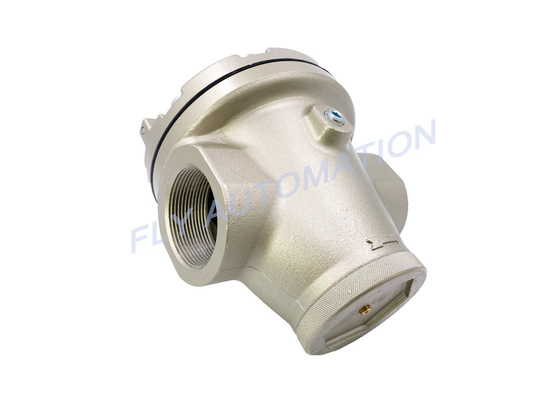

SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units

SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units

  • SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
  • SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
  • SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
  • SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
  • SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
  • SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units
Product Details:
Place of Origin: Japan
Brand Name: SMC
Certification: ISO Standand
Model Number: AR925-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD260 Per Each
Packaging Details: Box, Carton
Delivery Time: 7 working Days
Payment Terms: T/T, Western Union, MoneyGram Paypal
Supply Ability: 50 PCS Per Week
Contact Now
Detailed Product Description
Proof Pressure: 1.5 MPa Max. Operating Pressure: 1.0 MPa
Fluid: Air Air Consumption (for Bleed Hole): 5 L/min (ANR) (at Maximum Pressure)
Pressure Gauge Port Size: 1 4 Ambient And Fluid Temperature: –5 To 60°C (No Freezing)
High Light:

SMC Pressure Regulating Valve

,

AR925-20 Pressure Regulating Valve

SMC AR925-20 Pilot Operated Regulator 2" Air Preparation Units Pressure Regulating Valve







Standard Specifications
Model AR425 AR435 AR625 AR635 AR825 AR835 AR925 AR935
Port size 1/4, 3/8, 1/2 3/4, 1 1 1 4, 11 2 2
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Set pressure range (MPa) (1) 0.05 to 0.83 0.02 to 0.2 0.05 to 0.83 0.02 to 0.2 0.05 to 0.83 0.02 to 0.2 0.05 to 0.83 0.02 to 0.2
Air consumption (for bleed hole) (2) 5 L/min (ANR) (at maximum pressure)
Pressure gauge port size 1 4
Ambient and fluid temperature –5 to 60°C (No freezing)
Construction Internal pilot relieving type (Pilot air is always bleeding.)
Weight (kg) 0.7 1.1 2.5 4.5
Note 1) Outlet pressure range: P2 is 90% of P1 or less.
Note 2) Air consumption differs depending on the set pressure. Due to the construction, the pressure gap between inlet and outlet cannot be set within
0.03 MPa, even if the knob is set at the maximum.
Accessory (Option)/Part No.
Part no.
Description Model AR4 5 AR6 5 AR8 5 AR9 5
Bracket B24P B25P
Pressure gauge with limit indicator Note 1) G46-10-02 (Max. 1.0 MPa), G46-2-02 (Max. 0.2 MPa)
Note 1) • In the gauge part no. (e.g. G46-10-02),  indicate kind of the connecting thread. Put nothing                  for Rc and “N” for NPT thread.
             • Please consult with SMC for NPT pressure gauge.
Note 2)   Use caution not to tighten excessively when mounting a pressure gauge, otherwise it may                       Result in a breakdown. Use a sealant tape for sealing.

SMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation UnitsSMC AR925-20 Pressure Regulating Valve Pilot Operated Regulator 2" Air Preparation Units

Warning
1.Install the valve guide (on the opposite side of the knob) 60 mm away from the ground surface to facilitate maintenance inspection.
2.Do not use the regulator with flow ex-ceeding the Max.flow indicated in“"Flow Rate Characteristics" as this can cause failure in pressure adjustment.

Caution
1.Release the lock to adjust the pressure.
After the adjustment, engage the lock.Failure to observe this procedure could damage the knob or cause the outlet pressure to fluctuate.
<Lock operating method> Loosen the knob locking screw to un-lock it, and tighten it to lock it.
2.Please contact US if this product is to be used between solenoid valve andactuator.
