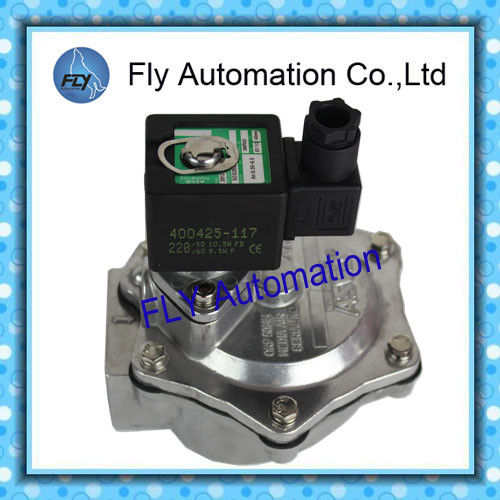

SCG353A047,8353G039,8353G061 Air Pulse Jet Valves NBR(nitrile/buna-n)

SCG353A047,8353G039,8353G061 Air Pulse Jet Valves NBR(nitrile/buna-n)

  • SCG353A047,8353G039,8353G061  Air Pulse Jet Valves NBR(nitrile/buna-n)
  • SCG353A047,8353G039,8353G061  Air Pulse Jet Valves NBR(nitrile/buna-n)
  • SCG353A047,8353G039,8353G061  Air Pulse Jet Valves NBR(nitrile/buna-n)
  • SCG353A047,8353G039,8353G061  Air Pulse Jet Valves NBR(nitrile/buna-n)
SCG353A047,8353G039,8353G061  Air Pulse Jet Valves NBR(nitrile/buna-n)
Product Details:
Place of Origin: China, USA
Certification: CE
Model Number: SCG353A047,8353G001
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD22-32
Packaging Details: Boxes, Cantons, Plastic bags
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T in advance
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
Highlight:

pulse solenoid valve

,

pulse jet valve

SCG353A047, ,8353G039,8353G061 Air Pulse Jet Valves NBR(nitrile/buna-n)



Ordering Code Port Size Orifice Flow Value Coil type
G Threaded mm m3/h l/min
SCG353A047 1 1/2" 52 46 768 400425
SCG353A050 2" 66 77 1290 400425
SCG353A051 2 1/2" 66 92 1540 400425
SCG353.060 3" 75 170 2833 400425



Construction
Body Aluminum
Core tube Stainless steel
Core and Plugnut Stainless steel
Core Spring Stainless steel
Sealing & disc NBR(nitrile/buna-n)
Diaphragm TPE(hytrel)
Shading coil Copper
Connector DIN43650A
Voltage DC: 24V, AC: 24V, 48V, 110V, 230V
Working Temperature -20 to +85℃
Protection Class IP65
Coil Insulation Class F
Working Pressure 0.35-0.85Mpa

SCG353A047,8353G039,8353G061  Air Pulse Jet Valves NBR(nitrile/buna-n)



Ordering Code A B C D E F G H J K L Weight
SCG353A047 80 50 30 71 130 136 45 G 3/8" 131 160 178 1.40
SCG353A050 80 50 30 95 168 165 45 G 3/8" 165 210 227 2.90
SCG353A051 80 50 30 95 168 165 45 G 3/8" 165 210 227 2.60
SCG353.060 80 50 30 143 240 192 45 G 1/2" 165 258 275 4.10
