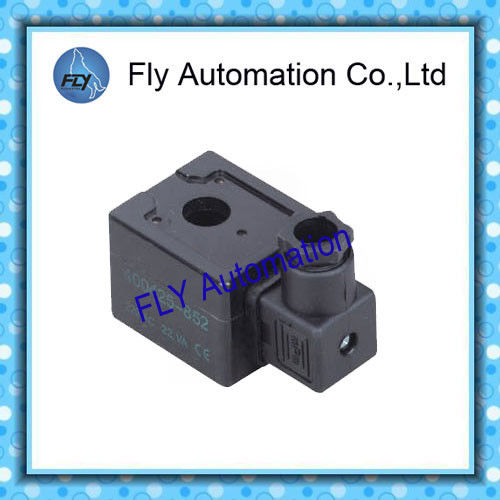

Replacement Electromagnetic Induction Coil , 400425142 , 400425117

Replacement Electromagnetic Induction Coil , 400425142 , 400425117

  •  Replacement Electromagnetic Induction Coil , 400425142 , 400425117
 Replacement Electromagnetic Induction Coil , 400425142 , 400425117
Product Details:
Place of Origin: CN
Certification: ce
Model Number: 400325-105, 400325-205, 400425-105, 400425-205 , 400525-105, 400525-205,400325-118 , 400325-218, 400
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD2-18
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-30 working days after payment
Payment Terms: T/T , Western Union
Supply Ability: 1000 pcs
Contact Now
Detailed Product Description
High Light:

Explosionproof coils

,

Induction Coil

Replacement Electromagnetic Induction Coil , 400425142 , 400425117

COIL Specifications

1.Insulation class: H
2.Connector:spade plug or DIN43650A
3.Connector specification: with applicable standards;
4.Electrical safety:to IEC 335 / EN 60730-1 standard
5.Electrical enclosure protection: epoxy moulded coil and ingress protection rating of, generally, IP65 or IP67 to EN 60529/ IEC 529
6.Available Standard voltages: DC24V,DC48V,AC24V,AC48V,AC115V,AC230V
7.Power rating: AC: 22.5 VA DC:9/11.2W
8.Replacement for :SCG353A047,SCG353A050,SCG353A051,SCXE353.060
Ordering Code of Replacement coils:

  24 V DC 48 V DC 24 V AC 48 V AC 115V AC 230 V AC
CM6FT 400325-142 400325-144 400325-101 400325-105 400325-118 400325-117
CM6FB 400325-242 400325-244 400325-201 400325-205 400325-218 400325-217
CMXX-FT 400425-142 400425-144 400425-101 400425-105 400425-118 400425-117
CMXX-FB - - 400425-201 400425-205 400425-218 400425-217
CMXX-FF 400425-342 400425-344 - - - -

 Replacement Electromagnetic Induction Coil , 400425142 , 400425117














Dimension(mm):
 Replacement Electromagnetic Induction Coil , 400425142 , 400425117
