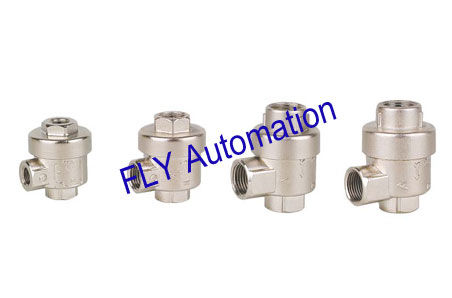

Name: XQ Series Quick Exhaust Valve with 1/8", 3/8", 1/2", 3/4", 1" Port Size 0.12~1.0MPa Operating Pressure and -5~60℃ No Freezing Working Temperature Range
Brand: Airwolf Automation
SKU: XQ170600, XQ170610, XQ171000, XQ171500, XQ1712000, XQ1712500
Price: 7.00 USD
Availability: InStock

Home Products Air Flow Control Valves

XQ Series Quick Exhaust Valve with 1/8", 3/8", 1/2", 3/4", 1" Port Size 0.12~1.0MPa Operating Pressure and -5~60℃ No Freezing Working Temperature Range

Product Details:

Place of Origin:	China
Brand Name:	Camozzi, SXPC, AIRWOLF or OEM
Model Number:	XQ170600, XQ170610, XQ171000, XQ171500, XQ1712000, XQ1712500

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	2-13USD
Packaging Details:	Plastic bags, Carton, Pallet or according to Customers' Requirement
Delivery Time:	1-7 work days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 pcs per week

Contact Now

Detailed Product Description

Material:	Brass	Operating Pressure:	0.12~1.0MPa
Working Temperature Range:	–5~+60℃	Port Size:	1/8", 3/8", 1/2", 3/4", 1"
Function:	Speed Control	Working Medium:	Dry Compressed Air Filtered By 40μm
Highlight:	air flow control valve , air flow check valve

XQ Series Quick Exhaust Valve with 1/8", 3/8", 1/2", 3/4", 1" Port Size 0.12~1.0MPa Operating Pressure and -5~60℃ No Freezing Working Temperature Range

Order Codes:

Type	Port Size	Positions
XQ170600	1/8"	3/2 way
XQ170610	1/8"	3/2 way
XQ171000	3/8"	3/2 way
XQ171500	1/2"	3/2 way
XQ1712000	3/4"	3/2 way
XQ1712500	1"	3/2 way

Symbol:

XQ Series Quick Exhaust Valve with 1/8", 3/8", 1/2", 3/4", 1" Port Size 0.12~1.0MPa Operating Pressure and -5~60℃ No Freezing Working Temperature Range

Specification:

Model	XQ170600	XQ171000	XQ171500	XQ1712000	XQ1712500
Port Size	G1/8"	G3/8"	G1/2"	G3/4"	G1"
Diameter	6mm	8mm	15mm	20mm	25mm
Fluid	Dry Compressed air filtered by 40μm
Operating Pressure	0.12~1.0Mpa
Ambient Temperature	-5~60℃(No Freezing)
Operating Life	≥200times
Reversing Time	≤0.03s	≤0.04s	≤0.05s	≤0.06s	≤0.06s

Dimension:

XQ Series Quick Exhaust Valve with 1/8", 3/8", 1/2", 3/4", 1" Port Size 0.12~1.0MPa Operating Pressure and -5~60℃ No Freezing Working Temperature Range

Tag:

Contact Person: Jaren

Tel: 0086-15257858856

Fax: 86-152-57858856
