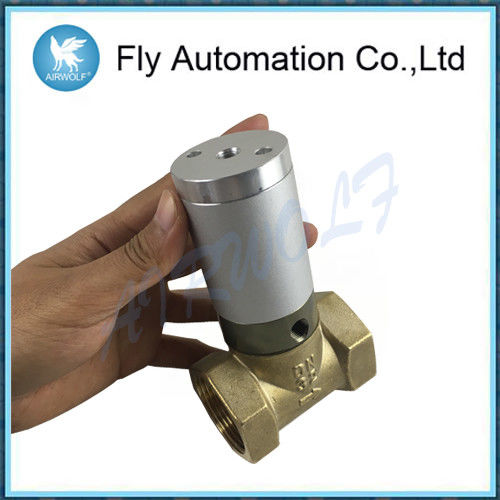

Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve

Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve

  • Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve
  • Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve
  • Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve
  • Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve
  • Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve
Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve
Product Details:
Place of Origin: China
Brand Name: Techno
Certification: ISO 9001,CE
Model Number: Q22HD-32
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: 5 working days after payment
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 2000 pcs/month
Contact Now
Detailed Product Description
Material: Aluminium, Brass Pressure: 0~0.8 MPa
Temperature: -10~75 ℃ Port Size: DN32
Seals: Nitrile
High Light:

auto vehicle parts

,

car auto parts

Q22HD-32 DN32 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve

Technical Paremeter
1Acclimation:
1) Temperature: -10~+55℃;
2) Working Medium: clean air
2 Humidity: less than 85%



Specifications

Model Flow Orifice mm Medium Working Pressure Control Pressure Temperature range Kv m3/k
Q22HD-15 13 clear air
water
oil
0~0.8 Mpa 0.4~0.8 Mpa 0.5~60 ℃ 4
Q22HD-20 16 5
Q22HD-25 22 10
Q22HD-40 35 25
Q22HD-50 45 40


Dimension
Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve

Model A B C D H M
Q22HD-15 46 26 30 G1/2" 96 G1/8"
Q22HD-20 54 32 37 G3/4" 107 G1/8"
Q22HD-25 66 34 37 G1" 118 G1/8"
Q22HD-40 80 53 65 G1 1/2" 162 G1/8"
Q22HD-50 105 66 78 G1/8" 180 G1/4"



Photo Show

Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valveQ22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valveQ22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve

Q22HD-32 DN32 Pneumatic control 2/2 Way Pneumatic Tube Valve fluid valve sprinkler copper valve



Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.



Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.



Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
