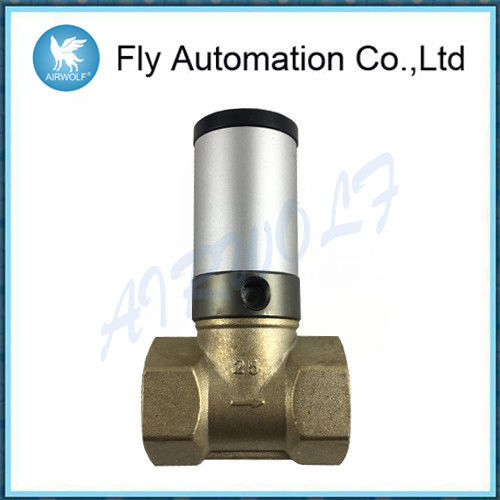

Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve

Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve

  • Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve
  • Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve
  • Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve
  • Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve
Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve
Product Details:
Place of Origin: China
Brand Name: Techno
Certification: ISO 9001,CE
Model Number: Q22HD-25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-7 working days after payment
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 2000 pcs/month
Contact Now
Detailed Product Description
Material: Aluminium, Brass Pressure: 0~0.8 MPa
Temperature: -10~75 ℃℃ Port Size: DN25
Seals: Nitrile
High Light:

automotive car parts

,

auto vehicle parts

Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve

Specifications

Model Flow Orifice mm Medium Working Pressure Control Pressure Temperature range Kv m3/k
Q22HD-15 13 clear air
water
oil
0~0.8 Mpa 0.4~0.8 Mpa 0.5~60 ℃ 4
Q22HD-20 16 5
Q22HD-25 22 10
Q22HD-40 35 25
Q22HD-50 45 40



Technical Paremeter
Acclimation:
1.  Temperature: -10~+55℃;
2. Working Medium: clean air
3. Humidity: less than 85%


Dimension
Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve

Model A B C D H M
Q22HD-15 46 26 30 G1/2" 96 G1/8"
Q22HD-20 54 32 37 G3/4" 107 G1/8"
Q22HD-25 66 34 37 G1" 118 G1/8"
Q22HD-40 80 53 65 G1 1/2" 162 G1/8"
Q22HD-50 105 66 78 G1/8" 180 G1/4"



Photo Show

Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve

Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valveQ22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve

Q22HD-25 1 inch water valve sprinkler stop copper valve DN25 Two position two way fluid gas control pipe valve


Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.



Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.



After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
