Model Code: | S36 | Applies To: | Paint & Varnish Processing |
---|---|---|---|
DUTY CYCLE: | Continuous | WORKING PRESSURE: | 2 Bar To 6 Bar |
PNEUMATIC CIRCUIT: | Filter + Flow Control Valve + Lubrification + 3/2 Ways Valve | AIR SUPPLY QUALITY: | Class 5.4.4. |
WORKING TEMPERATURE: | -20 °C To 200 °C | TECHNOLOGY: | Rotary Vibration - High Frequency |
Highlight: | Outdoor Pneumatic System Components,Friction Reduction Pneumatic System Components,Separation Air Knocker Pneumatic System Components |

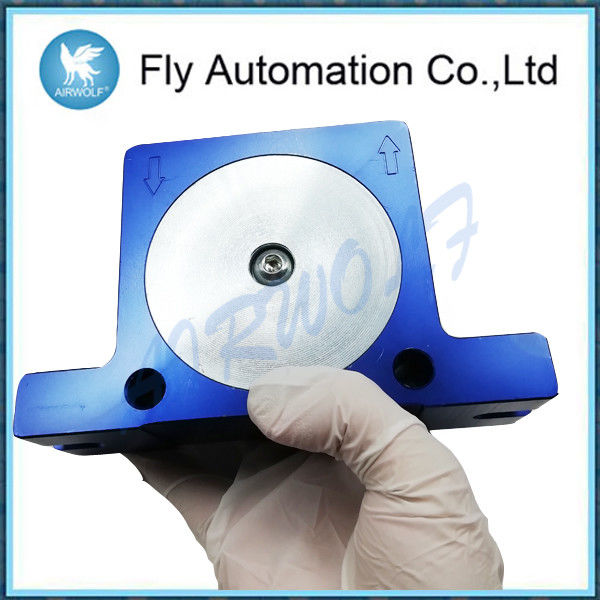

1. Product name: S30 Dry and granular Aluminium body and zinc plate cover dry powders Rotary vibration - high frequency
2. Drawing
DIMENSIONAL SPECIFICATIONS | |||||||||||||||
MODEL | A | B | C | D | E | F | IN-OUT | WEIGHT | |||||||
mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | kg | lb | ||
S8 | 50 | 2 | 86 | 3.4 | 68 | 2.7 | 12 | 0.5 | 20 | 0.8 | 7 | 0.3 | 1/8" BSPP | 0.13 | 0.29 |
S10 | 50 | 2 | 86 | 3.4 | 68 | 2.7 | 12 | 0.5 | 20 | 0.8 | 7 | 0.3 | 1/8" BSPP | 0.13 | 0.9 |
S13 | 65 | 2.6 | 113 | 4.5 | 90 | 3.5 | 16 | 0.6 | 25 | 1 | 9 | 0.4 | 1/4" BSPP | 0.26 | 0.57 |
S16 | 65 | 2.6 | 113 | 4.5 | 90 | 3.5 | 16 | 0.6 | 28 | 1.1 | 9 | 0.4 | 1/4" BSPP | 0.3 | 0.66 |
S20 | 80 | 3.2 | 128 | 5.1 | 104 | 4.1 | 16 | 0.6 | 33 | 1.3 | 9 | 0.4 | 1/4" BSPP | 0.53 | 1.17 |
S25 | 80 | 3.2 | 128 | 5.1 | 104 | 4.1 | 16 | 0.6 | 38 | 1.5 | 9 | 0.4 | 1/4" BSPP | 0.63 | 1.39 |
S30 | 100 | 3.9 | 160 | 6.3 | 130 | 5.1 | 20 | 0.8 | 45 | 1.8 | 11 | 0.4 | 3/8" BSPP | 1.13 | 2.49 |
S36 | 100 | 3.9 | 160 | 6.3 | 130 | 5.1 | 20 | 0.8 | 50 | 2 | 11 | 0.4 | 3/8" BSPP | 1.34 | 2.95 |
3. Suit for
PRODUCT SERIES | APPLICATIONS | POWDERS | FEATURES | BENEFITS |
S | Silos | Dry powders | Filter sleeve cleaning | Economical |
Hoppers | Granules | Suitable for outdoor use | Low air consumption | |
Piping | Plastics | Resistant to oxidation | High frequency vibration | |
Chutes | Sand | Atex II2G c Tx | ||
Compacting | Ashes | Atex II2D c Tx | ||
Cement | ||||
Lime |
4. S - ROTARY PNEUMATIC VIBRATORS - BALL
APPLICATION: Hopper and silo - screen - vibrating table - chute
POWDER: Dry and granular
PROBLEM SOLVING: Friction reduction - separation
5. Product show
6. Applies to
1. Animal Feed Milling
2. Flour Milling
3. Paint & Varnish Processing
4. Plastics Processing
7. Data
MODEL | VIBRATION | F.C. MAX | AIR CONSUMPTION | ||||||||||||
Vpm | 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) | 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) | |||||||||
2 bar (29 psi) |
4 bar (58psi) |
6 bar (87 psi) |
KG | LB | KG | LB | KG | LB | l/min | CF/min | l/min | CF/min | l/min | CF/min | |
S8 | 25500 | 31000 | 35000 | 13 | 29 | 26 | 57 | 36 | 79 | 83 | 2.9 | 145 | 5.1 | 195 | 6.9 |
S10 | 22500 | 28000 | 34000 | 25 | 55 | 47 | 103 | 71 | 156 | 92 | 3.2 | 150 | 5.3 | 200 | 7.1 |
S13 | 15000 | 18500 | 22500 | 32 | 70 | 55 | 121 | 87 | 191 | 94 | 3.3 | 158 | 5.6 | 225 | 7.9 |
S16 | 13000 | 17000 | 19500 | 45 | 99 | 80 | 176 | 110 | 242 | 122 | 4.3 | 200 | 7.1 | 280 | 9.9 |
S20 | 10500 | 14500 | 16500 | 72 | 158 | 122 | 268 | 172 | 378 | 130 | 4.6 | 230 | 8.1 | 340 | 12 |
S25 | 9200 | 12200 | 14000 | 93 | 205 | 157 | 345 | 205 | 451 | 160 | 5.7 | 290 | 10.2 | 425 | 15 |
S30 | 7800 | 9700 | 12500 | 151 | 332 | 247 | 543 | 321 | 706 | 215 | 7.6 | 375 | 13.2 | 570 | 20.1 |
S36 | 7300 | 9000 | 10000 | 206 | 453 | 315 | 693 | 405 | 891 | 260 | 9.2 | 475 | 16.8 | 675 | 23.8 |
8. Features
DUTY CYCLE: Continuous
WORKING PRESSURE: From 2 bar to 6 bar (from 29 psi to 87 psi)
PNEUMATIC CIRCUIT: Filter + flow control valve + lubrification + 3/2 ways valve
AIR SUPPLY QUALITY: Class 5.4.4.
WORKING TEMPERATURE: From -20 °C to 200 °C (from -4 °F to 392 °F)
MAX NOISE LEVEL: 90 dB(a)
TECHNOLOGY: Rotary vibration - high frequency
ATEX: II 2D C TX, II 2G C TX
MATERIAL: Aluminium body and zinc plate cover
9. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
