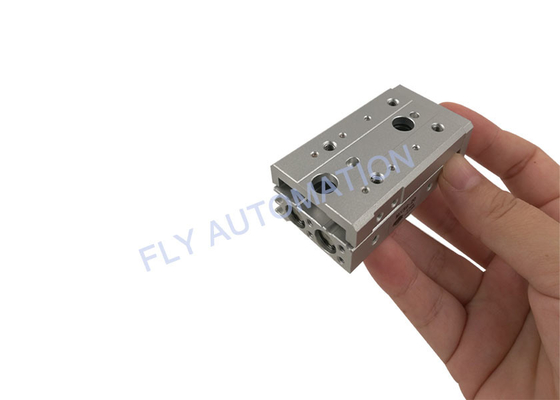

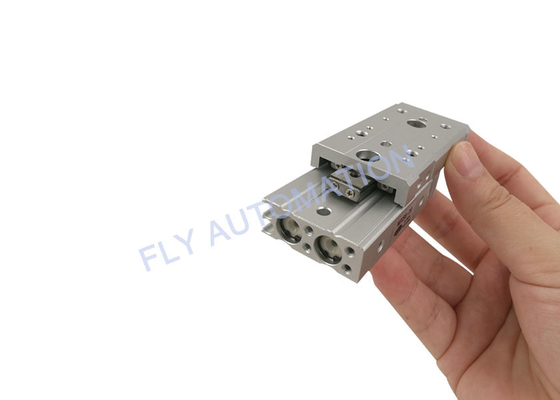

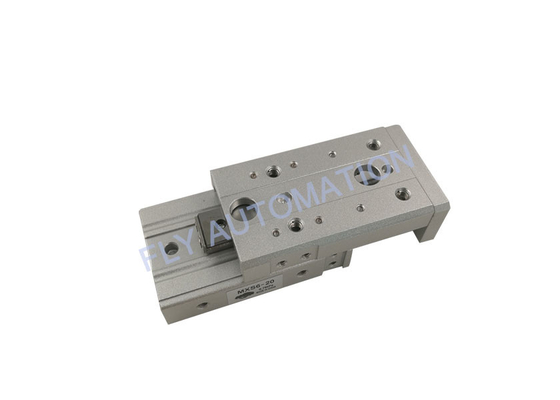

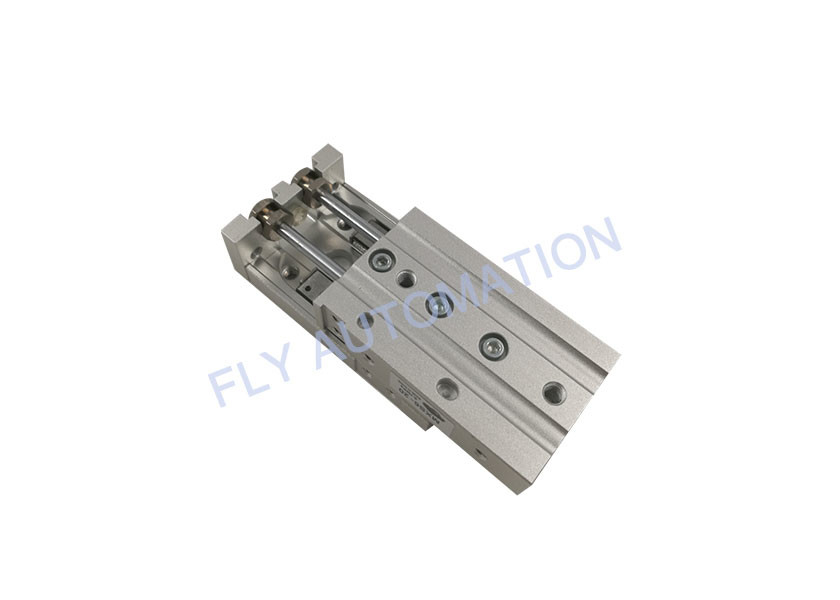

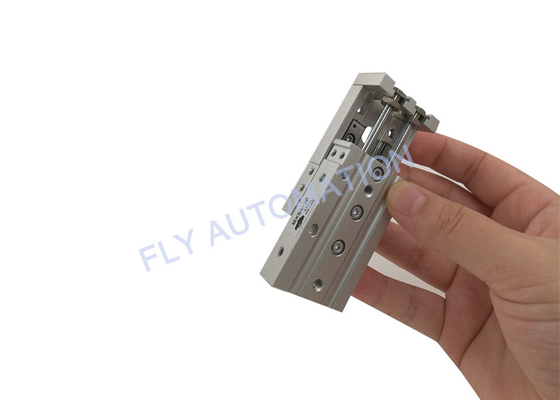

MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting

MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting

  • MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
  • MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
  • MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
  • MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
  • MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
  • MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting
Product Details:
Place of Origin: CHINA
Brand Name: FLY
Certification: CE
Model Number: MXS6-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Plastic bags, boxes, cartons, Pallets or As customer's requirement
Delivery Time: 1-7 work days
Payment Terms: Western Union, T/T, L/C, Paypal, Credit card
Supply Ability: 1000 pieces per 10 working days
Contact Now
Detailed Product Description
Fluid: Air Action: Double Acting
Operating Pressure: 0.15 To 0.7 MPa Proof Pressure: 1.05 MPa
Ambient And Fluid Temperature: -10 To 60°C Piston Speed: 50 To 500 Mm/s
High Light:

MXS6-20 Pneumatic Air Cylinders

,

Air Slide Table Pneumatic Air Cylinders

,

MXS Series Pneumatic Air Cylinders

MXS6-20 Air Slide Table Pneumatic Cylinder SMC MXS Series Double acting Air Cylinder



Specifications
Bore size (mm) 6 8 12 16 20 25
Fluid used Air
Action Double acting
Operating pressure 0.15 to 0.7MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature –10 to 60°C
Piston speed 50 to 500mm/s
Lubrication Non-lube
Cushion Rubber bumper (Standard, With stroke adjuster) Shock absorber (Option)
Auto switch

Reed switch (2-wire, 3-wire) Solid state switch (2-wire, 3-wire) 2-color indication solid state switch (2-wire, 3-wire)

Tolerance of stroke length

+1mm
0



Option
Adjuster option With stroke adjuster Extension end (AS) Stroke adjustment range 0 to 5 mm
Retraction end (AT)
Adjuster on both ends (A)
With shock absorber Extension end (BS) W/ shock absorber is not available in Series MXS6.
Retraction end (BT)
Absorber on both ends (B)
Functional option With buffer (F) W/ end lock is not available in Series MXS6
With end lock (R)
Axial piping type (P)


MXS6-20 Air Slide Table Pneumatic Air Cylinders SMC MXS Series Double Acting

Mounting

Caution

1.Do not scratch or dent the mounting side of the body, table or end plate.

Decreasing flatness on the mounting surface causes play in the guide section and increases sliding resistance.

2.Do not scratch or dent on the forward side of the rail or guide.

It can generation play in the guide section and increase sliding resistance.

3.Do not apply excessive impacts or moments when a work is mounted.

If external load beyond the specified allowable moment is applied, it generates play in the guide section and increases sliding resistance.

4.Flatness of mounting surface should be 0.02mm or less.

Insufficient flatness of work piece of base to which an air slide table is mounted can generates play in the guide section and increase sliding resistance.

5.When connecting with loads which has external support or external guide mechanism, select the connection and align properly.

6.Take care to prevent contact with objects such as a hand while an air slide table is in operation.

A hand can be caught by an adjuster. Install a protection cover if anything could interfere during its operation.

7.Do not bring into close contact with objects which would be influenced by magnetic fields.

As an air slide table has magnets builtin, do not allow close contact with magnetic disks, magnetic cards or magnetic tapes. Data may be erased

8.When mounting an air slide table, screws of appropriate length should be used and tightened properly within the maximum tightening torque.

If screws are tightened beyond designed limits, malfunction may occur. If they are tightened insufficiently, it may result in sliding of falling off from its position
