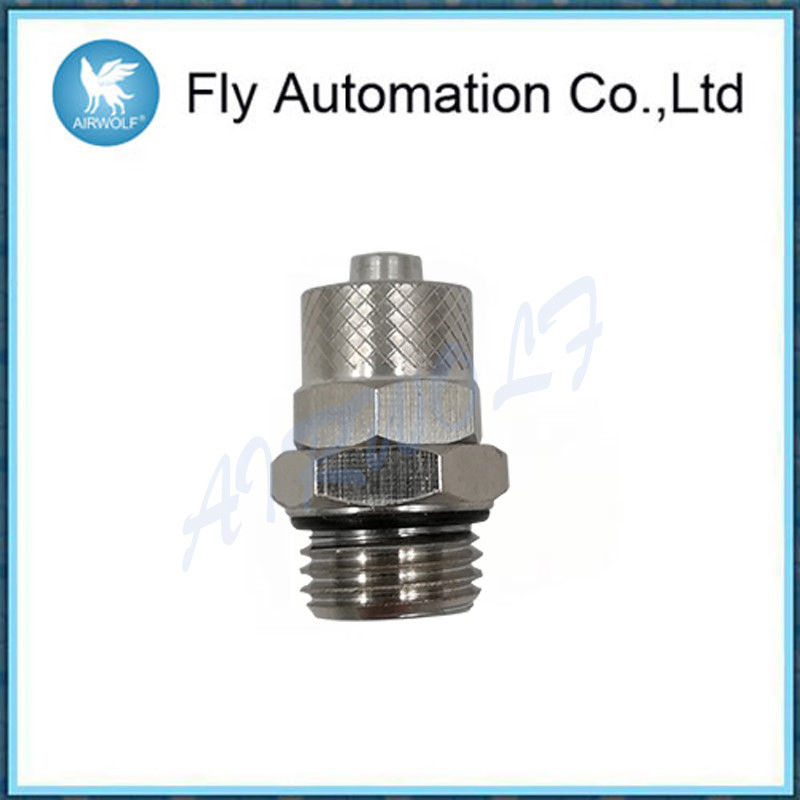

Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring

Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring

  • Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring
  • Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring
  • Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring
Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring
Product Details:
Place of Origin: CHINA
Brand Name: CAMOZZI
Certification: CE
Model Number: 1511 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time: within 1-10 working days after payment
Payment Terms: T/T , Western Union, PayPal
Supply Ability: 1000 pcs /day
Contact Now
Detailed Product Description
Model: 1511 Series Port Size: G1/4
Color: Silvery Temperature: -20°C ~ 80°C
Material: Nickel-plated Brass
High Light:

flexible tube fittings

,

pneumatic fittings and tubing

CAMOZZI Metric Male Connector Sprint 1511 Series Nickel-plated Brass With O-Ring



Materials body and nut: nickel-plated brass
O-ring: NBR
thread seals: PTFE, PA, AL
Threads

GAS conical ISO 7 (BSPT)

GAS cylindrical ISO 228 (BSP)
M5 - M6 NPT and metric (available on request)

Pressure the nominal pressure of the fittings is always higher
than the pressure of the tube
Tube to connect PA polyethylene braided PVC rilsan PU, Hytrel Polyester
Diameters 5/3 - 6/4 - 8/6 - 10/8 - 12/10 - 15/12,5 mm
Fluid compressed air low pressure fluid
Temperature -20°C ÷ 80°C
NOTE: for a better use of the fitting we recommend to
check the tubingspecifications



Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring

DIMENSIONS
Mod. Tube A C1 H I L R SW SW1 Weight (g)
1511 5/3-M5 5/3 M5 2 4 12,5 21 10,5 8 8 5
1511 5/3-M6 5/3 M6 2 4 12,5 21 10,5 9 8 5
1511 5/3-1/8 5/3 G1/8 2 5,5 12,5 23,8 11,8 12 8 10
1511 6/4-M5 6/4 M5 3 4 13,5 22 10,5 8 9 6
1511 6/4-M6 6/4 M6 3 4 13,5 22 10,5 9 9 7
1511 6/4-1/8 6/4 G1/8 3 5,5 15 26,3 13,3 12 12 15
1511 6/4-1/4 6/4 G1/4 3 7 15 28 13,5 14 12 16
1511 6/4-3/8 6/4 G3/8 3 8 15 29,3 13,8 19 12 27
1511 8/6-1/8 8/6 G1/8 5 55 15 26,3 13,3 12 14 17
1511 8/6-1/4 8/6 G1/4 5 7 15 28 13,5 14 14 18
1511 8/6-3/8 8/6 G3/8 5 8 15 29,3 13,8 19 14 27
1511 10/8-1/8 10/8 G1/8 6,5 5,5 16,5 27,8 13,8 14 16 23
1511 10/8-1/4 10/8 G1/4 6,5 7 16,5 29,5 14 14 16 25
1511 10/8-3/8 10/8 G3/8 6,5 8 16,5 30,8 14,3 19 16 30
1511 10/8-1/2 10/8 G1/2 6,5 9 16,5 32,5 15 22 16 36
1511 12/10-3/8 12/10 G3/8 8,5 8 18 32,3 14,3 19 19 39
1511 12/10-1/2 12/10 G1/2 8,5 9 18 34 15 22 19 42
1511 15/12,5-1/2 15/12,5 G1/2 11 9 20 36 15,5 22 22 52





Metric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O RingMetric Male Pneumatic Connectors Fittings 1511 Series -20°c - 80°c With O Ring
