| Brand Name: | FESTO |

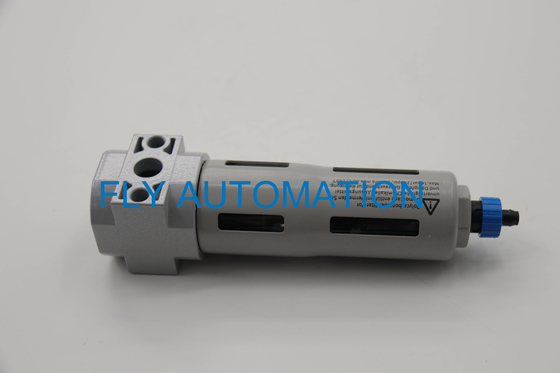

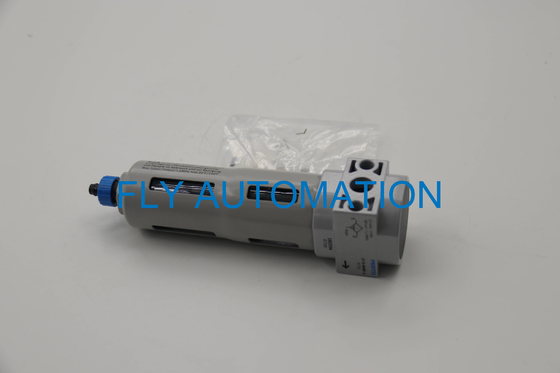

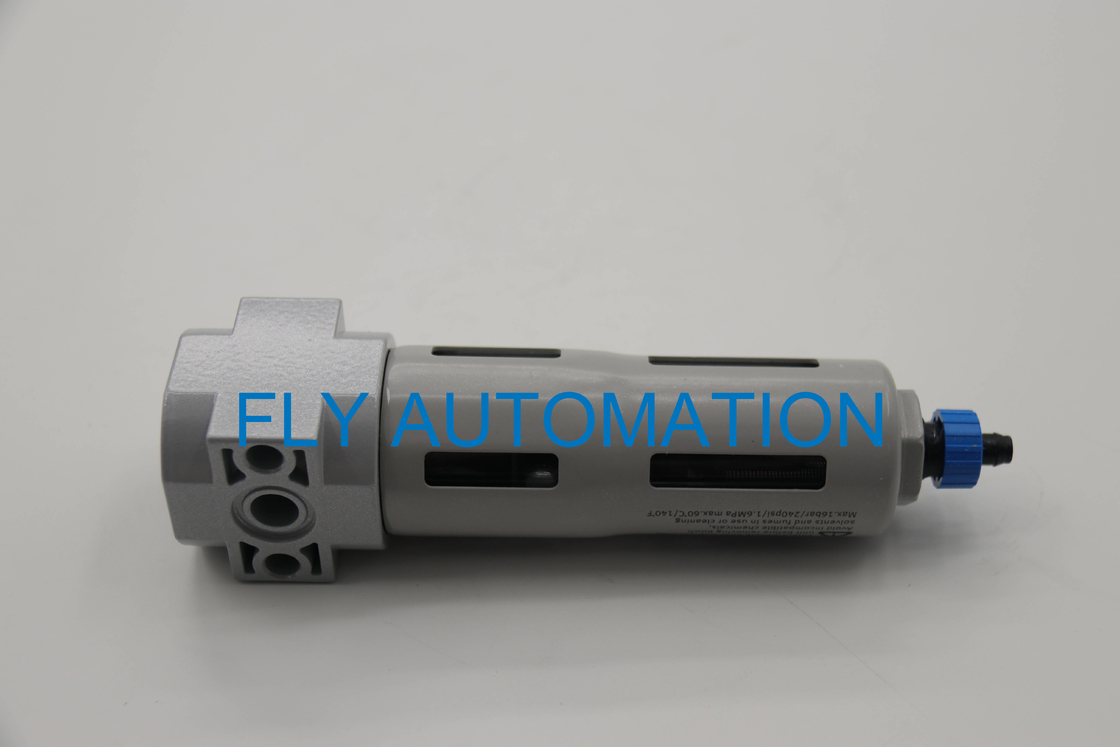

| Model Number: | LF-D-MINI |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 50-80 |
| Packaging Details: | Plastic bags,Boxes, Cartons |
| Delivery Time: | 4-5 weeks |
| Payment Terms: | T/T , Western Union |
| Supply Ability: | 2000 pcs |
| Model Code: | LF-D-MINI-A | Part No: | 192551 |
|---|---|---|---|
| Brand: | FESTO | LABS (PWIS) Conformity: | VDMA24364-B1/B2-L |
| Max. Condensate Volume: | 22 Ml | Material Bowl: | PC |
| High Light: | Pneumatic System Components FESTO Filter,LF-D-MINI FESTO Filter |
||
About Product
With manual or fully automatic condensate drain
Mounting position:Vertical ±5°
Bowl guard:Metal bowl guard
Pneumatic connection, port 1:Sub-base
Pneumatic connection, port 2:Sub-base
Technical data
| Size | Mini |
| Series | D |
| Grade of filtration | 40 µm |
| Condensate drain | Manually rotating |
| Design | Sintered filter with centrifugal separator |
| Max. condensate volume | 22 ml |
| Bowl guard | Metal bowl guard |
| Symbol | 00991519 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C-60°C |
| Media temperature | -10°C-60°C |
| Ambient temperature | -10°C-60°C |
| Product weight | 250 g |
| Pneumatic connection, port 1 | Sub-base |
| Pneumatic connection, port 2 | Sub-base |
| Note on materials | RoHS-compliant |
| Material filter | PE |
| Material housing | Die-cast zinc |
| Material bowl | PC |
Operating and environmental conditions
Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
