Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
Place of Origin: | China |
Certification: | CE |
Model Number: | KLA-15 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | KLA-15 | Body Material: | Aluminum Alloy |
---|---|---|---|
Name: | Flow Control Valve | Material: | Aluminum Alloy |
Color: | Silver | ||
High Light: | foot pedal valve,pneumatic mechanical valve |

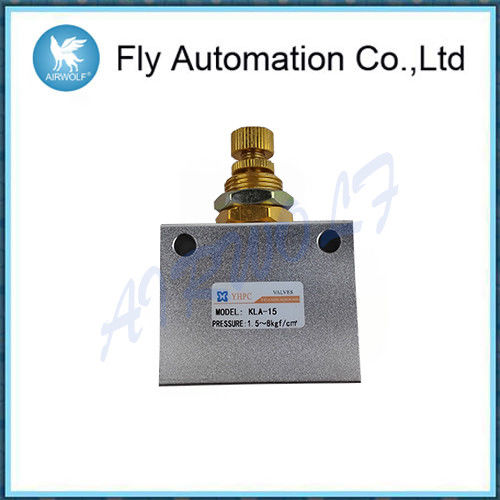

KLA Series Flow Control Valve
Characteristics
1) The KLA series flow control valve is a type of check valve which regulates the flow or pressure of a fluid.
2) They normally respond to signals generated by independent devices such as flow meters or temperature gauges.
Ordering code
KLA | 06 |
KLA Series flow control valve | Port Size 06: 1/8″ 08: 1/4″ 10: 3/8″ 15: 1/2″ |
Specification
Model | KLA-06 | KLA-08 | KLA-10 | KLA-15 | |
Medium | Air | ||||
Port Size | 1/8″ | 1/4″ | 3/8″ | 1/2″ | |
Working Pressure | 0.05-0.95MPa | ||||
Ensured Working Pressure | 1.5 MPa | ||||
Working Temperature | ﹣5 ~60℃ | ||||
Rated Flow | Check Valve | 200L/min | 450L/min | 1250L/min | 1650L/min |
One-way Valve | 400L/min | 800L/min | 1500L/min | 2500L/min | |
Main Material | Body | Alluminium Alloy | |||
Seal | NBR |
Dimension
Product show
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
