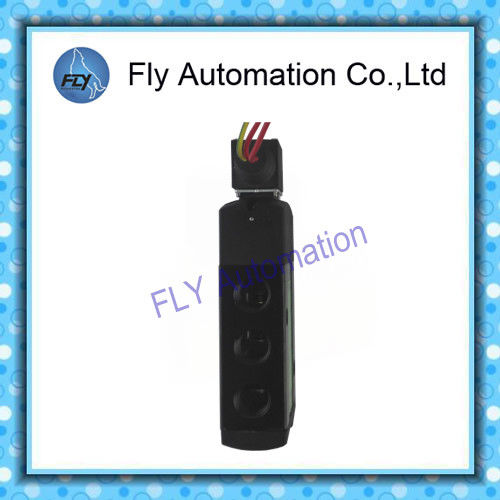

JOUCOMATIC SCG553A017 1/2" Port SPOOL Type Single Coil Monostable Solenoid Valve

ASCO JOUCOMATIC SCG553A017 1/2" Port SPOOL type Single Coil Monostable Solenoid valve

FEATURES

1. ASCO/JOUCOMATIC solenoid valves satisfy all relevant EC Directives
2. The monostable spool valves, series 551, have TüV certified IEC 61508 Functional Safety data and can be used up to SIL-4/AK-7
3. The spool valves 5/2 have threaded port connections
4. All the exhaust ports of this spool valve are pipable, providing better environmental protection, particularly recommended for sensitive areas such as clean rooms, and applications in the pharmaceutical and food processing sectors
5. The valve offers environmental protection against the ingress of liquids, dusts or any
other foreign matter (environmental-protected construction)
6. Epoxy moulded coil for general service applications

GENERAL

Differential pressure 2 - 10 bar [1 bar = 100 kPa]
Flow (Qv at 6 bar) 1/4 = 860 l/min (ANR)
                              3/8 = 3000 l/min
                              1/2 = 3800 l/min

MATERIALS IN CONTACT WITH FLUID

Body: Aluminium, black anodized
End covers: Glass-filled polyamide
Internal parts: Zamak, stainless steel, acetal (POM), aluminium
Sealing: NBR + PUR
Core and core tube: Stainless steel
Shading coil: Copper


Electrical characteristics


Pictures and details

OPTIONS

1. Other pipe threads are available on request
2. EEx m (Prefix “PV”) execution can be supplied in various cable lengths
3. Compliance with "UL" standard is available on request (552-553)
4. Dustproof ATEX (SCDU) with a coil and spade plug connector with lead (2 m lead), TPL 20651
5. Magnetic latch execution for 551 series, TPL 20649

INSTALLATION

1. Installation/maintenance instructions are included with each valve
2. The solenoid valves and air operated valves can be mounted in any position without affecting operation
3. IEC 61508 Functional Safety (Suffix SL), permissible temperature range: -40°C to +60°C. Probability of failure, consult ASCO/JOUCOMATIC
4. It is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and its pneumatic operator if used outside or in harsh environments (dusts, liquids etc.)
5. Threaded pipe connection identifiers are B = NPT (ANSI 1.20.3); G = G (ISO 228/1)

Delivery

1. Installation/maintenance instructions are included with each valve
2. The solenoid valves can be mounted in any position without affecting operation
3. Spool valve supplied with two interface plates with NAMUR mating surfaces. Depending on function (NC 3/2 or 5/2), position one of the two plates on the spool valve body before installing onto actuator
4. It is necessary to connect pipes or fittings to the exhaust ports to protect the internal parts of the spool valve and its pneumatic operator if used outside or in harsh environments (dusts, liquids, etc.)
5. Dowel pin (if necessary), bolts and gaskets are standard supplied
6. Threaded pipe connection identifier is: 8 = NPT (ANSI 1.20.3); G = G (ISO 228/1)
