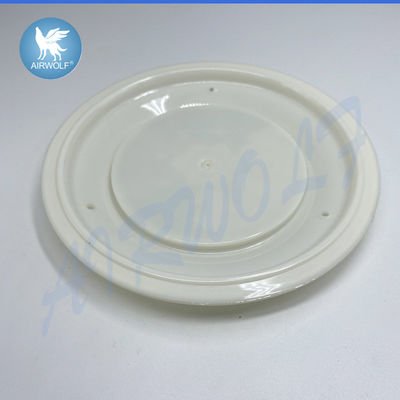

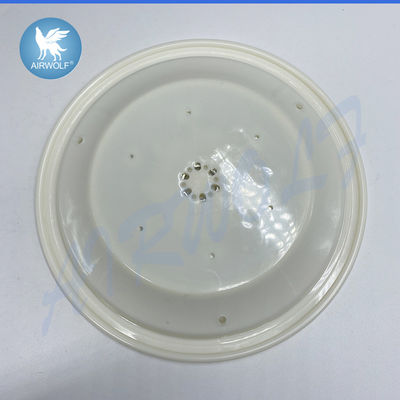

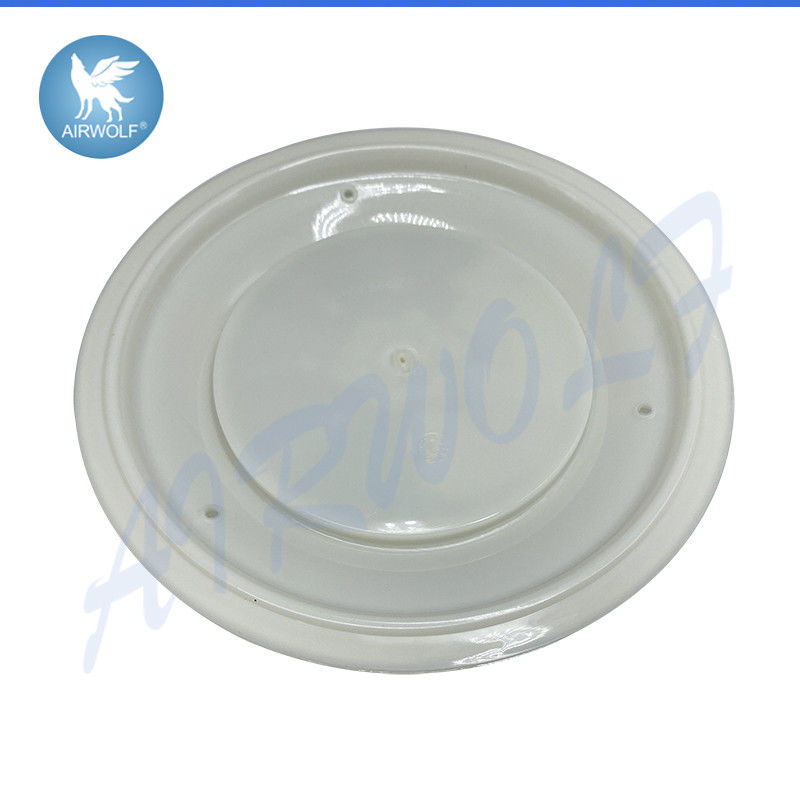

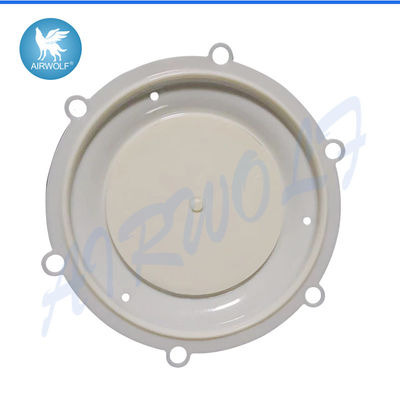

IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit

IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit

  • IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit
  • IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit
  • IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit
  • IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit
IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit
Product Details:
Place of Origin: CHINA
Brand Name: Autel,OEM
Certification: CE,IOS9001
Model Number: M/D75
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Carton,and other special packing according to customer's requirement
Delivery Time: 1-7 work days
Payment Terms: T/T in advance,Western Union,Paypal,Credit card
Supply Ability: 2000set/month
Contact Now
Detailed Product Description
Material: TPE Or PTEF Color: White
Pipe Size: 3 Inch 3.5 Inch Pressure Range: 1.5-8bar
Standard Temperature: -40℃ +100℃ Protect Class: IP65
High Light:

TPE Solenoid Valve Diaphragm Kit

,

3.5 Inch Solenoid Valve Diaphragm Kit

,

Pulse Jet Valve Diaphragm Repair Kit

White Autel 3 Inch 3.5inch TPE Solenoid Valve Diaphragm Kit Pulse Valve Repair Kits



Description:

Features diaphragm repair kit
Working Pressure 1,5-8  bar
Standard Temperature Range -40 °C ; +100 °C
High Range Temparature -20 °C ; +200 °
Kv 62 m^3/h
Weight 2,6-2,8 kg
Protection Level IP65



1. The diaphragm repair kits is for Italy Autel pulse jet valves.

2. This repair kit has large air - outlet , so the air can get throgh very smoothly.

3. We use high quality material , the collection equipment efficiency can be improved , the energy loss also can be reduced.

4. Autel 3" membranes has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.

5. Its lifespan is about 1 million cycles.

6. Material: TPE or PTEF

7. Color:White



1 . The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

2 . The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications

3 . The design with integral compression fittings will facilitate installation because there is no need for threaded piping

4 . The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

5 . Integral pilot operated valves satisfy all relevant EC directives



IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm KitIP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit

Structure:

IP65 3 Inch 3.5 Inch TPE Solenoid Valve Diaphragm Kit





No. Description Material
A Optional Fitting Nickeled Brass
1 Screw M6 SS
2 Washer SS
3 Cover  3/4" Die Cast Alu
4 Diaphragm 3/4" TPE
5 Screw M8 SS
6 Washer SS
7 Cover  1" 1/2 Die Cast Alu
8a STD Diaphragm 1"1/2 TPE
8b HT Diaphragm 1" 1/2 Kit fluororubber+PTFE
9 Body  1" 1/2 Integrated Die Cast Alu
10 Clamp  O'Ring NBR
11 Body  Tank O'Ring NBR
12 Body  Pipe O'Ring NBR
13 Clamp  1" 1/2 Die Cast Alu
14 Pipe O'Ring NBR
15 Washer  1" 1/2 Pa 6,6+ Ela
16 Blow  Pipe 1" 1/2 CS or SS



General Description

In the high efficiency series we can include the range of flat surface valves. These valves, used for cleaning
filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and
flanged tank. Like traditional model, with threaded and coupling connection, the activating can be:
Integrated the pilot is placed on the valve and the excitation (electric) is made by a coil.
Remote: the pilot is remote and the excitation is pneumatic. The connection between pilot and valve is made by
a simple pneumatic tube.
All That is achieved from a deep studying of internal geometrical characteristics and from a
technological research on diaphragm. This guarantees rapid opening-closing cycles and a working for
over a million of shots.
