| Place of Origin: | China |
| Brand Name: | AIRTAC |
| Certification: | ISO Standand |
| Model Number: | AC1425-2 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | 1-100pcs USD6.8 ，100-500pcs USD6 , 500-5000pcs USD5.5 |
| Packaging Details: | Plastic bags, boxes, cartons, Pallets or As customer's requirement |
| Delivery Time: | 7 working Days |
| Payment Terms: | T/T, Western Union, MoneyGram Paypal |
| Supply Ability: | 1000 PCS Per Week |

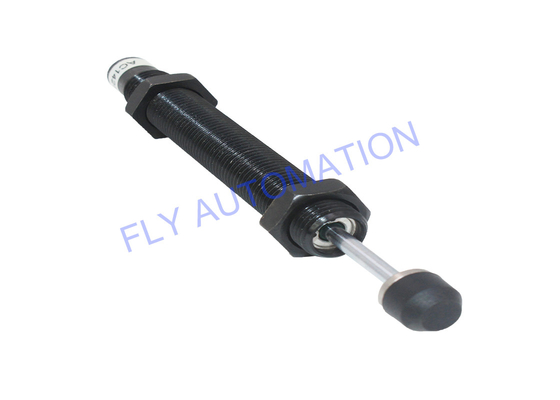

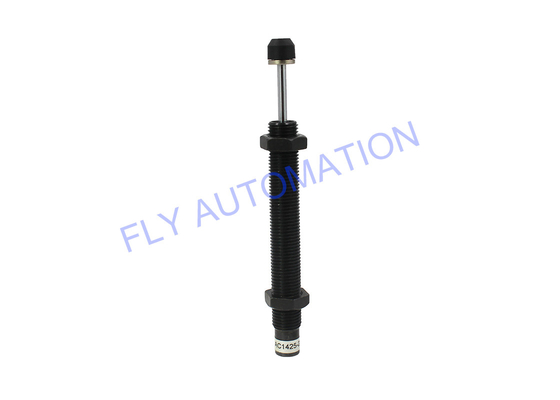

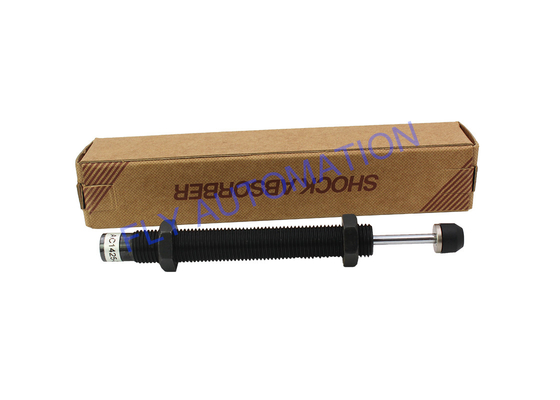

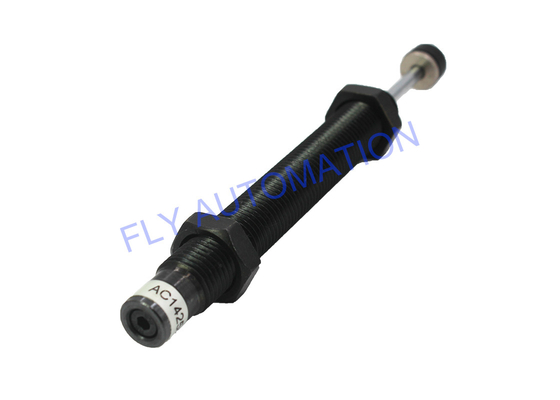

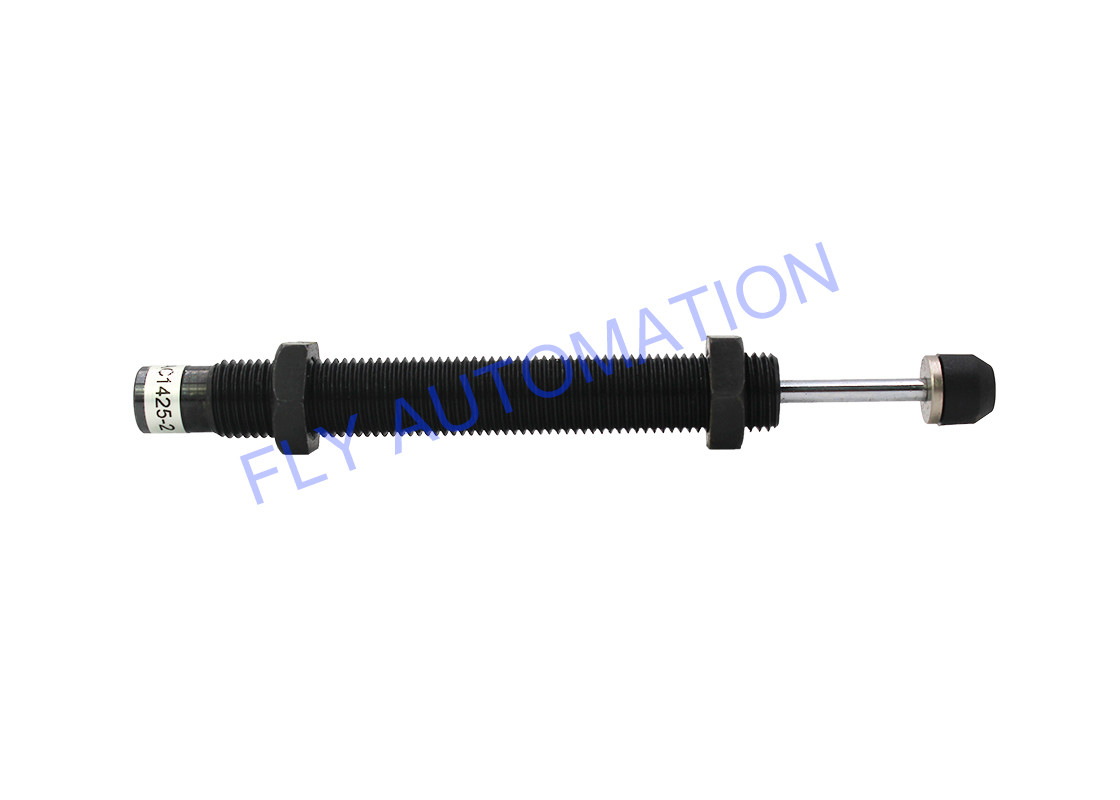

| Product Name: | Pneumatic Shock Absorber | Model NO.: | AC1425-2 |
|---|---|---|---|
| Stroke: | 25mm/ 0.98" | Rod Diameter: | 4mm/ 0.15" |
| Threaded Diameter: | 14mm/0.55" | Material: | Plastic, Metal |
| High Light: | Auto Buffer Pneumatic Shock Absorber,Hydraulic Pneumatic Shock Absorber,25mm Stroke Pneumatic Shock Absorber |
||
| Product Name | Pneumatic Shock Absorber |
| Model NO. | AC1425-2 |
| Stroke | 25mm/ 0.98" |
| Rod Diameter | 4mm/ 0.15" |
| Threaded Diameter | 14mm/0.55" |
| Overall Size | 150 x 22mm/ 5.9" x 0.8" (L*D) |
| Color | Black, Orange |
| Material | Plastic, Metal |
| Model | Thread | Stock | A | B | C | D | E | F | H | I |
| (mm) | ||||||||||
| AC0806 | M8 X 1 | 6 | 50 | 38 | 33 | 3 | 6 | 6.6 | 11 | 3 |
| AC1005 | M10 X 1 | 5 | 38.5 | 27.5 | 23 | 3 | 6 | 8.6 | 14 | 3 |
| AC1008 | M10 X 1 | 8 | 57 | 43 | 38 | 3 | 6 | 8.6 | 14 | 3 |
| AC1210 | M12 X 1 | 10 | 69.5 | 50 | 45.5 | 3 | 9.5 | 10.3 | 14 | 4 |
| AC1412 | M14 X 1.5 | 12 | 105 | 81.5 | 72.5 | 4 | 11.5 | 12 | 19 | 5 |
| AC1416 | M14 X 1.5 | 16 | 125.5 | 95 | 86 | 4 | 11.5 | 12 | 19 | 5 |
| AC1420 | M14 X 1.5 | 20 | 141.5 | 110 | 101 | 4 | 11.5 | 12 | 19 | 5 |
| AC2016 | M20 X 1.5 | 16 | 136 | 112 | 103 | 6 | 16 | 18 | 26 | 8 |
| AC2020 | M20 X 1.5 | 20 | 140 | 112 | 103 | 6 | 16 | 18 | 26 | 8 |
| AC2030 | M20 X 1.5 | 30 | 150 | 112 | 103 | 6 | 16 | 18 | 26 | 8 |
| AC2050 | M20 X 1.5 | 50 | 223 | 157 | 148 | 6 | 16 | 18 | 26 | 8 |
| AC2525 | M25 X 1.5 | 25 | 154 | 111 | 101 | 8 | 18 | 22 | 32 | 9 |
| AC2540 | M25 X 1.5 | 40 | 213 | 127 | 117 | 8 | 36 | 22 | 32 | 9 |
| AC2550 | M25 X 1.5 | 50 | 239.5 | 171.5 | 100 | 8 | 18 | 22 | 32 | 9 |
| AC2580 | M25 X 1.5 | 80 | 335 | 237 | 100 | 8 | 18 | 22 | 32 | 9 |
| AC3660 | M36 X 1.5 | 60 | 248 | 162 | 134 | 10 | 35 | 26 | 46 | 15 |
Product feature
1. Excellent and stable deceleration and shock absorbing;if impacted by load,the resistance will automatically adjust.
2. Outer body of integrated structure is treated by QPQ,which has optimum corrosion and wear resistance and can withstand high pressure;it is easy to install and adjust for all threaded outer body which has good heat dissipation.
3. With high hardness stainless steel shaft,the shock absorber has better impact and corrosion resistance,and it can work under adverse conditions.
4. Special oiling process leads to stable shock absorbing.
5. Compact structure and high max.absorbed energy.
6. We use Special lubricants as buffer medium,which adapts to wide temperature range and ensures stable cushioning.
