| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |
| Model Number: | PUN-H-8X1,25-BL |
| Minimum Order Quantity: | 50m |
|---|---|
| Price: | USD0.8-1/m |
| Packaging Details: | Carton，OPP bag |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 6000m per month |
| Part No.: | 197385 | Type: | PUN-H-8X1,25-BL |
|---|---|---|---|
| Brand: | FESTO | Color: | Blue |
| Material Tubing: | TPE-U(PU) | Note On Materials: | RoHS-compliant |
| High Light: | Plastic Tubing PUN-H-8X1,197385 Plastic Tubing,Plastic Festo Pneumatic Air Hose |
||
About product

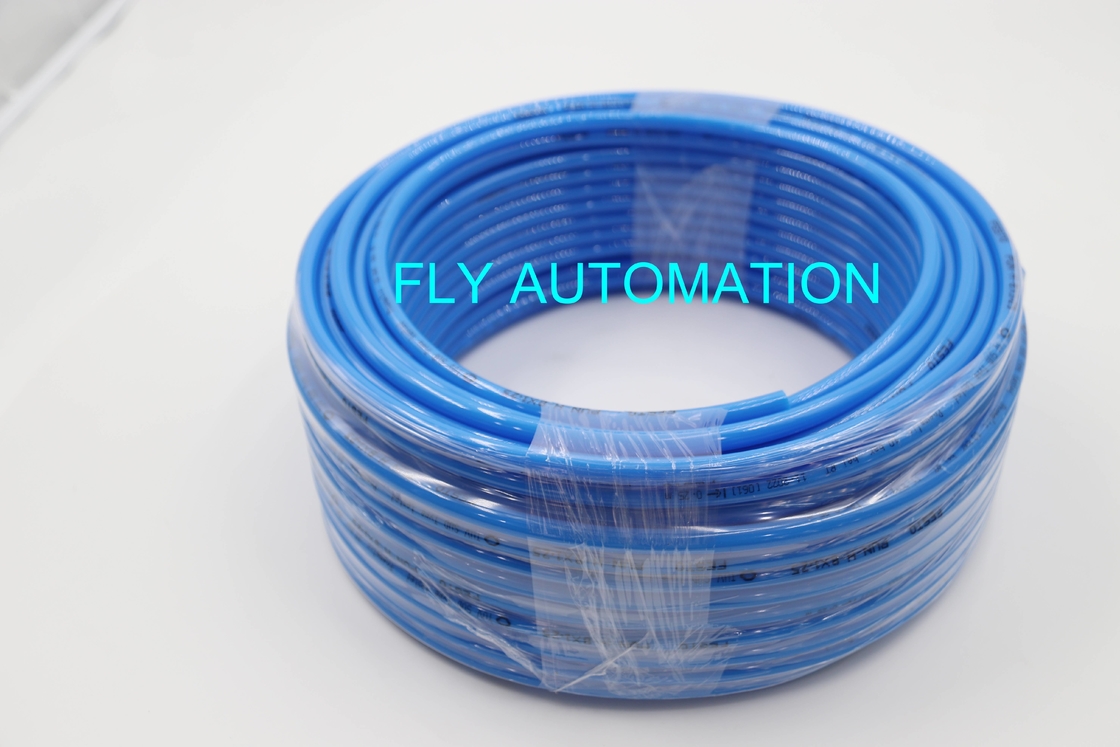

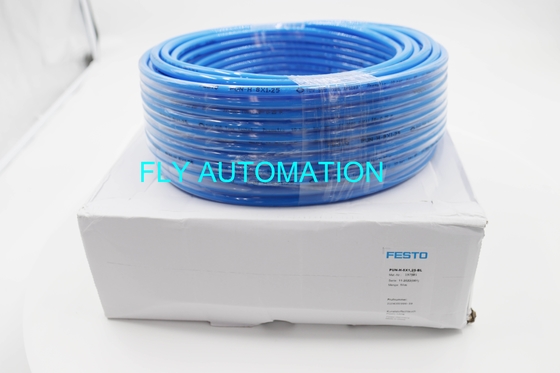

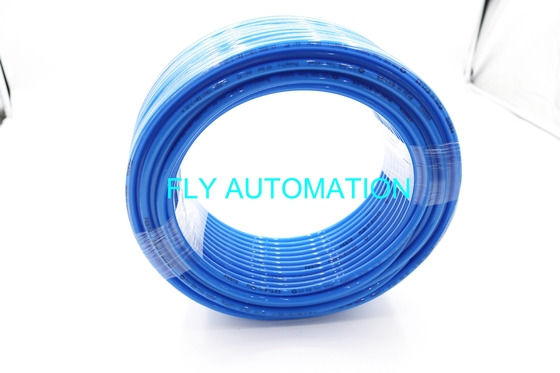

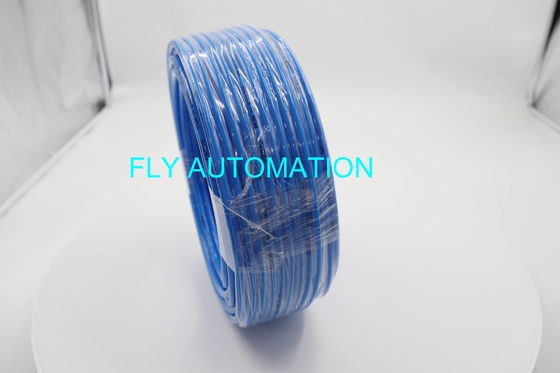

1.Plastic tubing PUN-H Material: Polyurethane.
2.Tubing diameters that are too big or too small as well as bending radii that are too small result in flow rate losses. One of the most important rules when selecting tubing is therefore that it should be as long as necessary and as short as possible.
3.Color:Blue
4.It is therefore really important to find a reliable and cost-effective product that prevents damaging the tubing during operation.
Technical Data
| Outside diameter | 8 mm |
| Inside diameter | 5.7 mm |
| Min. bending radius | 21 mm |
| Instructions on use | TPE-U Ether based |
| Tubing characteristics | Suitable for energy chains |
| Fire test material | UL94 HB |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -35°C-60°C |
| Colour | Blue |
| Shore hardness | D 52 +/-3 |
| Note on materials | RoHS-compliant |
| Material tubing | TPE-U(PU) |
Operating and environmental conditions
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.The Core Range off ers you the best value for your automation tasks.
