| Place of Origin: | China |
| Brand Name: | FESTO |

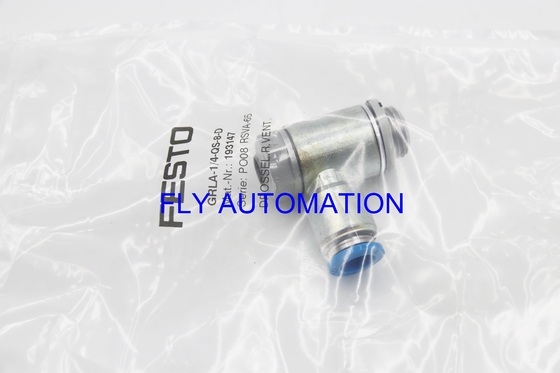

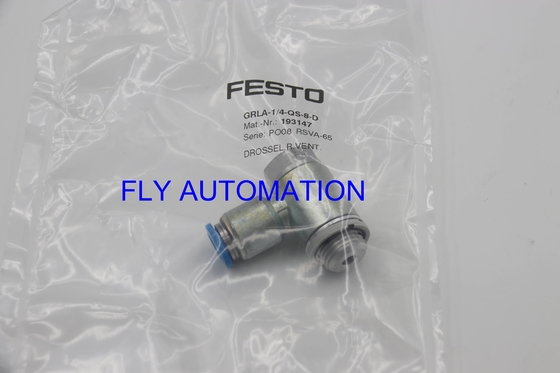

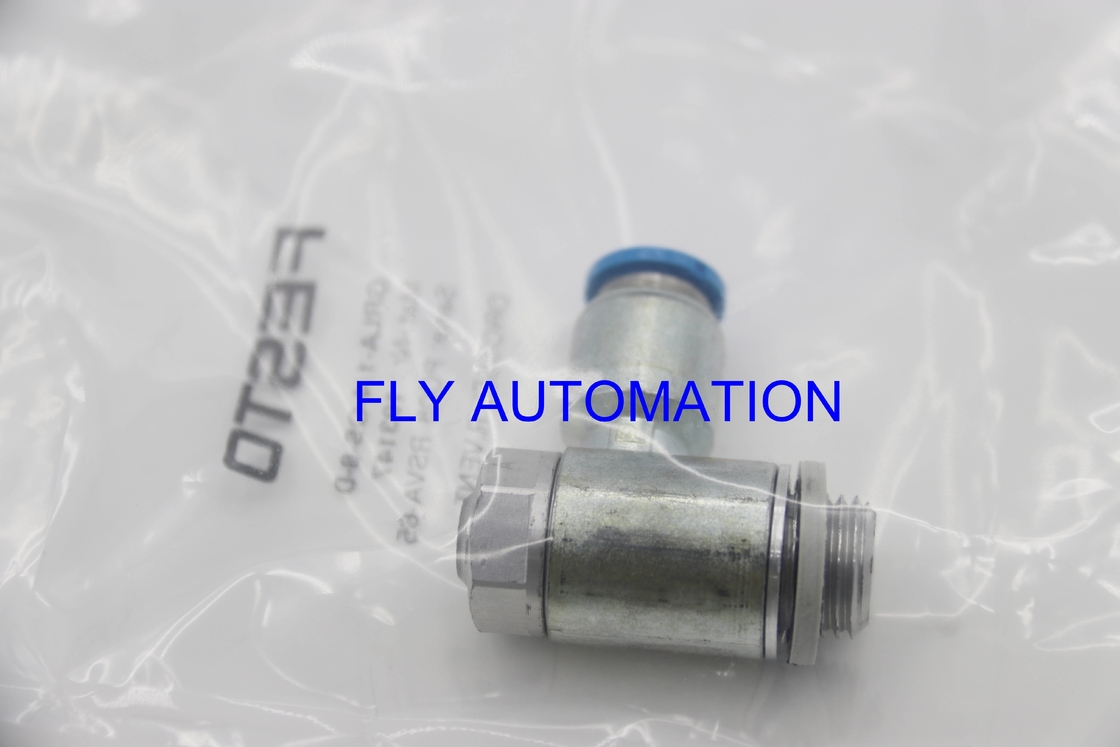

| Model Number: | GRLA-1/4-QS-8-D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-40 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Part No: | 193147 | Type: | GRLA-1/4-QS-8-D |
|---|---|---|---|
| Brand: | FESTO | Valve Function: | Exhaust Air One-way Flow Control Function |
| LABS (PWIS) Conformity: | VDMA24364-B1/B2-L | Material Screw-in Stud: | Wrought Aluminium Alloy |
| High Light: | Flow Control Valve GRLA-1/4-QS-8-D,193147 One Way Flow Control Valve,Zinc Chromated One Way Air Valve |
||
About product
1.The piston speed of both advancing and retracting pneumatic cylinders can be regulated using one-way flow control valves.
2.This is achieved by restricting the flow rate of compressed air in exhaust air or supply air direction as required.
3.The non-return function works in the opposite direction.
Technical Data
| Valve function | Exhaust air one-way flow control function |
| Pneumatic connection, port 1 | QS-8 |
| Pneumatic connection, port 2 | G1/4 |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Mounting position | optional |
| Symbol | 00991452 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Nominal torque | 5 Nm |
| Product weight | 42 g |
| Material screw-in stud | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material release ring | POM |
| Material adjusting screw | Brass |
| Material swivel fitting | Die-cast zinc Chromated |
Slotted head screw
