FLY/AIRWOLF Series 1 1/2" Flange Pulse Jet Valve CAC45FS010-300 RCAC45FS

CAC45FS010-300 RCAC45FS  FLY/AIRWOLF series 1 1/2" Flange pulse jet valve

Description:

Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal.

Available with integral pilot or as remotely piloted valve.Outlet at 90°.

Operation

Recommeded time

between pulses:1 minute or greater

Recommended,

On time range:50-500ms

Installation:

1.Prepare inlet flange and blowtube pipes to suit valve specification.

   Avoid installing valves underneath the tank.

2.Ensure tank and Pipes are free from dirt,rust or other particulate.

3.Ensure supply air is clean and dry.

4.Mount valves to inlet flange and blowtube to valves with all seals in place.

   Tighten flange bolts to 10Nm(7.4ft-ibs) Ensure blowtube is oushed all the way into the valve outlet.

5.Tanks and pipes must be independently restrained from valve.

6.Make electrical connections to solenoid or connect RCA pilot port to pilot valve.(RCA valve only).

7.Apply moderate pressure to system and check for installation leaks.

8.Fully pressurise system.

9.Test fire and listen for proper actuation and crisp pulse noise.

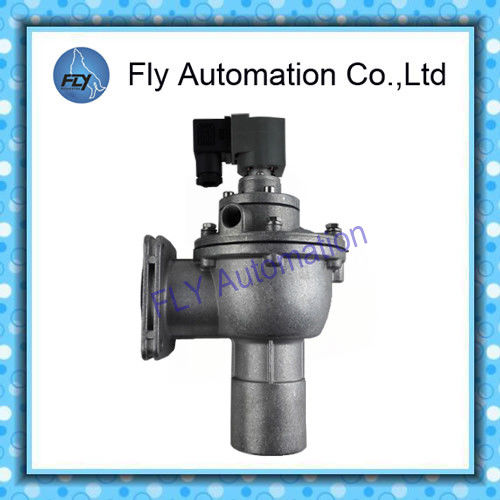

Product show:

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
