Place of Origin: | CHINA |
Brand Name: | Findeva |
Certification: | CE,IOS9001 |
Model Number: | GT30 GT36 GT-48 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Carton,and other special packing according to customer's requirement |
Delivery Time: | 1-7 work days |
Payment Terms: | Western Union,T/T,Paypal,credit card |
Supply Ability: | 2000set/month |
Brand: | GT30 GT36 GT-48 | Connection: | G3/8 |
---|---|---|---|
Max. Temperature: | +120° | Weight: | 4 |
High Light: | Findeva Pneumatic System Component,Findeva Pneumatic Turbine Vibrator,Turbine Vibrator Pneumatic System Component |

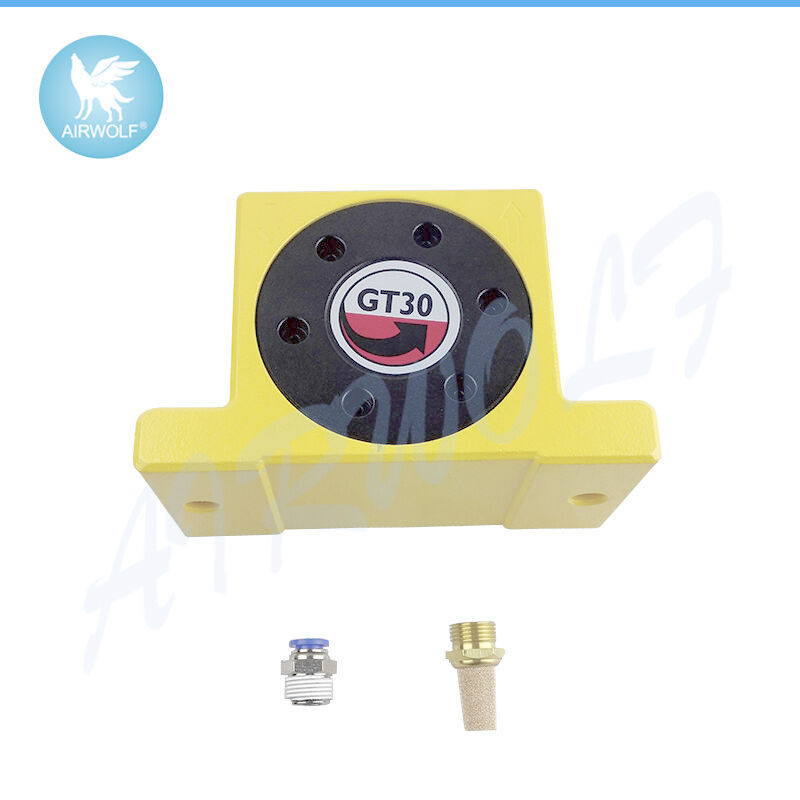

Findeva GT30 GT36 GT-48 Pneumatic System Components Turbine Vibrator
GT Series Pneumatic Turbine Vibrators are ideal for applications in the food and pharmaceutical industries, and others involving fine, dry powders that respond well to high frequency vibration.
They require no lubrication, and produce less noise than other types of rotary pneumatic vibrators.
There are 12 models available, with forces to over 2300 pounds. Some sizes are also available in stainless steel housings.
Properties
• Lubrication-free
• Low noise level
• Strong vibration by means of high speed and eccentric
working torques
• Rated frequency 6’000 – 46’000 rpm
• Centrifugal force 130 – 12’000 N
• Continuously variable
• Can be used up to 150 °C
• Resistant to extreme environmental conditions
Field of application
• Emptying of bunkers
• Screen filters
• Vibrating tables
• Preventing adhesions in pipelines and silos
• Transporting of fine powders
• Moving of bulk materials
Construction
• Vibration from the centrifugal force of positive and negative imbalanced torques in the rotor.
• Rotor on two pre-lubricated and enclosed ball bearings arranged in pairs. Lubricated with special grease for long life.
Applications:
Food Ingredient bins
Pharmaceutical Ingredient bins
Weigh hoppers
Light duty vibrating tables & platforms
Small feeders
Transfer pipes
Chutes
Specifications:
1, Extruded Aluminium Alloy Body
2, Hard Coated Aluminium Turbine Wheel
3-4, High Density Mass Positive Movement
5-7, Cavities Giving Negative Movement
8,Air Inlet Port
9,Air Exhausting port
10,Base Mounting Holes
11,Special Pre-Lubricated Matching Sealed Bearings
Hard Coated Aluminium Endplates
12,With Left direction Thread
13,With Right direction Thread
Model | Frequency V.P.M | Centrifugal force | Air consumption L/ Minute | ||||||
2 Bar | 4 Bar | 6 Bar | 2 Bar | 4 Bar | 6 Bar | 2 Bar | 4 Bar | 6 Bar | |
29 PSI | 58 PSI | 87 PSI | N | N | N | Ltr. | Ltr. | Ltr. | |
GT-8 | 36000 | 42000 | 46000 | 990 | 2060 | 2910 | 48 | 75 | 152 |
GT-10 | 27500 | 35000 | 37500 | 840 | 1390 | 2400 | |||
GT13 | 26000 | 30000 | 33000 | 1400 | 2440 | 3730 | 125 | 210 | 280 |
GT-16 | 17000 | 21500 | 24000 | 1220 | 2090 | 3160 | |||
GT20 | 17000 | 20000 | 23000 | 2170 | 4040 | 5520 | 188 | 315 | 465 |
GT-25 | 12000 | 15500 | 17000 | 2120 | 3510 | 5070 | |||
GT32 | 13000 | 14000 | 16000 | 3380 | 5430 | 7540 | 335 | 520 | 755 |
GT-36 | 7800 | 10000 | 13000 | 3290 | 5360 | 7190 | |||
GT40 | 7500 | 8800 | 9500 | 4300 | 7300 | 9800 | 428 | 680 | 960 |
GT-48 | 5800 | 7500 | 9700 | 4900 | 7700 | 10500 | |||
GT-60 | 4758 | 6530 | 8515 | 5700 | 9800 | 11150 |
|
Dimension:
Competitive Advantage:
Our product features: | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging, | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Serves time
0:00 - 23:59
From Monday to Sunday

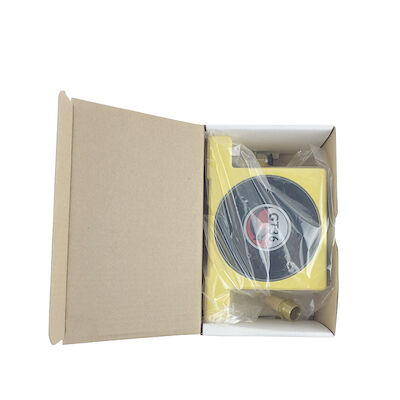

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
