FESTO Quick Exhaust Valve SE-1/4-B 9686 GTIN4052568001988

Product Details:

Place of Origin:	China
Brand Name:	FESTO
Model Number:	SE-1/4-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	EXW USD30-50
Packaging Details:	Plastic bag, Carton
Delivery Time:	7-10working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 pcs per month

Contact Now

Detailed Product Description

Type:	SE-1/4-B	Part No:	9686
Brand:	FESTO	Weight:	100 G
Type Of Mounting:	Screw-in	Media Temperature:	-20°C-75°C
High Light:	Quick Exhaust Valve SE-1/4-B , 9686 Quick Exhaust Valve

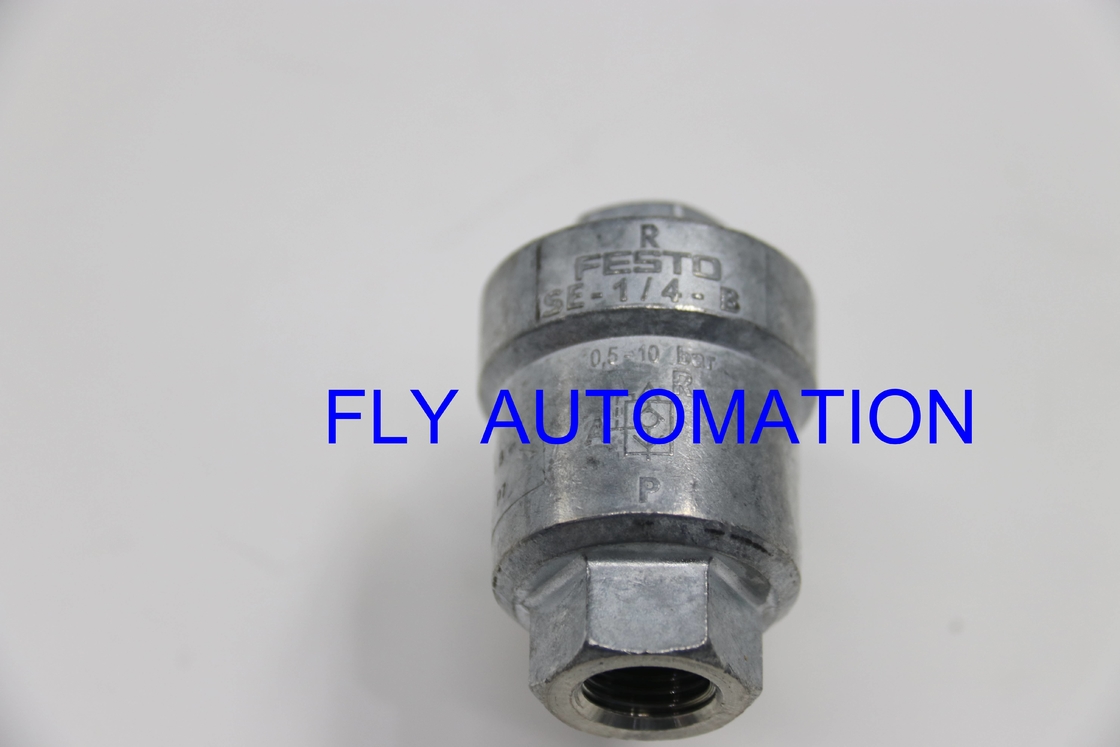

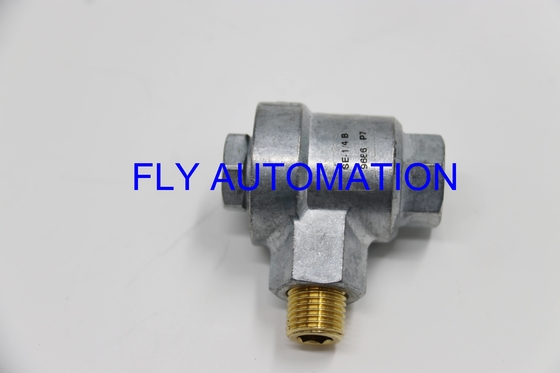

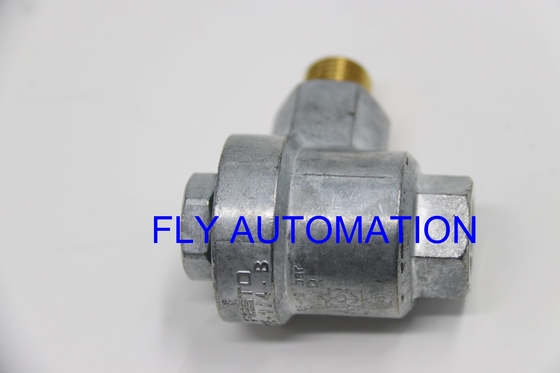

FESTO Quick exhaust valve SE-1/4-B 9686 GTIN4052568001988

Name: FESTO Quick Exhaust Valve SE-1/4-B 9686 GTIN4052568001988
Brand: FESTO
SKU: SE-1/4-B
Price: 30 USD
Availability: InStock
Rating: 4.9 (144 reviews)

About product

1.These elements can be used to achieve higher piston speeds during the return stroke of single-acting and doubleacting cylinders.

2.The quick exhaust valve SEU has a silencer to reduce the exhaust noise.

3.Compressed air flows from the control valve and via the quick-exhaust valve to the cylinder. This closes exhaust port 3. If the pressure at 1 drops, exhausting is from 2 to 3.

4.To ensure quick and complete exhausting, the valve must be mounted directly on the cylinder's air port.

General technical data

Valve function	Quick exhaust
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Type of mounting	Screw-in
Operating pressure	0.5 bar ... 10 bar
Material housing	Die-cast zinc
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal size	7 mm
Mounting position	optional
Symbol	00991459
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Media temperature	-20°C-75°C
Product weight	100 g
Pneumatic connection, port 3	G1/4
Material seals	NBR

Ordering data

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT will be normal ways. If you require use of a courier, we can do it.

There are many models . Please hurry to me!
