| Place of Origin: | China |
| Brand Name: | FESTO |

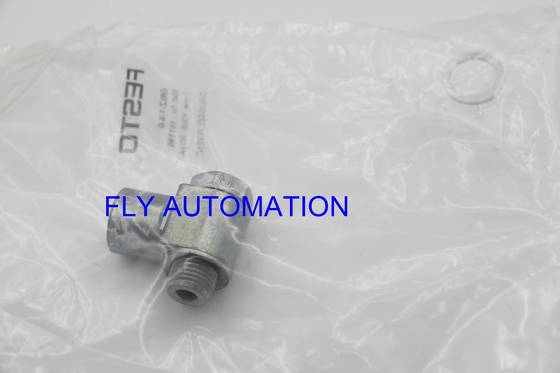

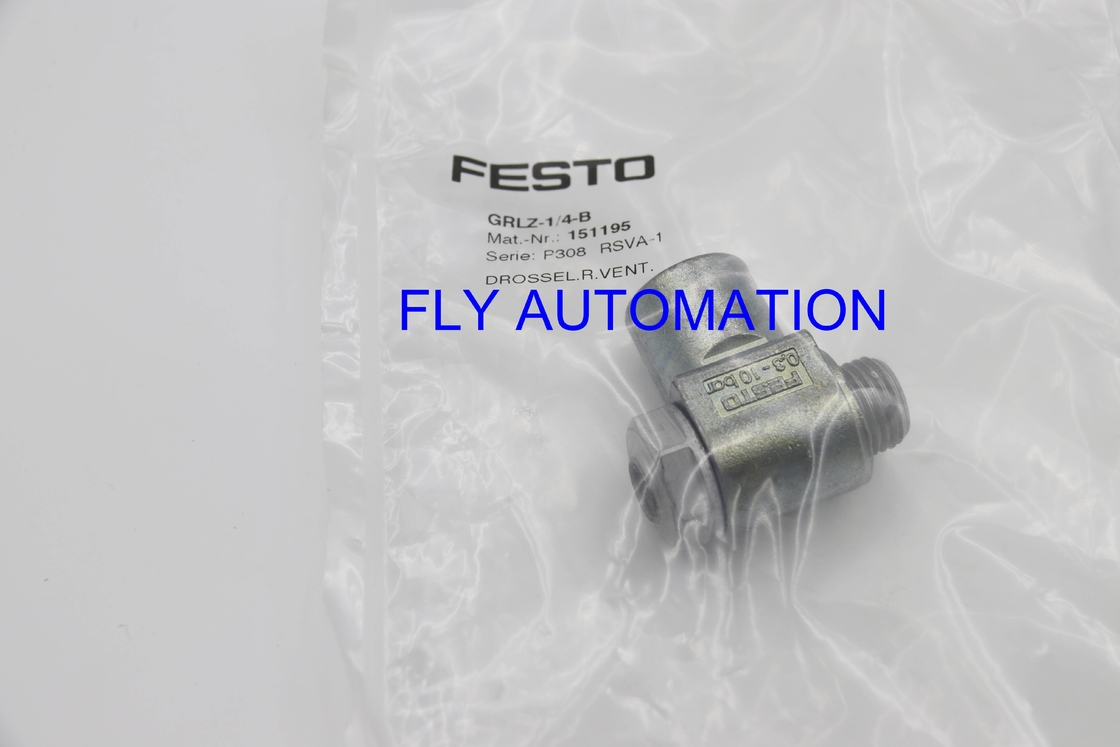

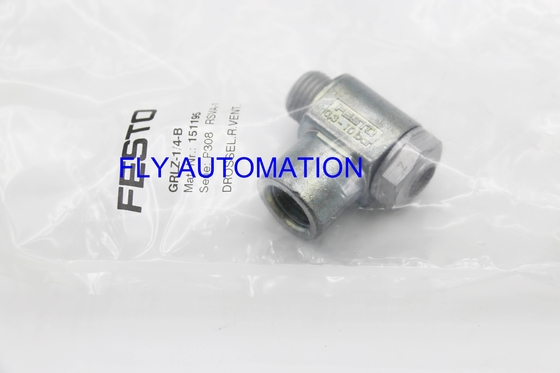

| Model Number: | GRLZ-1/4-B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD20-40 |
| Packaging Details: | Plastic bag, Carton |
| Delivery Time: | 7-10working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 pcs per month |
| Part No: | 151195 | Type: | GRLZ-1/4-B |
|---|---|---|---|
| Brand: | FESTO | Valve Function: | Supply Air One-way Flow Control Function |
| Mounting Position: | Optional | Product Weight: | 60 G |
| High Light: | FESTO One Way Flow Control Valve,151195 One Way Flow Control Valve,GRLZ-1/4-B Air Flow Control Valves |
||
About product
1.Exhaust air one-way flow control function.
2.The required restriction can be set with the help of this adjustment element.
3.The standard nominal flow rate qnN is the volumetric flow rate based on standard conditions at an operating pressure of p1 = 6 bar and an output pressure of p2 = 5 bar, measured at room temperature t = 20°C.
Technical Data
| Valve function | Supply air one-way flow control function |
| Pneumatic connection, port 1 | Female thread G1/4 |
| Pneumatic connection, port 2 | Male thread G1/4 |
| Adjustment component | Slotted head screw |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 610 l/min |
| Standard nominal flow rate in blocked direction | 450 l/min ... 820 l/min |
| Ambient temperature | -10°C-60°C |
| Mounting position | optional |
| Symbol | 00991453 |
| Operating pressure complete temperature range | 0.3 bar ... 10 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10°C-60°C |
| Nominal size | 6 mm |
| Max. tightening torque | 11 Nm |
| Product weight | 59 g |
| Material screw-in stud | Wrought aluminium alloy |
| Note on materials | RoHS-compliant |
| Material seals | NBR |
| Material adjusting screw | Brass |
| Material swivel fitting | Die-cast zinc |
General technical data – GRLZ
