Place of Origin: | China |
Brand Name: | FESTO |
Certification: | CE |
Model Number: | GRLA-M5-B 151160 |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement |
Delivery Time: | within 1-30 working days after payment |
Payment Terms: | T/T , Western Union |
Supply Ability: | 1000 pcs |
Model Code: | GRLA-M5-B 151160 | Size: | M5 |
---|---|---|---|
Connection Type: | Female Thread | Body Material: | Aluminum Alloy |
Name: | Flow Control Valves | ||
Highlight: | pneumatic equipment components,pneumatic system components |

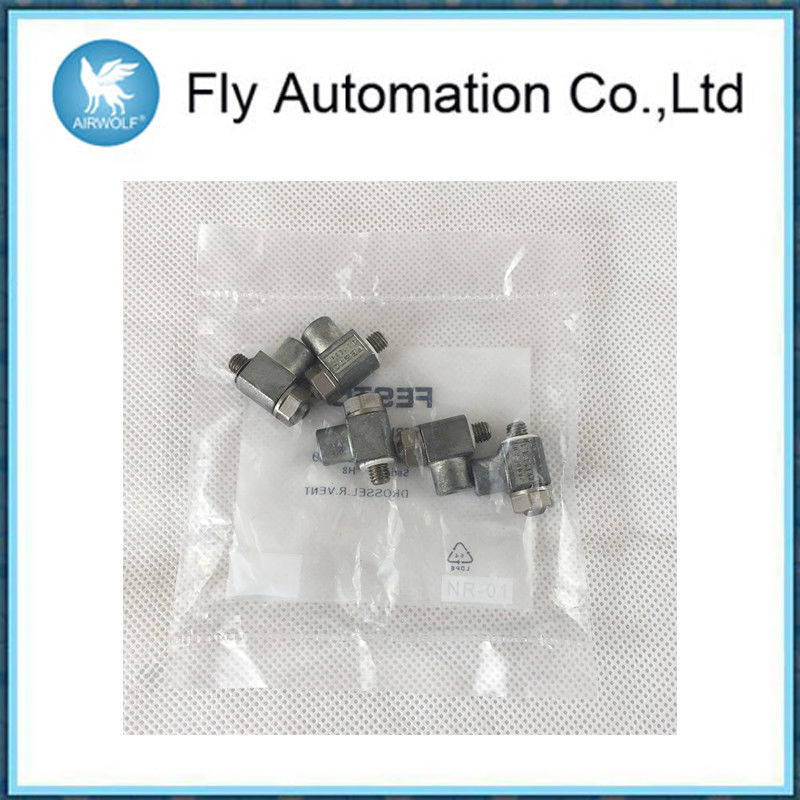

Festo GRLA Series Exhaust Air Flow Control Valves GRLA-M5-B 151160 Female Thread One Way Flow Control Valves
Feature
Flow control or one-way flow control valves regulate the piston speed of pneumatic drives during advance and return strokes. This is done through suitable restriction of the flow rate of compressed air in exhaust air or supply air direction.
General technical data – GRLA | ||||||||||
Valve function | Exhaust air one-way flow control function | |||||||||
Connection type | Female thread | Barbed connector | ||||||||
Pneumatic connection 2 | M5 | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | M5 | G1/8 | G1/4 | |
Adjustment component | Slotted head screw | |||||||||
Knurled screw | ||||||||||
Type of mounting | Screw-in | |||||||||
Mounting position | Any | |||||||||
Max. tightening torque [Nm] | 1.5 | 6 | 11 | 20 | 40 | 60 | 1.5 | 6 | 11 |
Type | Connection D |
Nominal size [mm] |
B | H | H1 | L | L1 | L2 | |
Slotted head screw |
Knurled screw |
||||||||
GRL…-M5 | M5 | 2 | 10-0.15 | 17.5 | 12.5 | ~17.6 | ~27.3 | 4.0 ±0.3 | ~7.1 |
GRL…-1/8 | G1/8 | 4 | 16-0.15 | 28 | 20 | ~25.2 | ~38.6 | 5.3 +0.45/–0.35 | ~10.3 |
GRL…-1/4 | G1/4 | 6 | 20-0.2 | 36 | 26 | ~30.8 | ~54.8 | 8.2 +0.45/–0.35 | ~13.2 |
GRLA-3/8 | G3/8 | 8.5 | 25-0.2 | 41 | 28.5 | ~37.2 | – | 8.8 +0.45/–0.35 | ~15.5 |
GRLA-1/2 | G1/2 | 10.6 | 32-0.2 | 53 | 37 | ~48.6 | – | 12.8 ±0.45 | ~18.9 |
GRLA-3/4 | G3/4 | 14 | 41-0.3 | 64 | 43.5 | ~60.2 | – | 13.5 ±0.5 | ~24.5 |
Competitive Advantage:
Our product features: | Our Services Guarantee: |
1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
3) Professional Packaging, | 3) Registration support. |
4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Quality Standards :
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections
Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
