| Liandong-U-Gu 17-2#, Shengyuan Road 1#, Jiangkou Street, Fenghua District, Ningbo City, Zhejiang Province, China | airwolf@flyautomatic.com |
 |
| Place of Origin: | China |
| Brand Name: | FESTO |

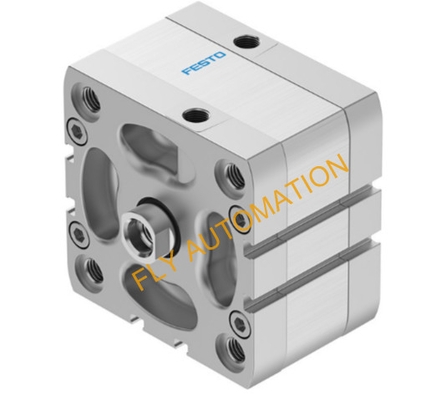

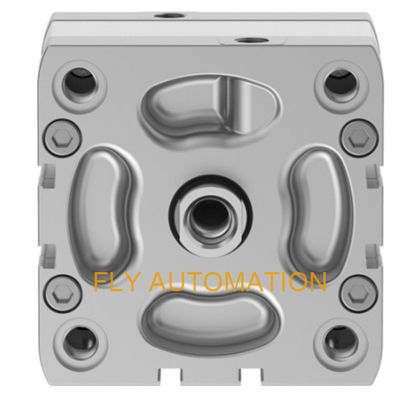

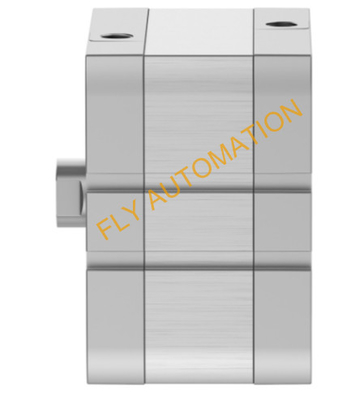

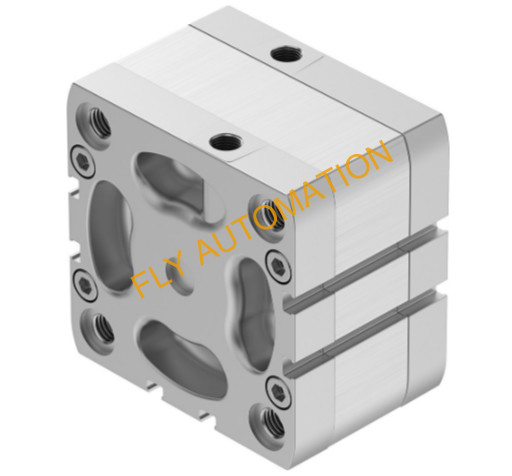

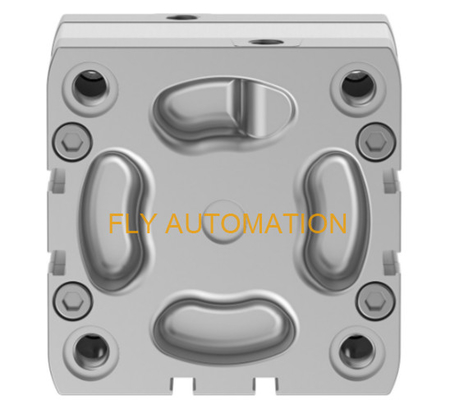

| Model Number: | ADN-80-10-I-P-A |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | EXW USD80-90 |
| Packaging Details: | plastic bag, carton，OPP bag |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 50 pcs per month |
| Brand: | FESTO | Part No: | 536363 |
|---|---|---|---|
| GTIN: | 4052568171544 | Type: | ADN-80-10-I-P-A |
| Weight: | 1200g | Note On Materials: | RoHS-compliant |
About product
1.No adjustment required Reduce noise.
2.Easy installation Greater load Higher speed.
3.Integrated buffer pad in the body is used to absorb residual volume, which is convenient for high-speed and machine circulation, and has more reliable performance.
4.Optimized manufacturing process, long service life.
5.It has unusual cushioning characteristics and minimal friction coefficient.
Technical Data
| Stroke | 10mm |
| Piston diameter | 80mm |
| Piston rod thread | M12 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting position | optional |
| Conforms to standard | ISO 21287 |
| Piston-rod end | Female thread |
| Position detection | Via proximity switch |
| Symbol | 00991217 |
| Variants | Piston rod at one end |
| Mode of operation | Double-acting |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C-80°C |
| Basic weight for 0 mm stroke | 1121g |
| Additional weight per 10 mm stroke | 79g |
| Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant |
| Material cover | Aluminium Anodised |
| Material seals | TPE-U(PUR) |
| Material piston rod | High-alloy steel |
| Material cylinder barrel | Wrought aluminium alloy Smooth anodised |
Another stroke as below
| Type | Order no | GTIN | Price |
| ADN-80-10-I-P-A | 536363 | 4052568171544 | USD80-90 |
| ADN-80-15-I-P-A | 536364 | 4052568171551 | USD80-90 |
| ADN-80-20-I-P-A | 536365 | 4052568171568 | USD80-90 |
| ADN-80-25-I-P-A | 536366 | 4052568171575 | USD80-90 |
| ADN-80-30-I-P-A | 536367 | 4052568171582 | USD80-90 |
| ADN-80-40-I-P-A | 536368 | 4052568171599 | USD80-90 |
| ADN-80-50-I-P-A | 536369 | 4052568171605 | USD80-90 |
| ADN-80-60-I-P-A | 536370 | 4052568171612 | USD80-90 |
| ADN-80-80-I-P-A | 536371 | 4052568171629 | USD80-90 |
With the Festo Core Range, we have selected the most important products and functions from our broad product catalogue, and added the quickest delivery.
The Core Range off ers you the best value for your automation tasks.
There are so many kinds. Hurry to call me!
Contact Person: Jaren
Tel: 0086-15257858856
Fax: 86-152-57858856
